20 WATT SOLID STATE LASER KIT for SHARK CNCs

Next Wave CNC’s 20W solid-state laser kit for Shark CNCs is a versatile accessory for laser cutting or engraving.

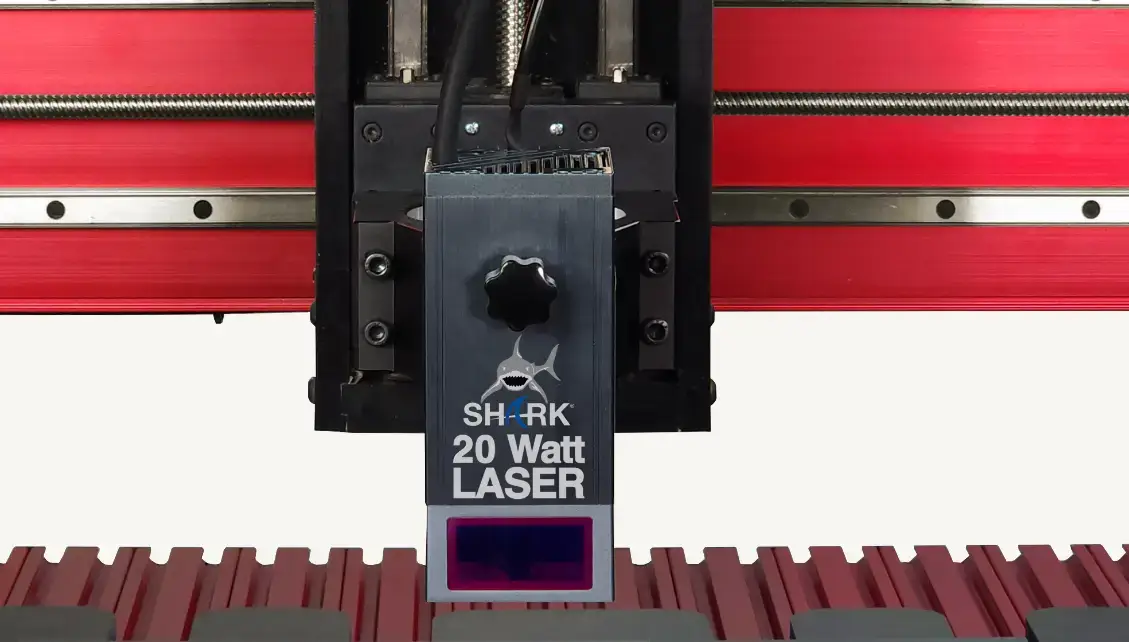

Installed with the included mounting bracket and the latest firmware, the 20-Watt Laser System allows you to cut or engrave by selecting an appropriate toolpath.

The 20W laser module for Shark CNC which enables you to create detailed photographic images, engravings, and lettering.  You can burn various materials including wood, acrylic, leather, foam, or any craft suitable for woodburning.  Also possible to cut some thin materials.

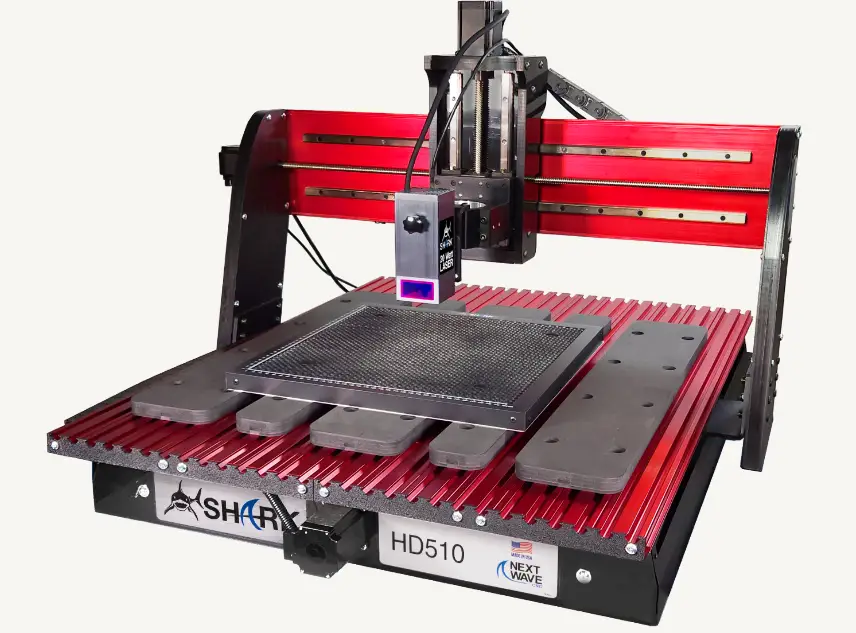

The 20W Laser System is compatible with all Next Wave CNC HD5xx® machines. The 20W laser engraver is fully compatible with V-Carve and Ready2Raster by selecting appropriate tool paths.

Specifications:

• Quad-core Diode Laser
• .25″ Solid Wood Cutting in One-PASS @ 5″ipm
• 3mm Tinted Acrylic Cutting in One-PASS – Clear Acrylic requires masking
• Automatic offset allowing CNC carving & laser combination projects
• Fully integrated controller
• 1024 points of grayscale
• Adjustable cradle mount for HD5xx Shark CNC’s
• The kit is designed to fully comply with high-powered Class 4 laser regulations.
• Keyed switch that enables the laser, with Multiple safety interlocks.

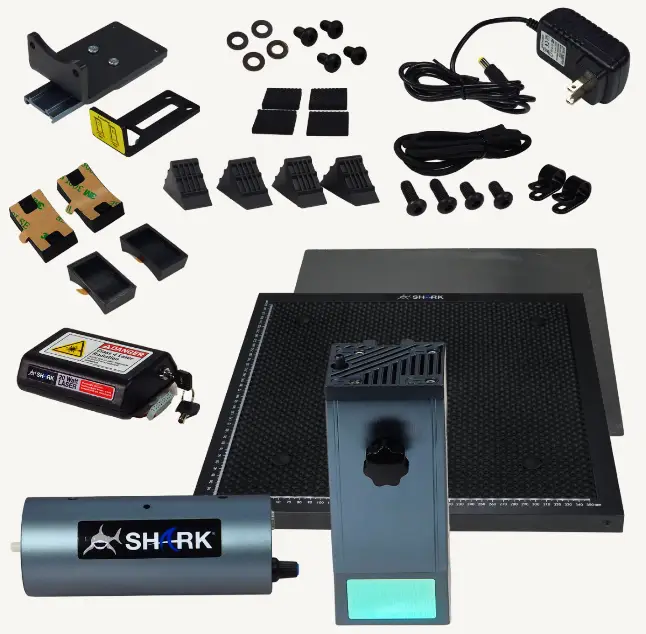

Included:

• Built-in Powerful air assist kit
• Safety Goggles for 445nm Lasers
• Power fault protection preventing the beam from activating after a power failure.
• U.S. based technical support for the original owner.
• 1 Year Warranty

20w Laser Manual

CURRENTLY, THE 20-WATT LASER IS NOT COMPATIBLE WITH CANADIAN CONTROLLERS
