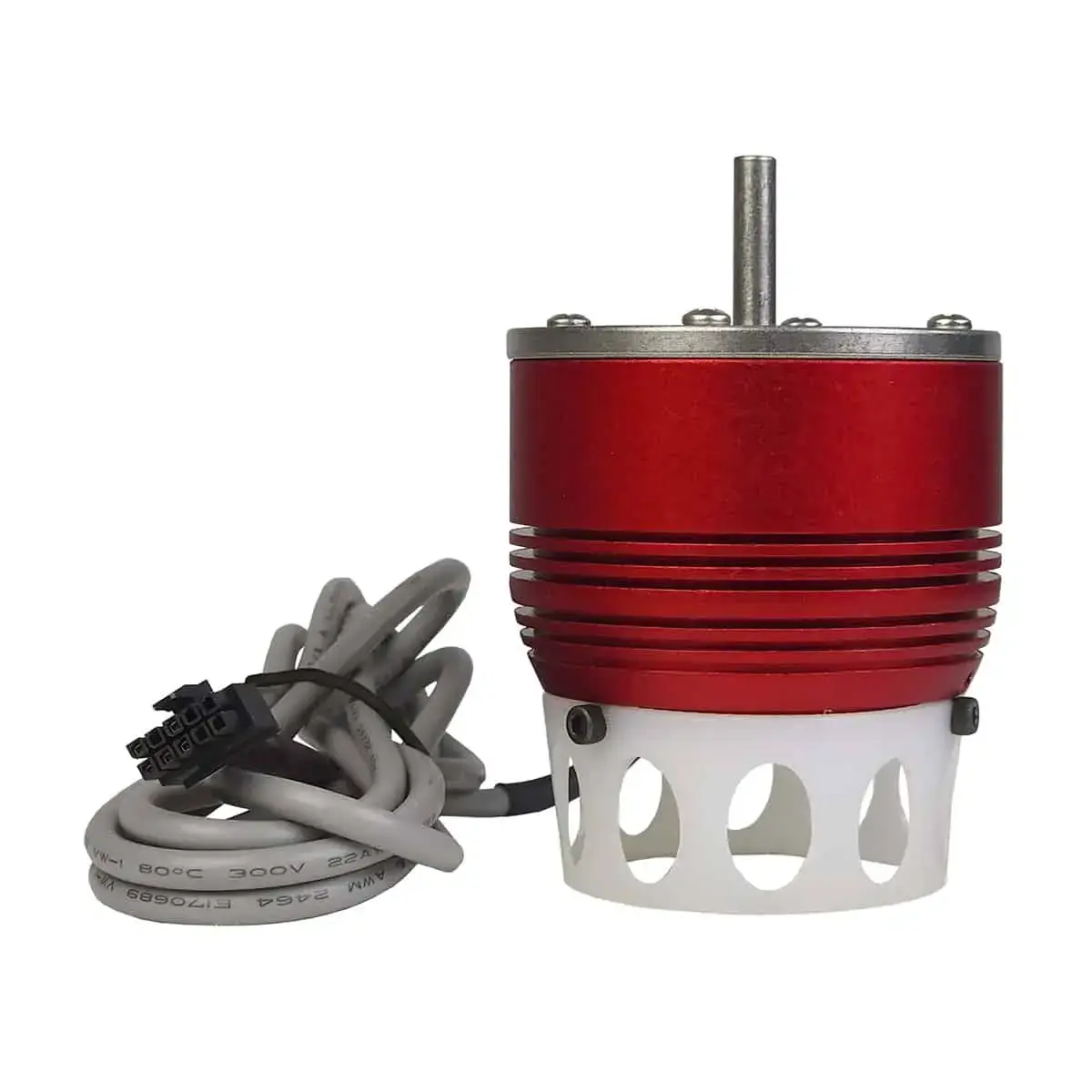

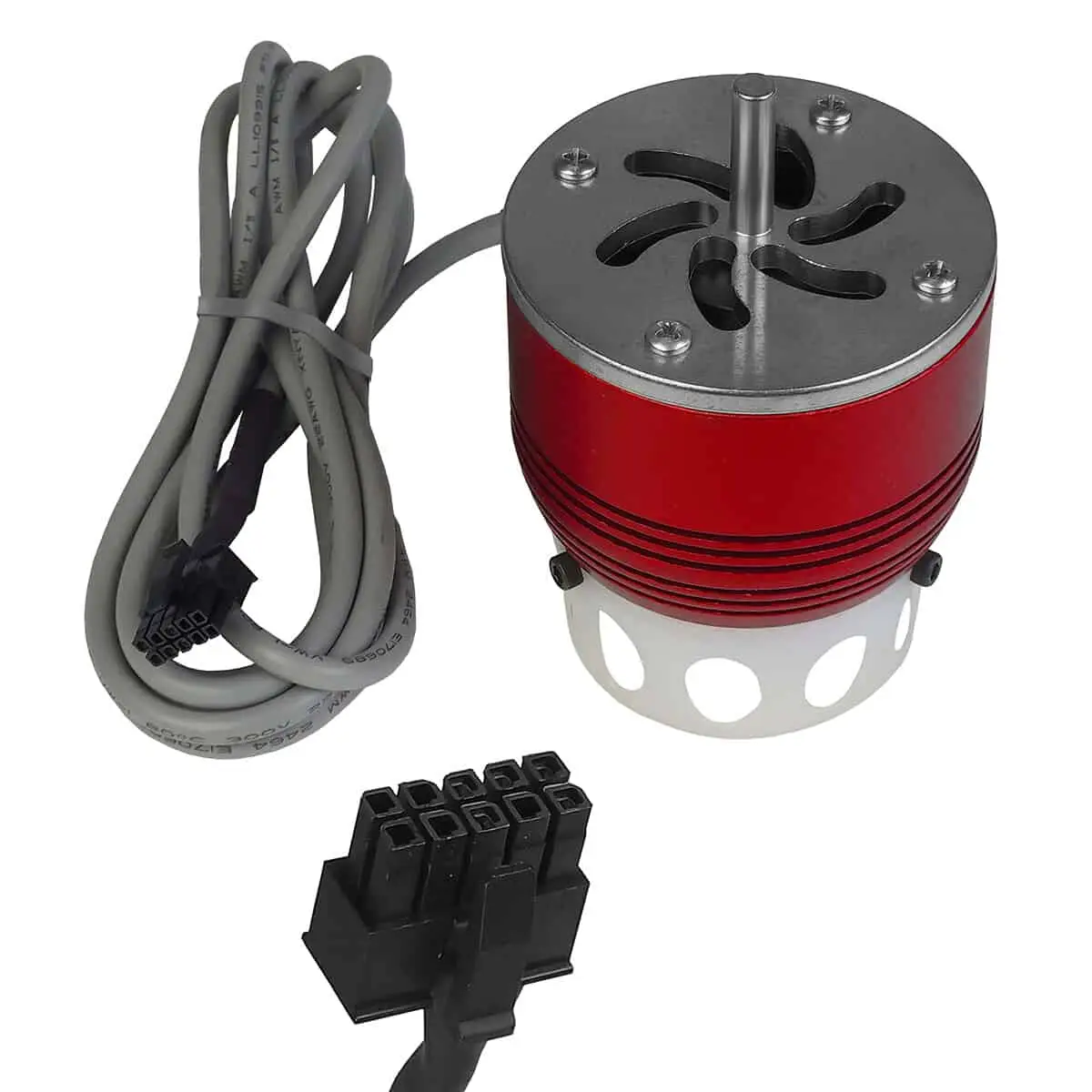

7 WATT SOLID STATE LASER MODULE for SHARK CNCs

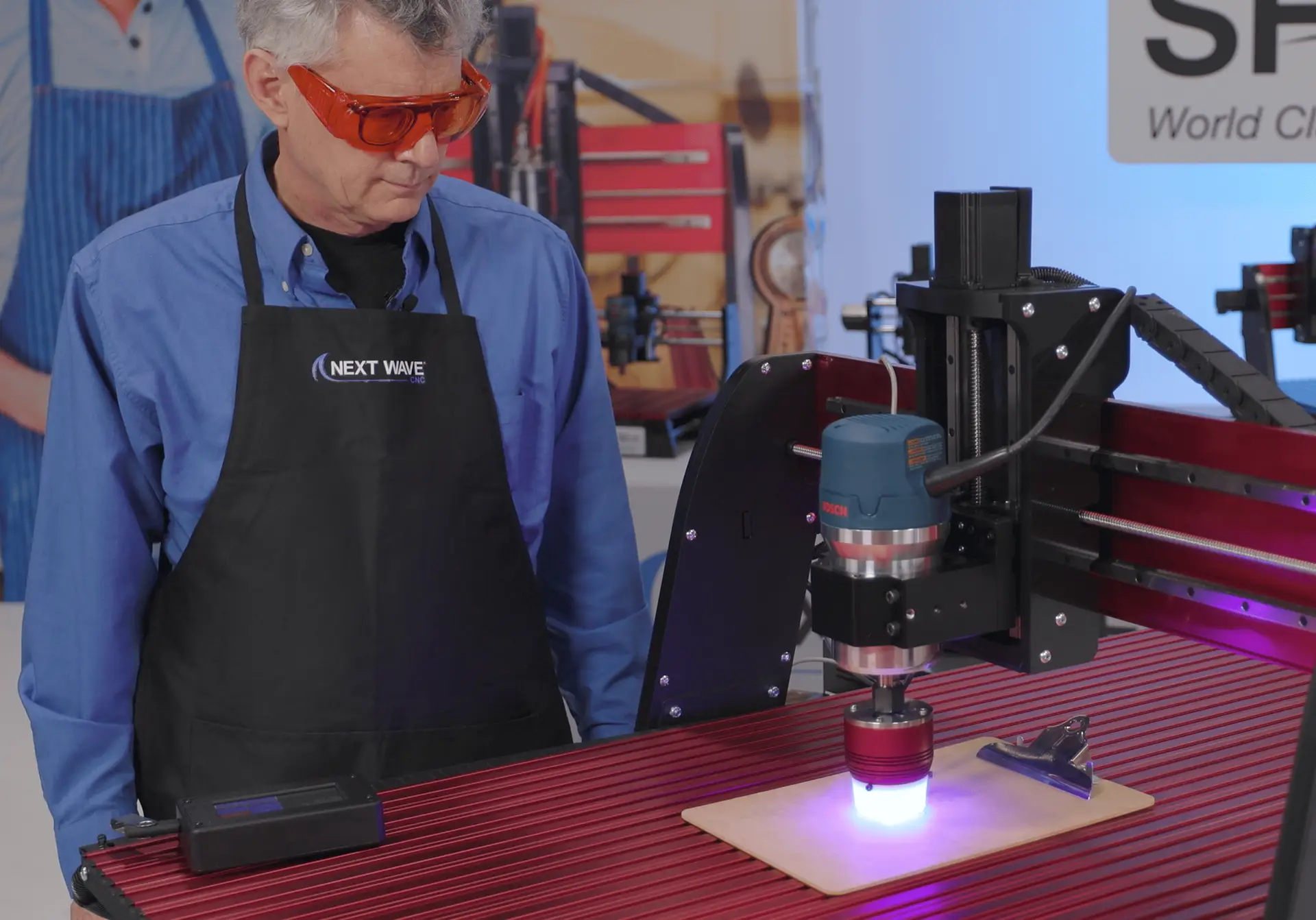

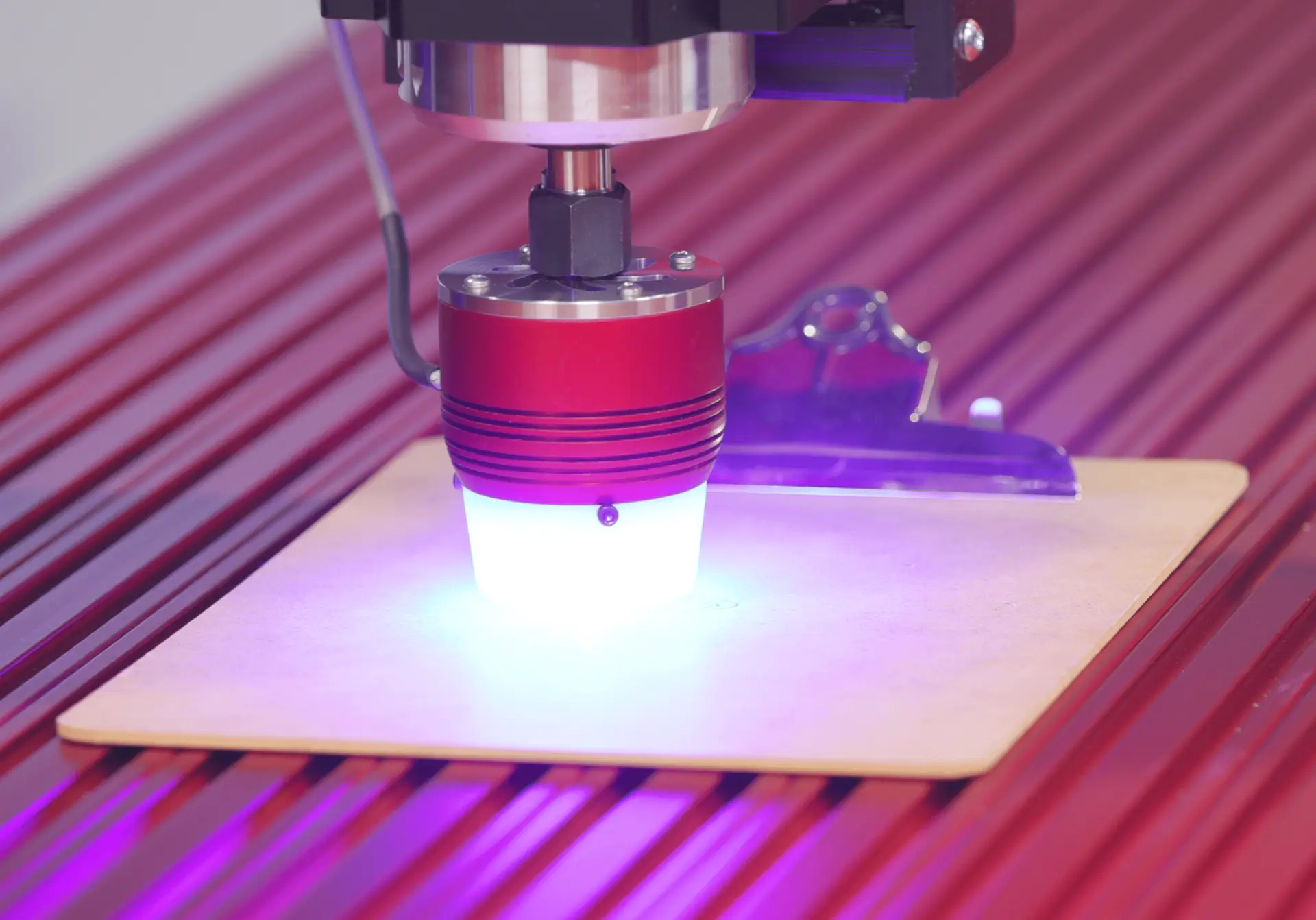

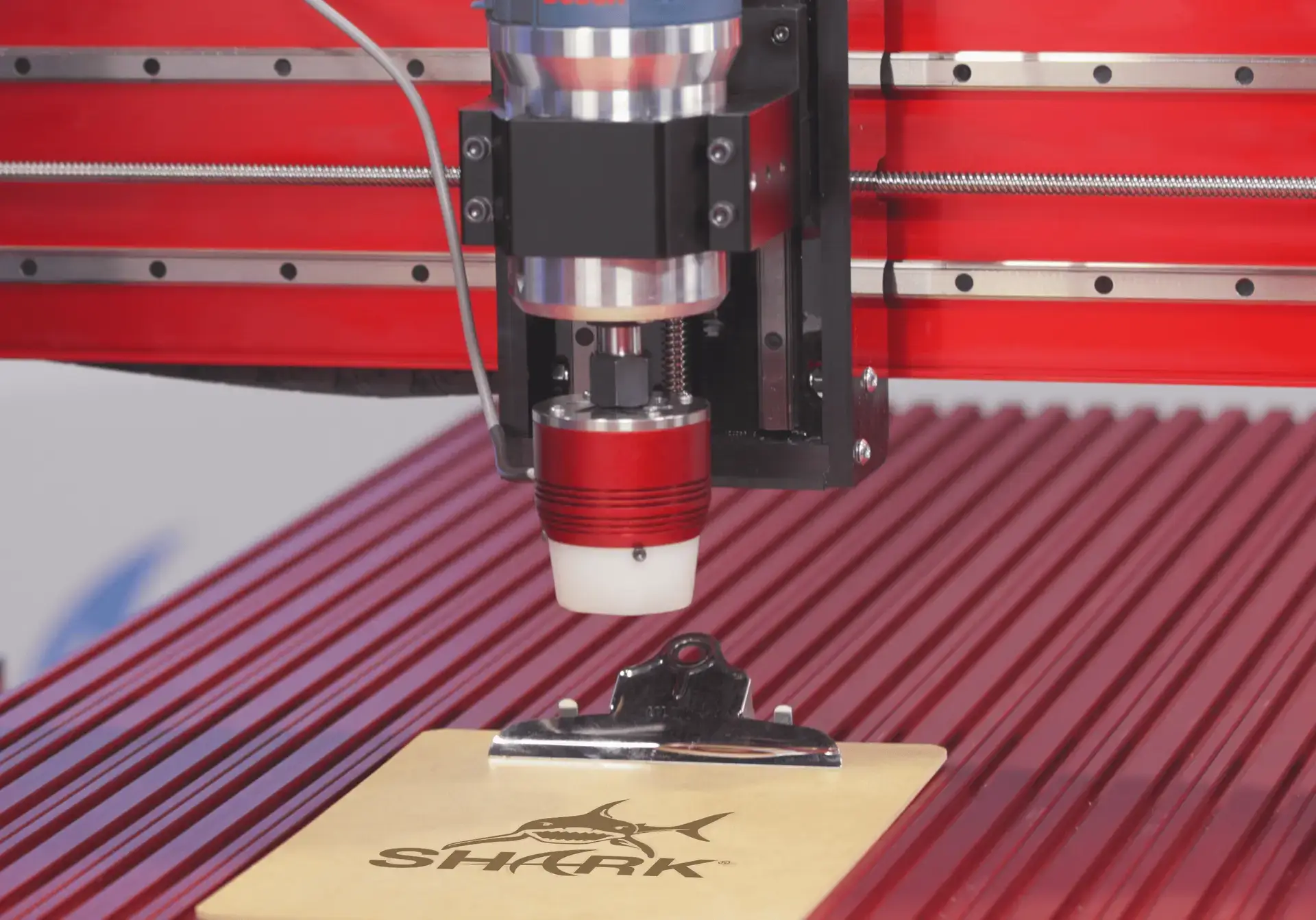

Next Wave CNC’s 7W solid-state laser kit for Shark CNCs is a versatile accessory for laser cutting or engraving.  This tool is easy to connect to your CNC machine mounting in the collet of your router, all necessary components are included.

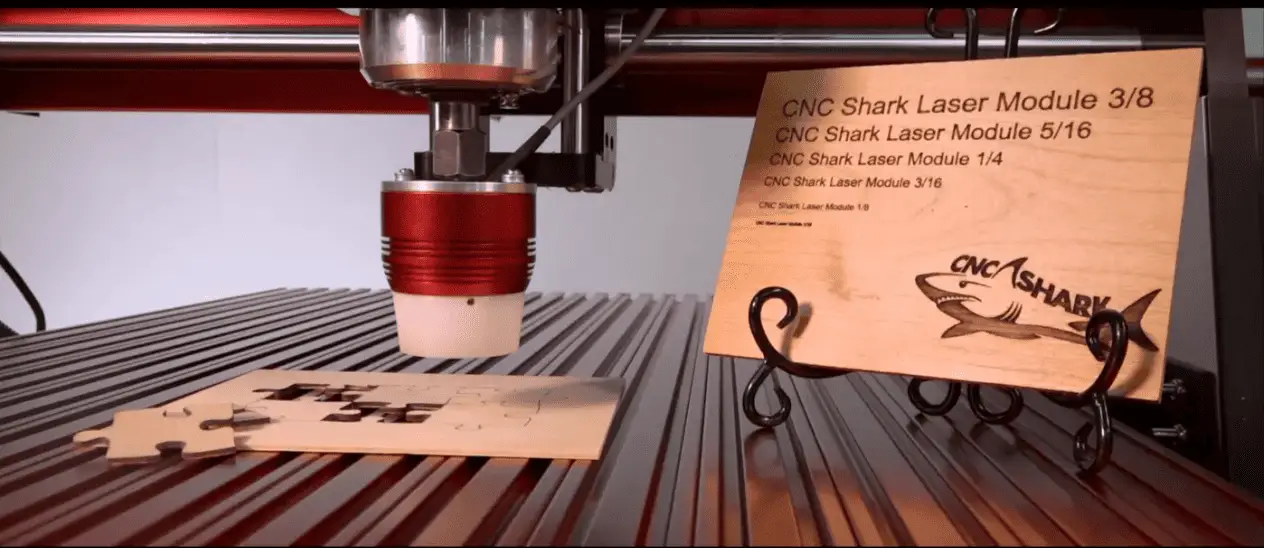

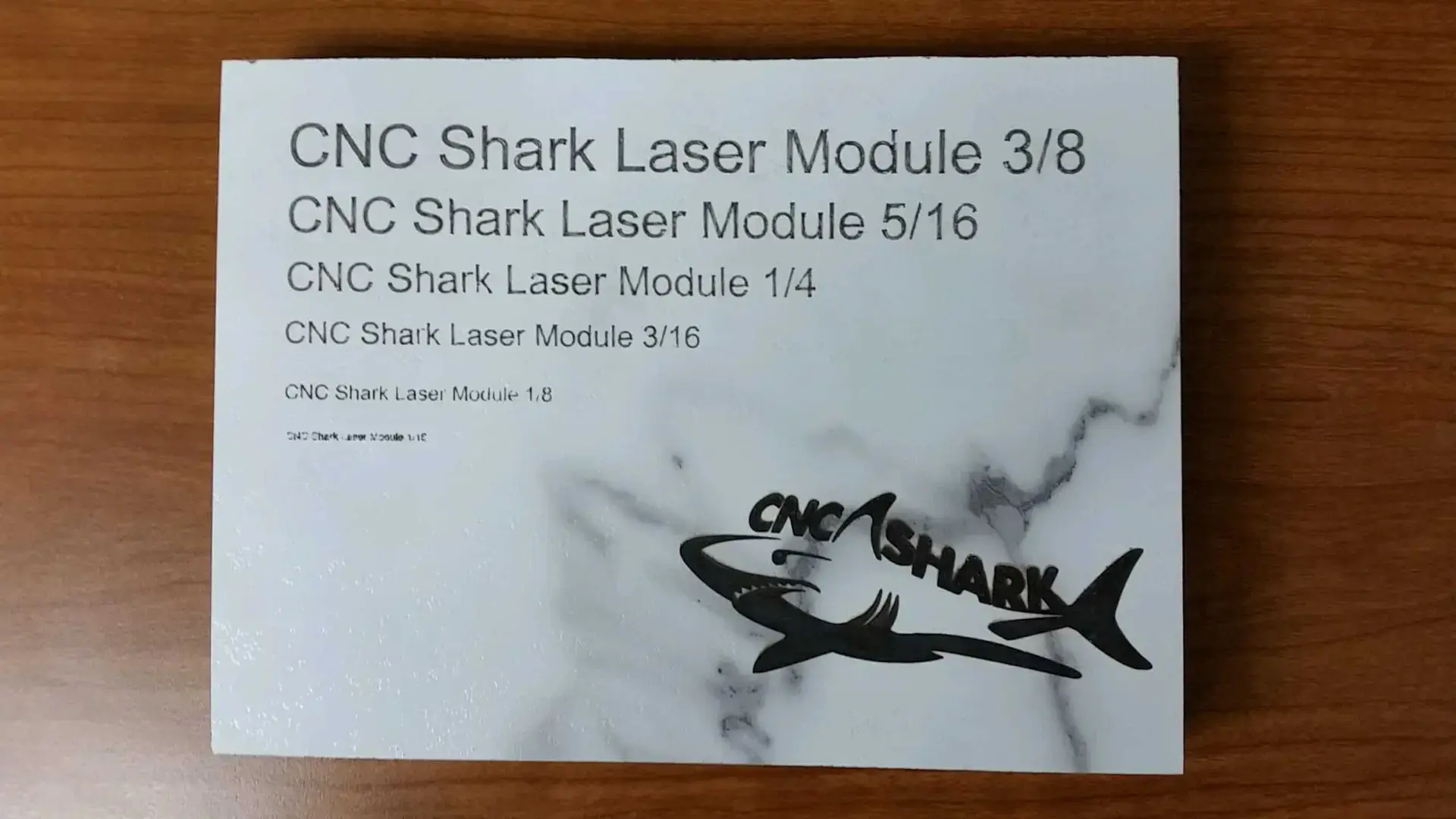

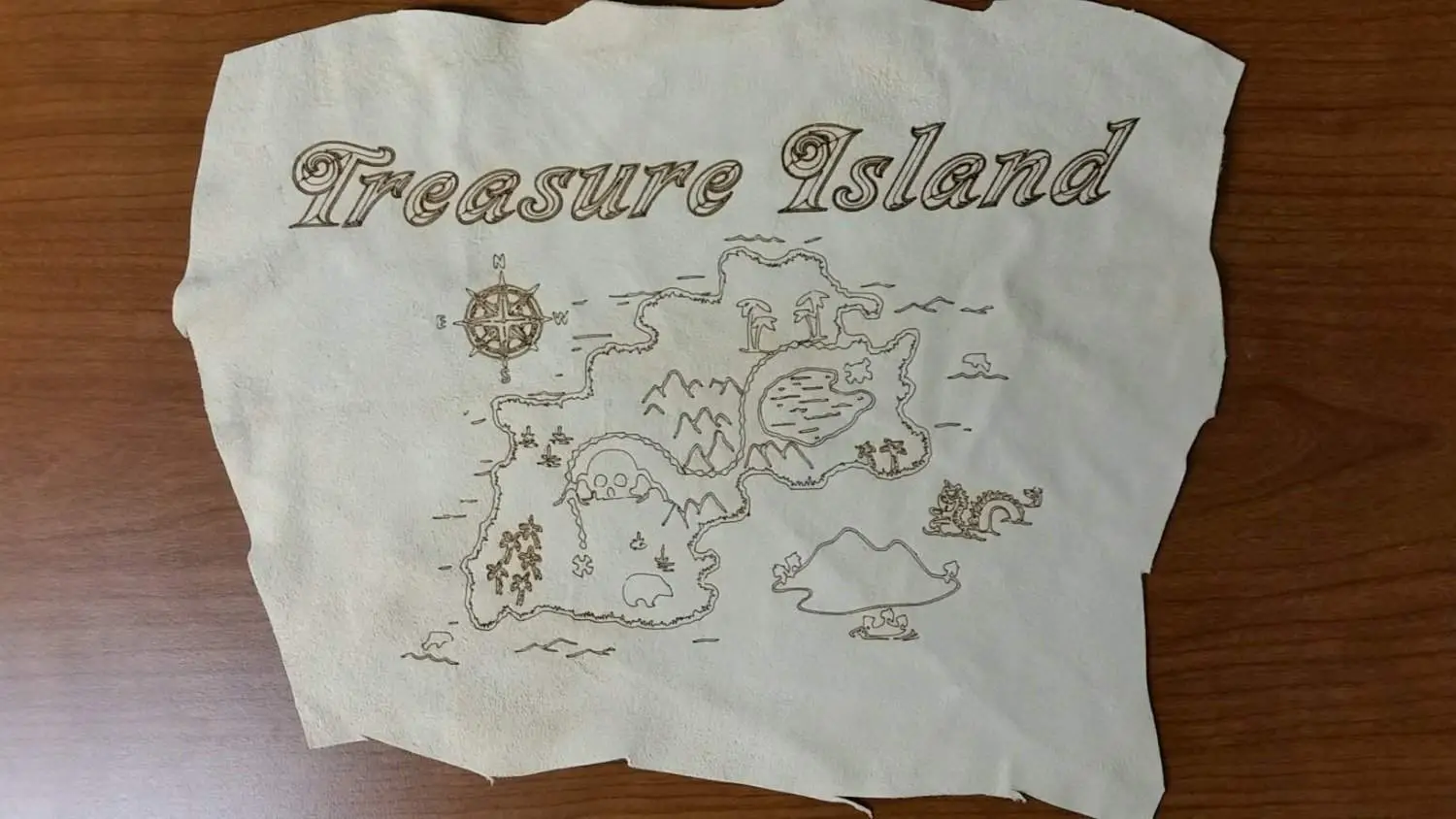

The 7W laser module for Shark CNC enables you to create detailed photographic images, engravings, and lettering.  You can burn various materials including wood, acrylic, leather, foam, or any craft suitable for woodburning.  Also possible to cut some thin materials.

The kit is designed to fully comply with high-powered Class 4 laser regulations.

Works with all Next Wave CNC SD or HD models.  This also works with CNC Piranha FX, Piranha XL, Pendant controlled machines, and Shark II.   This can be adapted to older CNC SHARKS (HD3 and previous) with the Laser Interface item number 20015 purchased separately.

The Next Wave CNC Shark 7W Laser is made in the USA and includes USA Based Technical Support for the Original Owner.

Specifications:

• High power 3A current source.
• 1000 levels of Gray will Generate true Raster images
• Soft start for diode protection
• Integrated cooling fan
• True PWM control for smoother grayscale images
• LED status lights for input laser enabled and laser on
• ESD protection and Thermal shutdown control
• Over burn compensation control
• Made in USA

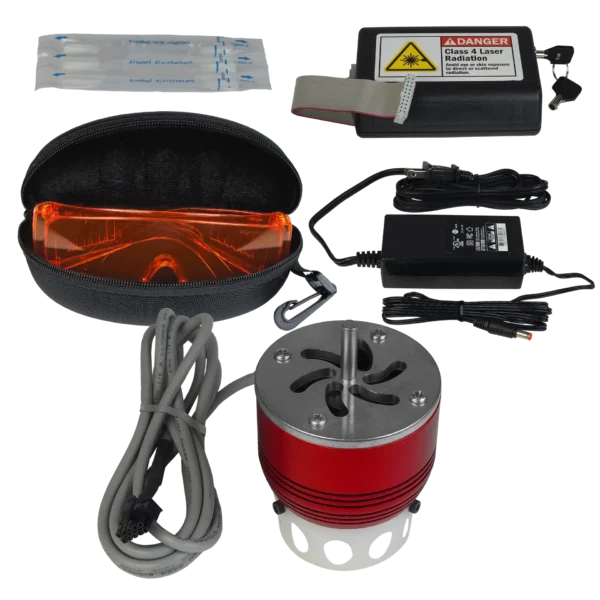

Included:

• Safety Goggles for 445nm Lasers
• Digitally isolated control input

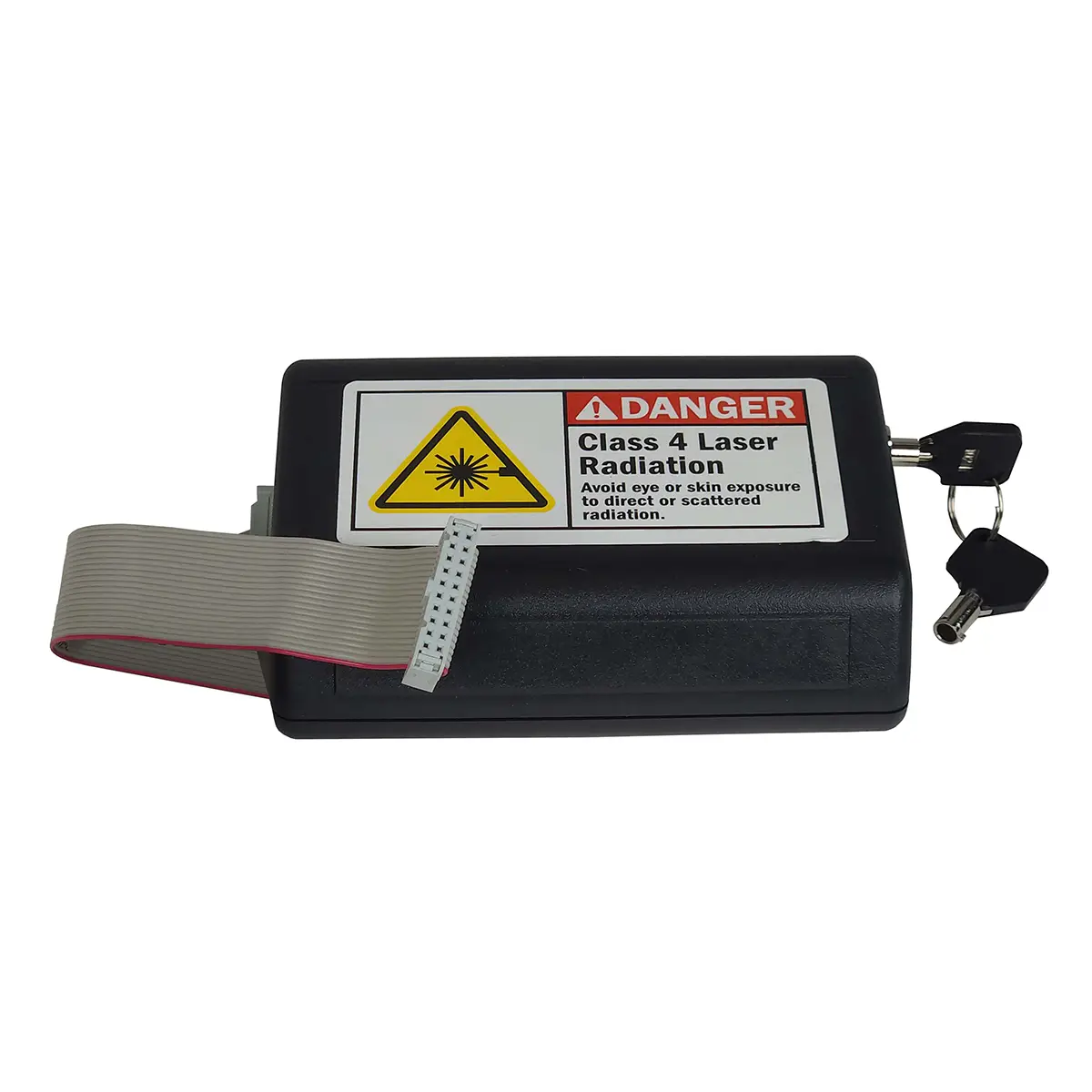

• Keyed switch that enables the laser, also multiple safety interlocks.
• Power fault protection preventing the beam from activating after a power failure.
• Laser test functionality for easy and accurate laser positioning
• 1 Year Warranty

7w Laser Usage Info
