Sale!

8PC AMANA GENERAL PURPOSE ROUTER BIT SET – 1/4″ SHANK

$189.75

-

Share this product:

SKU 20089 Categories ,

Product Details

Brand: Amana

Ideal for creating many different projects! This set was designed for CNC profiling, 2D and 3D profiling, and carving in plastics, aluminum, and wood. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards. Includes a solid wood storage box with a plexiglass clear lid.

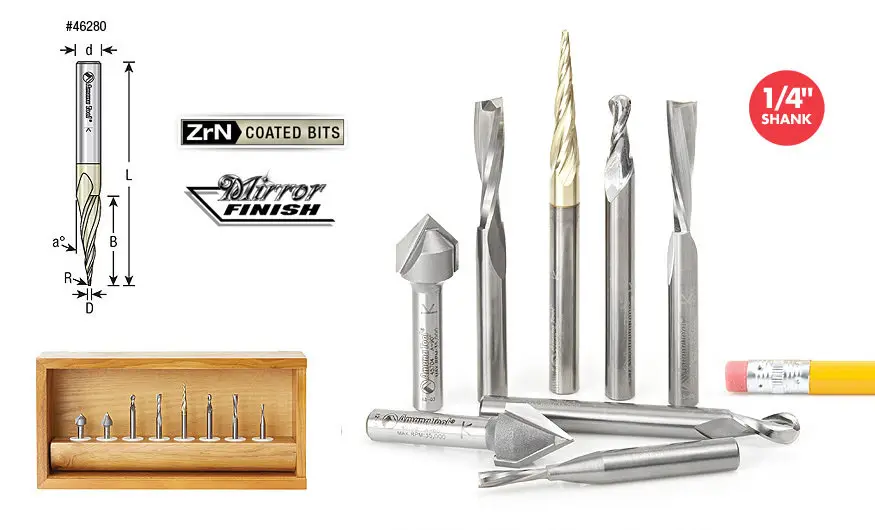

AMANA AMS-134 CNC Set Includes one each of the following:
TOOL NO. PRODUCT NAME QTY
46348 46348 Solid Carbide Spiral Plunge for Solid Wood 1/4 Dia x 1 Inch x 1/4 Shank Down-Cut 1
46341 46341 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/4 Inch Shank Down-Cut 1
46424 46424 Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
46426 46426 Solid Carbide Up-Cut Spiral Ball Nose 1/8 Radius x 1/4 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
46428 46428 Solid Carbide Up-Cut Spiral Ball Nose 1/8 Radius x 1/4 Dia x 1-1/8 x 1/4 Shank x 3 Inch Long x 2 Flute Router Bit 1
46282 46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit 1
45704 45704 Carbide Tipped V-Groove 90 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank 1
45705 45705 Carbide Tipped V-Groove 60 Deg x 1/2 Dia x 5/8 x 1/4 Inch Shank 1













a°





D





R





B





Flutes





d





L





Tool No.





90°





1/2









1/2





2





1/4





1-5/8





45704





60°





1/2









5/8





2





1/4





1-3/4





45705









1/4





1/8





1/2





2





1/4





2-1/2





46426









1/4





3/32





1/2





2





1/4





2-1/2





46424









1/4









1





2





1/4





2-1/2





46248









1/8









1/2





2





1/4





2





46341









1/4









1





2





1/4





2-1/2





46348





5.4°





1/16





1/32





1





4





1/4





3





46282























Max RPM Guide for Amana Tool® Router Bits





Do not exceed the maximum RPM shown for the particular tool you are using.
Max RPM for symmetrical tool only!

No exceda la maxima velocidad (RPM) indicada para cada herramienta.
Máximo RPM para la herramienta simétrica solamente!







































Router Bit Dimensions Max RPM
2″ (Less than 50) 28,000
2″ – 2-3/8″ (50-60mm) 22,000
2-3/8″ – 2-3/4″ (60-70mm) 19,000
2-3/4″ – 3-1/4″ (70-80mm) 16,000
3-1/4″ – 3-5/8″ (80-90mm) 15,000
3-5/8″ < (90-100mm) 13,000
