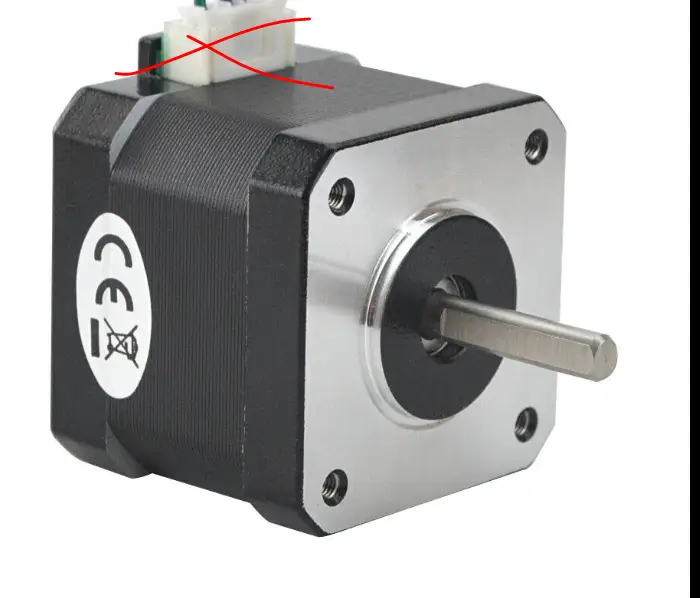

We had purchased these for a product we have now discontinued – wiring not included.

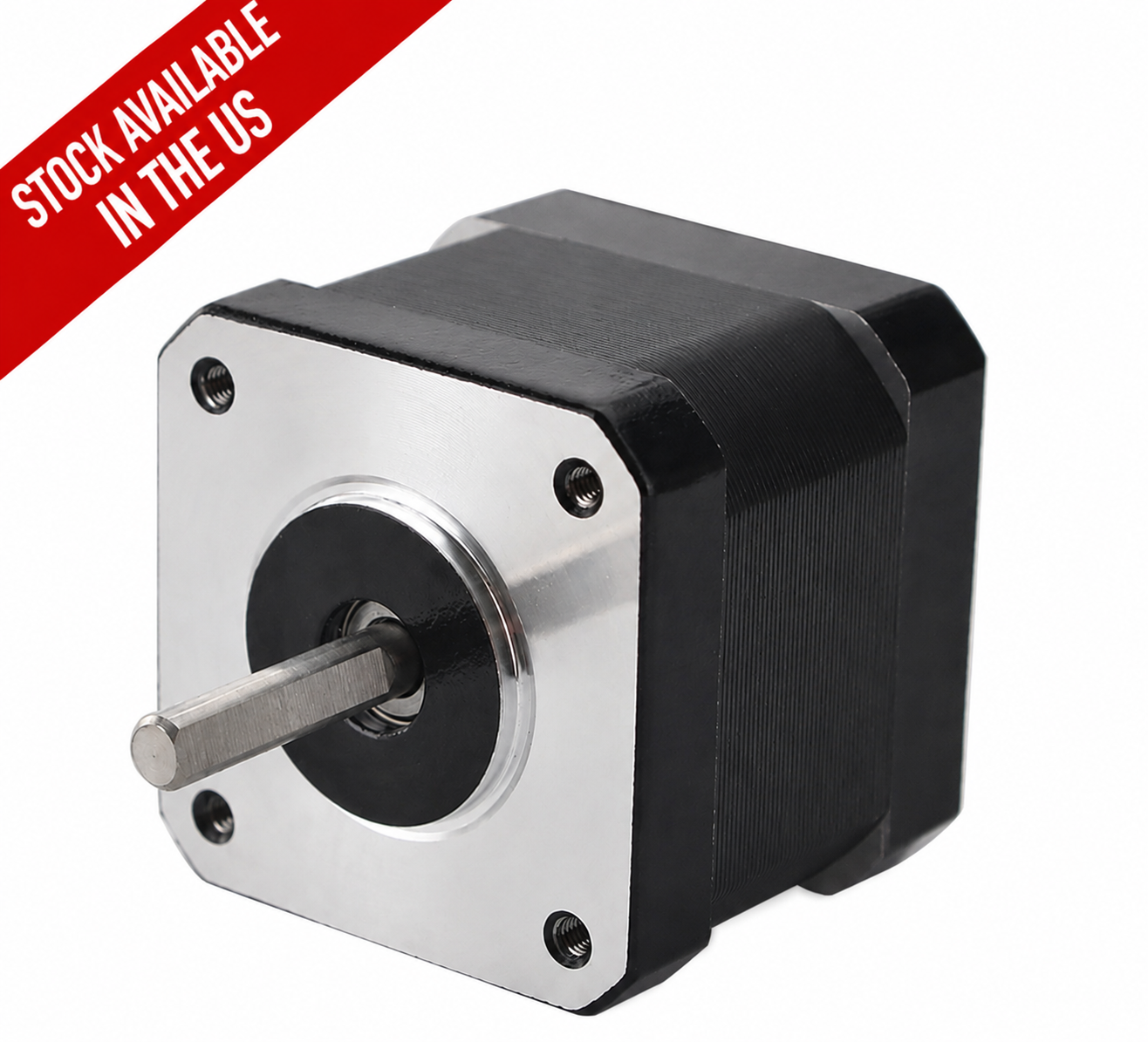

This is a full D-cut shaft Nema 17 stepper motors with step angle 1.8deg and size 42x42x37.5mm. It has 4 wires, each phase draws 1.7A, with holding torque 44Ncm (62.32oz.in).
Electrical Specification
Manufacturer Part Number: 17HS15-1704S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 44 Ncm(62.32oz.in)
Rated Current/phase: 1.7 A
Phase Resistance: 1.86 ohms
Inductance: 3.55 mH ± 20%(1KHz)
