SHARK CNC Mini 4th Axis Tabletop System

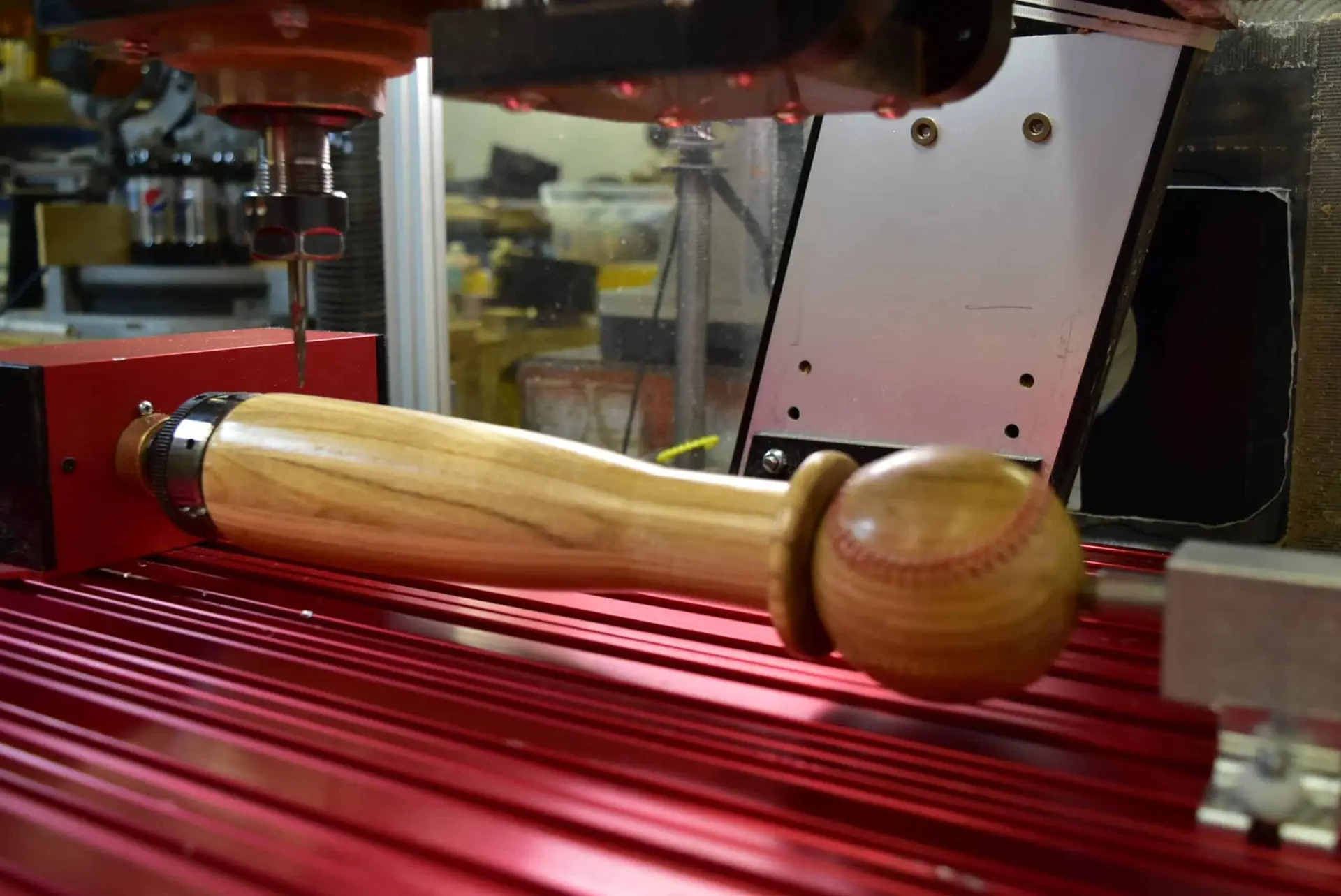

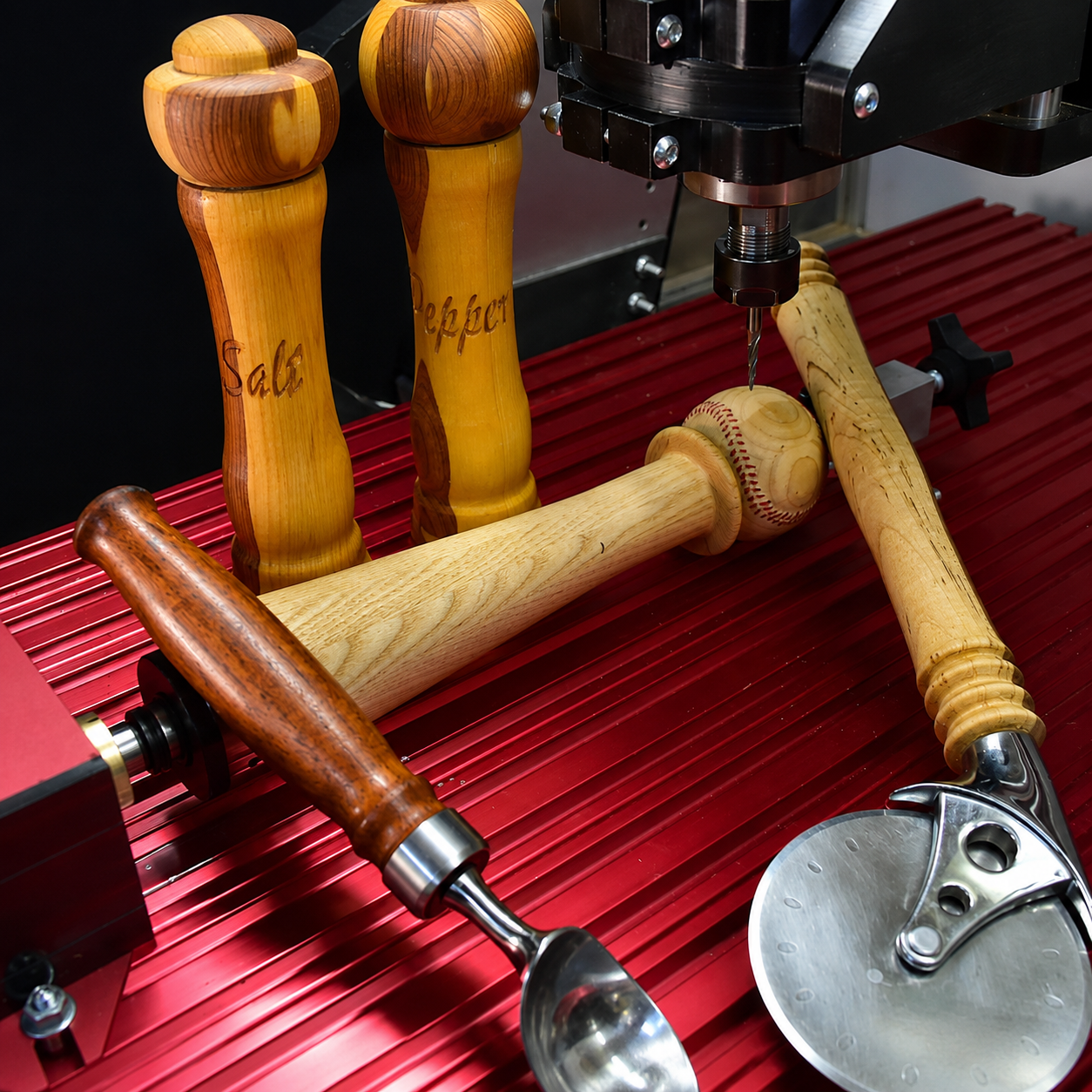

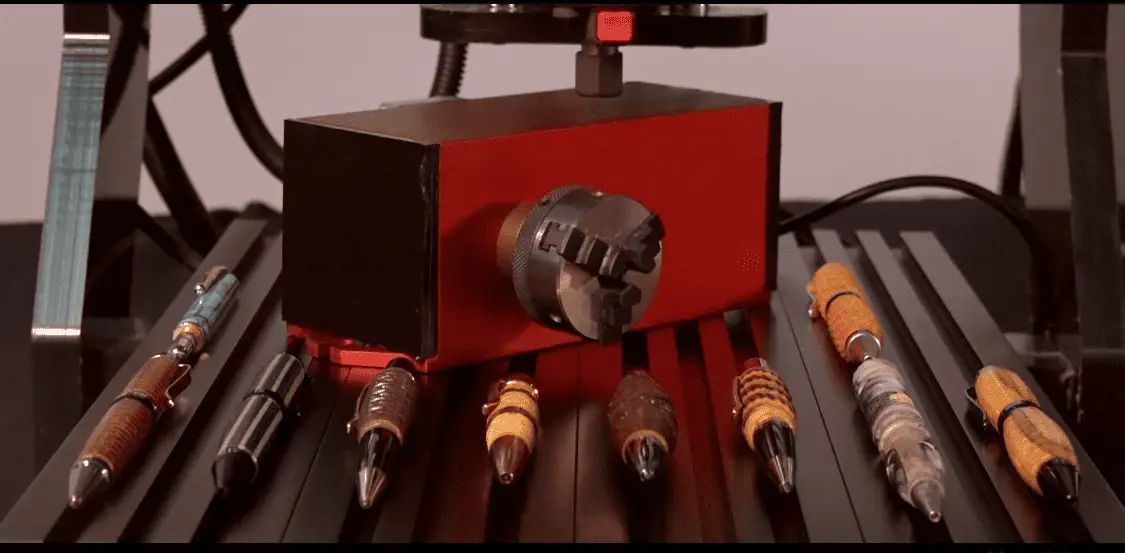

The Mini 4th Axis Kit gives you the ability to create precision-turned spindles, pens, or game pieces with intricate carvings and designs that will astonish your clients.

With virtually a plug-and-play design, the Mini 4th Axis Kit easily bolts to your SHARK CNC bed. The kit includes a removable mini 3 jaw chuck and features a standard #2 Morse taper shaft to allow you to use just about any of your standard lathe accessories.

Produced from extruded aluminum stock the mini 4th axis is built to last.

Specifications:

• Precision machined aluminum parts
• 2-7/8″ Diameter stock capacity.
• Plug and play design on Next Wave CNC Machines
• Can be positioned anywhere on the bed surface. Mounting hardware is included.
• Compatible with SD101’s Shark Wizard, Vectric VCarve Pro Software or Vectric VCarve Desktop Software or Aspire

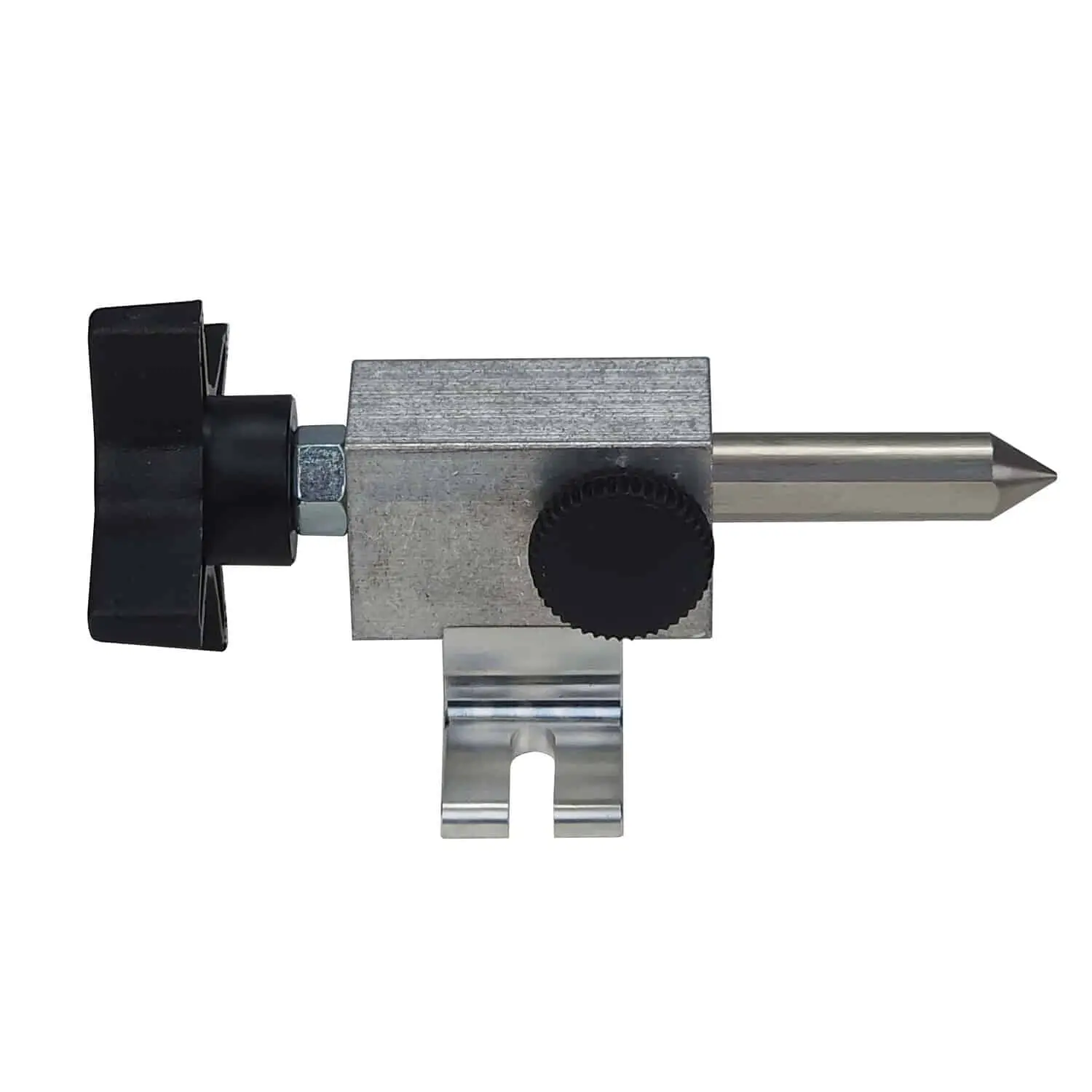

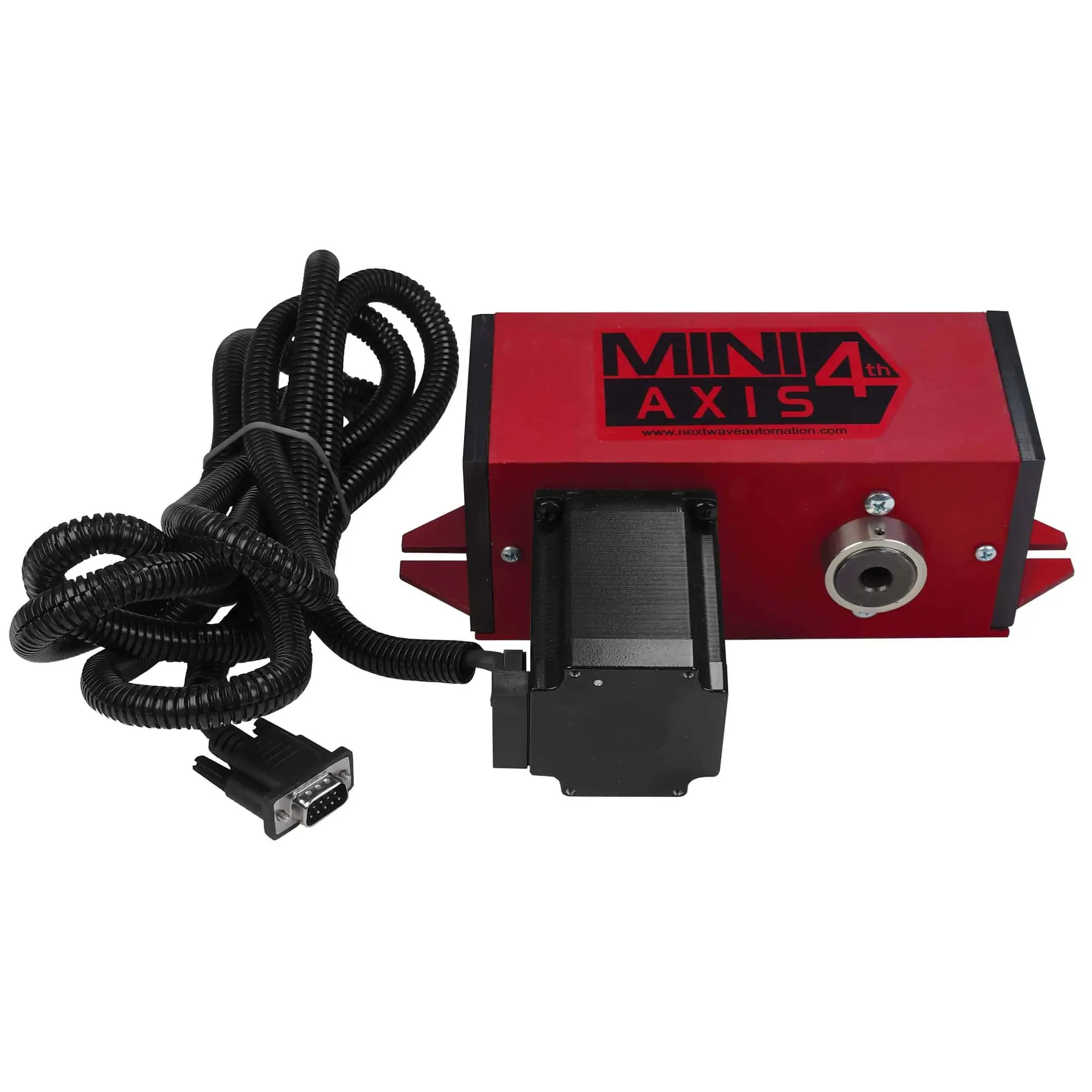

• Headstock is 5 3/4″ long with the chuck attached, which can be mounted on the table outside of the cut area. Tailstock is just under 3 1/2″ long, when mounted these will support a cut piece maximum length 3 1/2″ less than Y axis.
• Made in USA

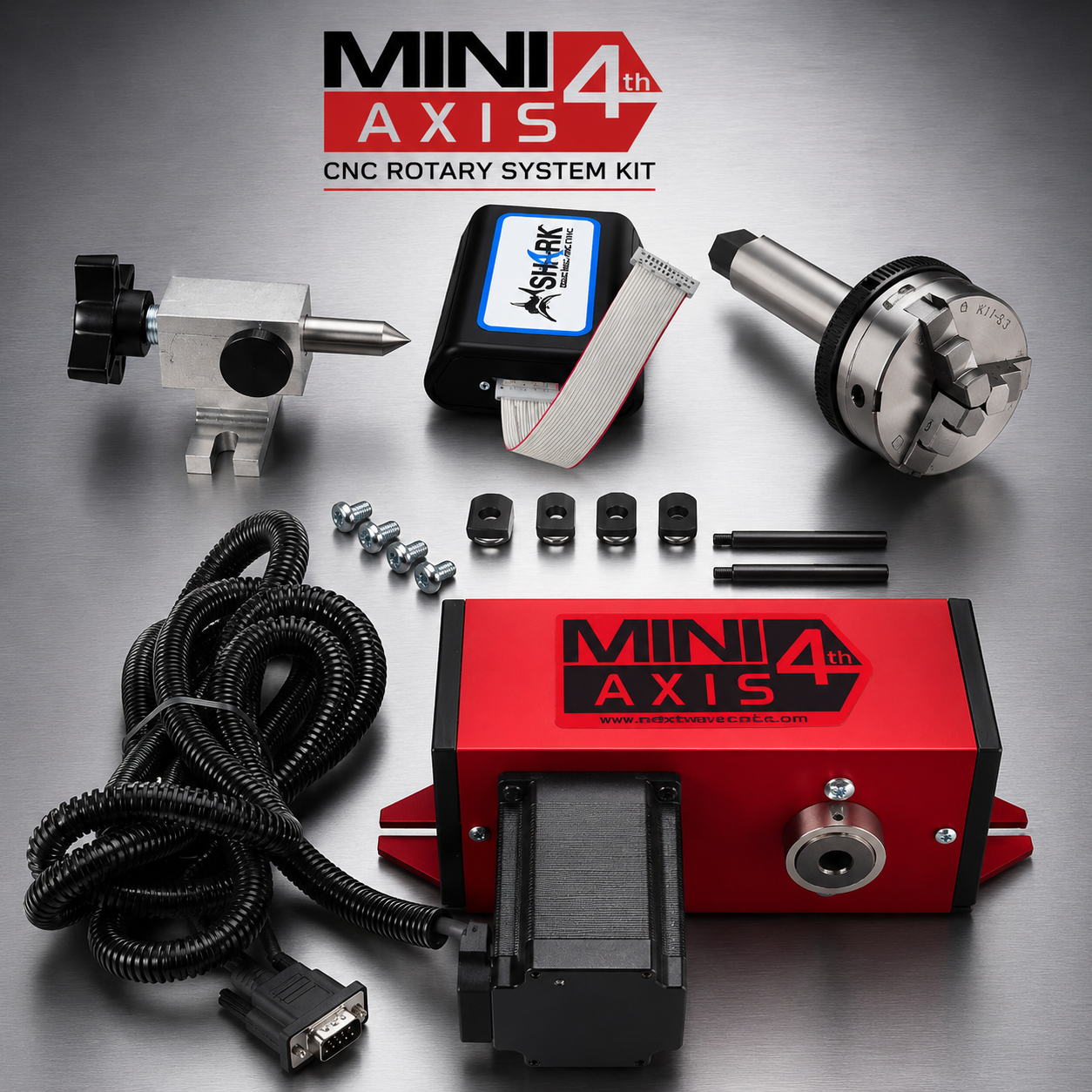

Included:

• Standard #2 Morse Taper

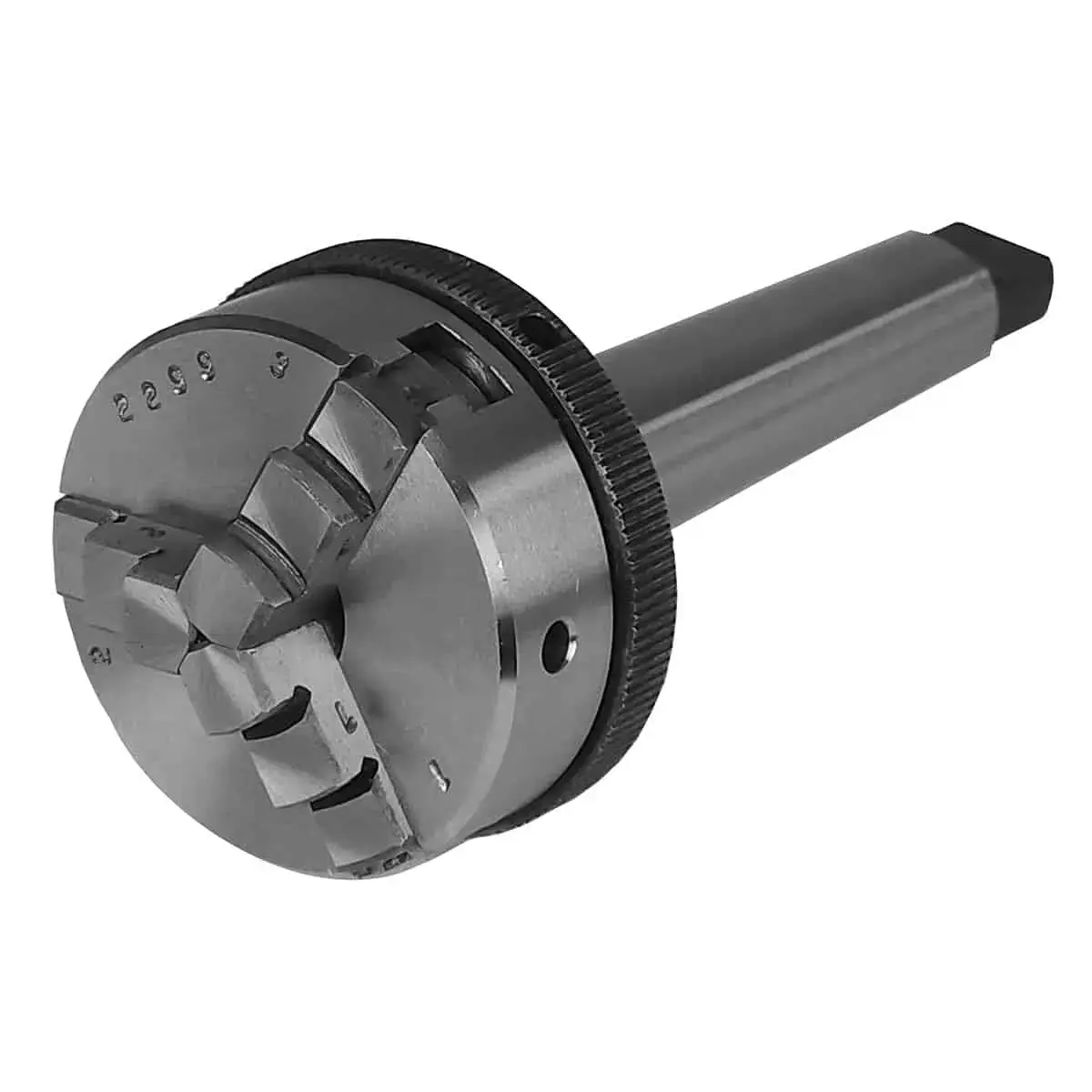

• 2″ Diameter Self-Centering 3-Jaw Micro Chuck
• U.S. based technical support to original owner
• 1 Year Warranty
