Shark HD510®



Includes FREE VCarve Desktop Software            Save $349

Share this product:

UPC: 853211006770 SKU 10022 Category Tags , , , , ,

Product Details

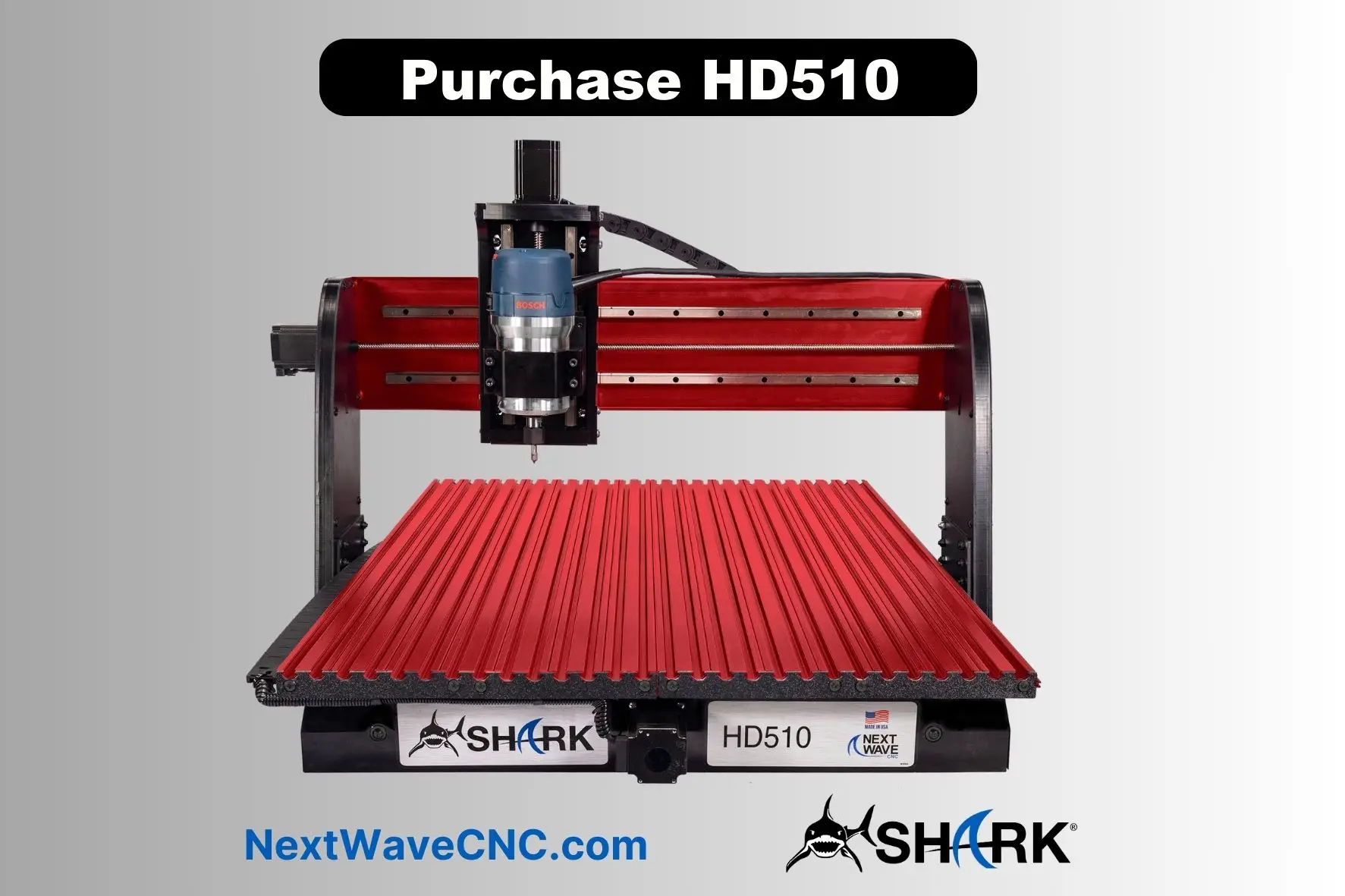

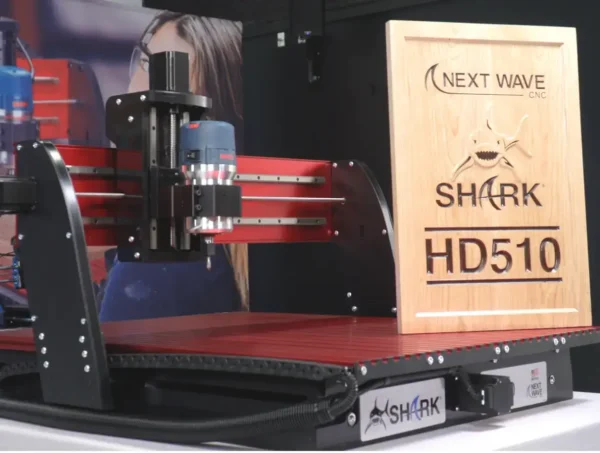

The Shark HD510 CNC routing table is a perfect piece of equipment for every type of woodworker, making it a must-have tool for any sized shop. The SHARK HD510 ® will handle all your machining needs, whether it’s in a home shop environment or on the production floor. Next Wave CNC’s SHARK HD510 ® comes standard with everything you need to quickly get it set up and running: the latest version of Vectric VCarve Desktop design software, a color pendant controller, 2 hold-down clamps, carbide V-bit, and Next Wave CNC’s exclusive, patented Virtual Zero Unlimited software. Use this software to make and carve unique wooden creations.

Built with industrial-grade components, the SHARK HD510 ® also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails, and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis. The Shark HD510 ® is the perfect tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics and is fully compatible with Next Wave Automation’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more. The Shark HD510 ® is made in the USA, comes with a full one-year warranty, and includes lifetime technical support so you can buy with confidence.

See your local Next Wave CNC distributor for a demo of the Shark HD510 so that you can determine if this is the ideal CNC machine for your woodworking shop.
  • Your purchase includes the latest edition of Vectric Desktop design software $349 Value
  • Virtual Zero Unlimited, $149 value, this patented Next Wave exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle.
  • Two-year warranty $499 retail value – we are so confident in our products we include an industry leading two year warranty, no need to purchase an extended warranty
  • Lifetime technical support
  • Vector Art 3D Sampler Pack. $99 retail value
  • Colored touch screen pendant controller
  • Ready2Control, a computer control panel software.
  • X & Y homing capability
  • Table dimensions: 28” x 36”
  • XYZ travel: 25” x 25” x 7”
  • Dimensions: 36-1/4” W x 38” L x 24-1/2” H
  • Linear guides and bearings on the gantry
  • Anti-backlash, wear-compensated leadscrews on all axis
  • Interlocking rigid aluminum table with virtually unlimited clamp positioning
  • Aluminum gantry backplate for heavy machining capabilities.
  • Aluminum router mounting clamp
  • Steel encased gantry legs for increased rigidity
  • Automatic router on and off control
  • USB interface
  • 110/115 V
  • Made in the USA
  • Compatible with the following routers (sold separately):
    • Bosch 1617 and 1618
    • Porter-Cable 890 Series
    • DeWalt 610, 616, 618
    • Any router with 3.5″ motor diameter

Contact Next Wave CNC to learn more about the Shark HD510 and our other options. To reach our team, please call (419) 318-4822 or email support@nextwavecnc.com.
