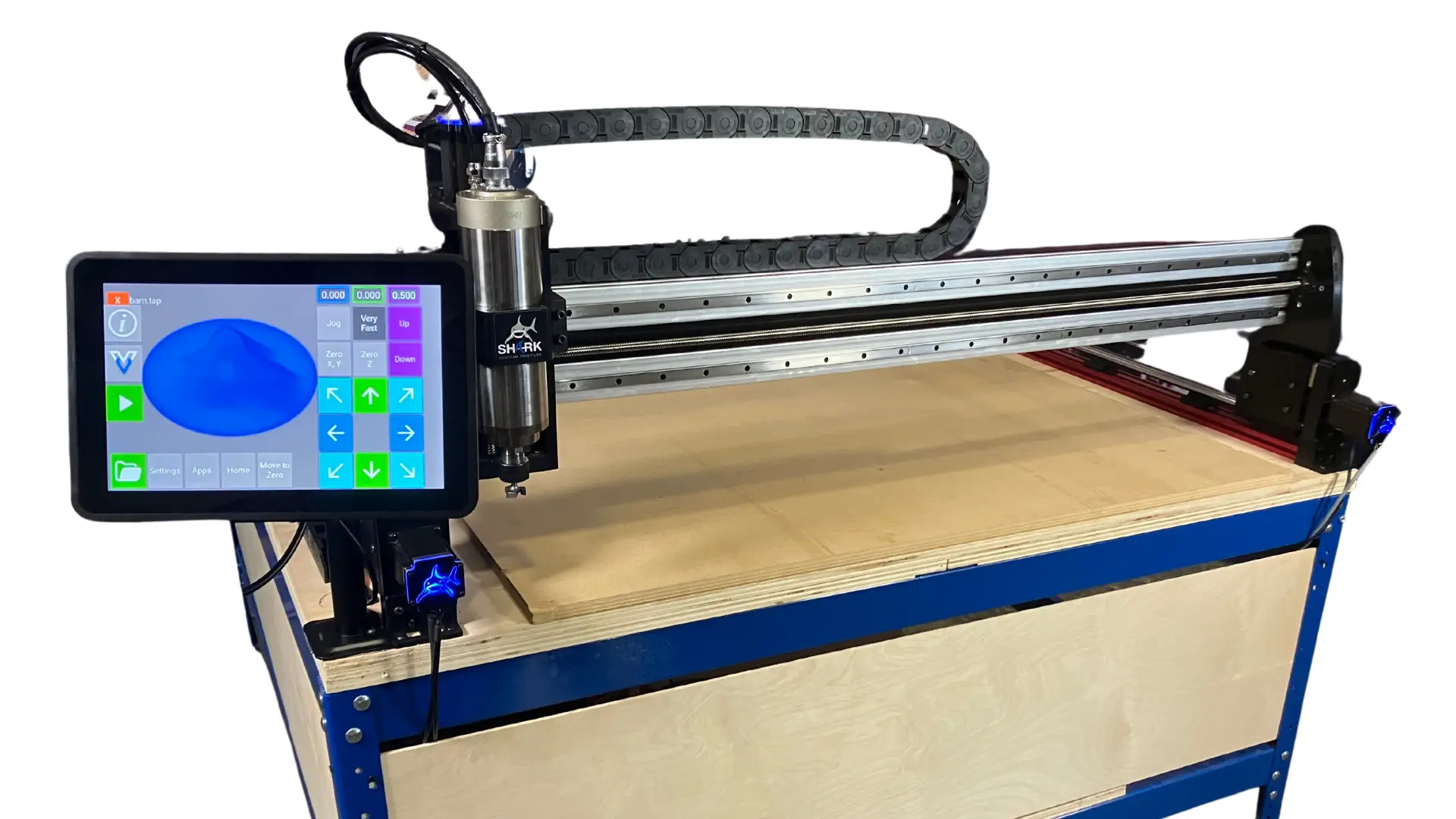

SHARK HD544®

Expected to SHIP THE WEEK OF DECEMBER 9th

Next Wave CNC’s Shark HD544 ships via Freight to the 48 contiguous states* if ordering accessories understand these may ship separately and additional shipping methods for them may be offered.*Please call for a SHIPPING QUOTE if you need your Shark HD544 shipped to Alaska or Hawaii.

The Shark HD544® creative potential is endless. Professional fabricators, Universities, and Makers are using our diverse woodworking tools to make custom parts, joinery, precision drilling functions, or decorative components.

The Shark HD544® offers true 4ft x 4ft machining capacity in an open base platform.  The XYZ travel of 50” x 50” x 7” is built with heavy duty industrial components supporting rapid movement up to 400 inches per minute.

The Shark HD544® is fully compatible with Next Wave CNC’s extensive product line of accessories, such as laser, 4th axis, digitizer, and more; optimize your workshop with our largest machine yet. The Shark HD544® is made in USA, comes with a two-year warranty, and includes U.S. based technical support.

The Shark HD544® is ready to assemble and mounts to your minimum recommended 64” x 64” table (not included). The Shark HD544® includes a 3hp water cooled spindle, 10.1” color pendant controller, and features a closed loop system for higher accuracy, robust ultra-precision leadscrews on all axes, and our patented Virtual Zero Unlimited software.

The Shark HD544® offers two control options.

1. Design your project using VCarve Pro software (available separately). Once the design is ready, transfer it to a USB drive. Plug the USB drive directly into the LCD pendant. This pendant features a convenient touch screen interface that eliminates the need for a computer to control the CNC in your shop.
2. For more control interactivity you can run the Shark HD544® from your computer with the Ready2Control program.  This lets you use the exclusive patented Virtual Zero Unlimited® program.  Our program will adjust your design to fit curves and angles that would be impossible on other brands of machines. (Computer and flash drive not included).

The Shark HD544® is made in the USA and includes U.S. Based Technical Support.

Specifications:

• Overall dimensions: 63.9” x 63.7”, Minimum table size 64” x 64”
• XYZ travel: 50” x 50” x 7”
• 10.1″ Color enhanced touch screen pendant controller
• Fully closed loop drive system
• Program restart anywhere inside the G-code
• Automatic Spindle on and off control,
• 3hp spindle, 1/2″ and 1/4″ collets
• Aluminum spindle mounting clamp
• High speed linear guides and bearing system
• High speed anti-backlash, ultra precision leadscrews on all axis
• Speeds up to 400 IPM
• Heavy load detection with auto compensation.
• X, Y, and Z Axis homing capability
• Status indicator lights on motors
• Maintenance test and calibration
• Power interruption protection
• WIFI enabled
• Visual run time display for precise project monitoring
• USB ports for direct connection of peripherals like keyboards, mouse, and flash drives
• Operates on 110/115 V (15-amp circuit minimum)
• Compatible with all Next Wave Accessories

Included:

• Virtual Zero Unlimited, $149 Value, this patented Next Wave CNC exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed workpiece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle. (requires optional touch plate sold separately)
• Two-year warranty $499 retail value – we are so confident in our products we include an industry leading two-year warranty, no need to purchase an extended warranty
• 10.1″ Colored touch screen pendant controller.
• USB interface
• Ready2Control, computer control panel software.
• 3hp water cooled spindle system item 20162
• 1/4″ and 1/2″ collets
• Collet wrenches
• Shark Touch Plate

• 2 hold down clamps
• Carbide V Bit
• Made in USA
• U.S. based technical support

Click here to view the HD544 Manual

Click here to view the 10.1 Pendant Manual

Next Wave CNC is always happy to assist, whether you need help determining which machine to buy or need help using your machine. If you have questions about any of our Shark products, reach out to our team any time. Simply call us at (419) 318-4822 or email support@nextwavecnc.com.
