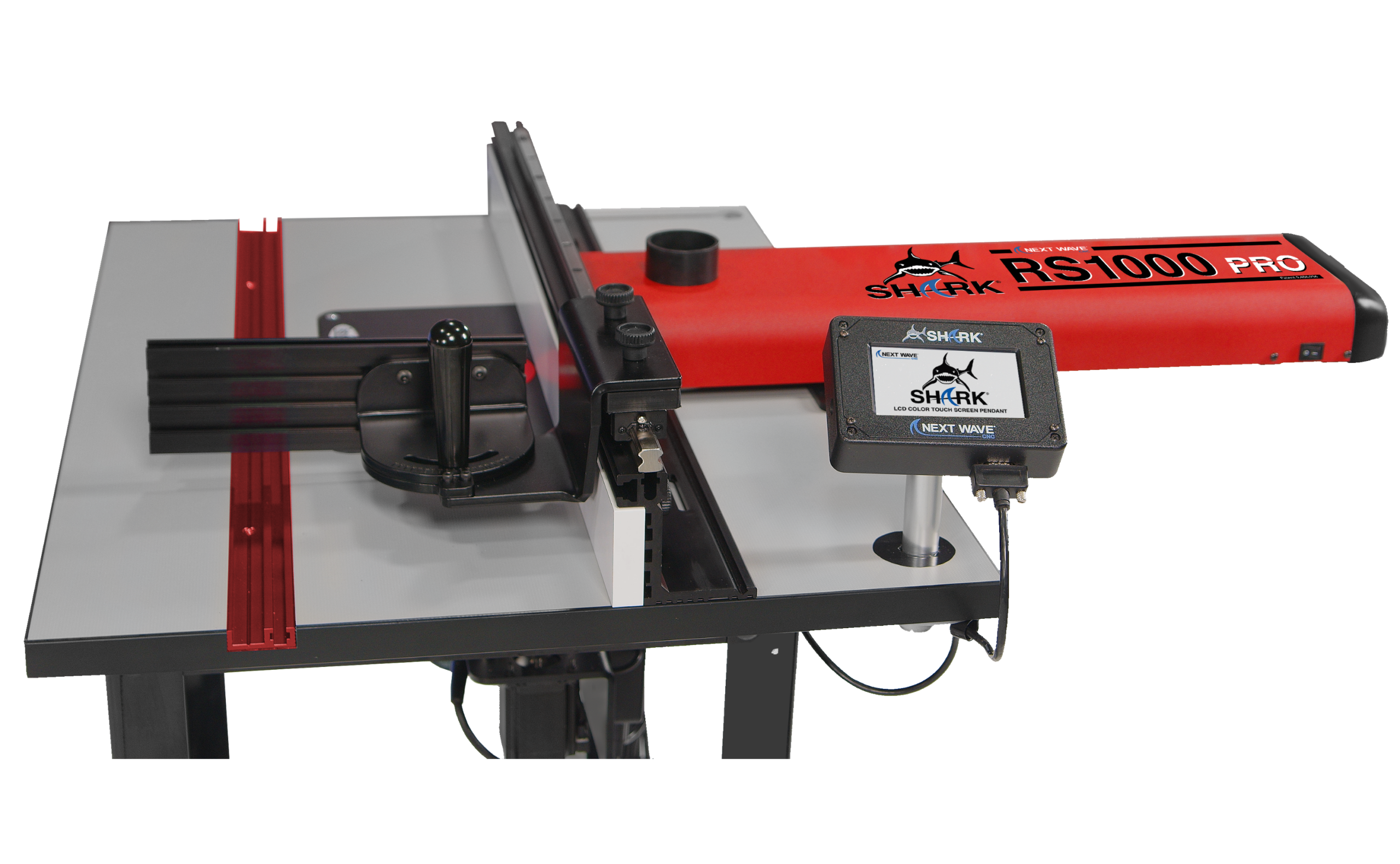

SHARK RS1000 PRO®

The Shark RS1000 transforms nearly any router table into a full-fledged 2 Axis CNC allowing you to adjust your router fence or bit height by as little as .001”. The RS1000 comes with preloaded apps to do over a dozen common router and specialty joinery functions, such as Box Joints, Dovetail, Dado, Lock Miter and many more. The generic plate size (9 1/4″ x 11 3/4″) fits most router tables and accepts any standard 3.5″ diameter router motor.

Specifications:

• Standard plate size – 9-1/4″ X 11-3/4″
• Built to handle larger 2.25 HP routers with 3.5” barrel diameter like Dewalt 610, 616, 618, PC 890 Series, Bosch 1617 (router sold separately)
• Removeable table inserts for larger bits
• Integrated 2 ¼” dust port
• Onboard processor with Color LCD pendant control
• Router fence and lift move accurately in direct relationship to the bit with movement as little as .001”
• Full 12” router fence travel for larger projects and 3½” of router lift travel to accommodate spindles.
• Toggles between standard, metric and decimal measurements so you don’t have to convert dimensions.
• Programmable memory locations for commonly used settings, Reducing setup time up to 90%.
• Simple to use, type in desired measurement and press ok
• Works with almost any Router Table (table not included)

Included:

• Touch-off plate
• Built-in Joinery Apps – Dovetail, Box Joint, Rabbet, Dado, Lock Miter, and more
• Integrated 2 ¼” dust port
• Color LCD pendant
• 32″ Wide Router Fence with replaceable inserts and safety accessories
•  9-1/4″ X 11-3/4″ Phenolic router plate with removeable inserts
• Leveling System designed to adapt to most tables.
• Made in the USA
• U.S. Based Technical Support

NOTE: While many tables in the market place are a standard opening size, some modification may be required to secure it to various table brands. Additional levelers are included with the RS1000 for that purpose.

RS1000 Pro Owners Manual – CLICK HERE

RS1000 Pro Apps Manual – CLICK HERE

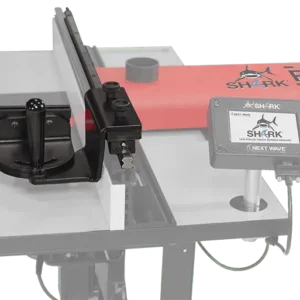

Add ease and versatility to your RS1000 with the RS Sliding Miter CLICK HERE

Unboxing Video

App Videos – How too

Biscuit App

Box Joint App

Dado App

Repeating Dado

Fluting App
