The Latest Revolution in Router Accuracy

Share this product:

UPC: 853211006831 SKU 10036 Category

Product Details

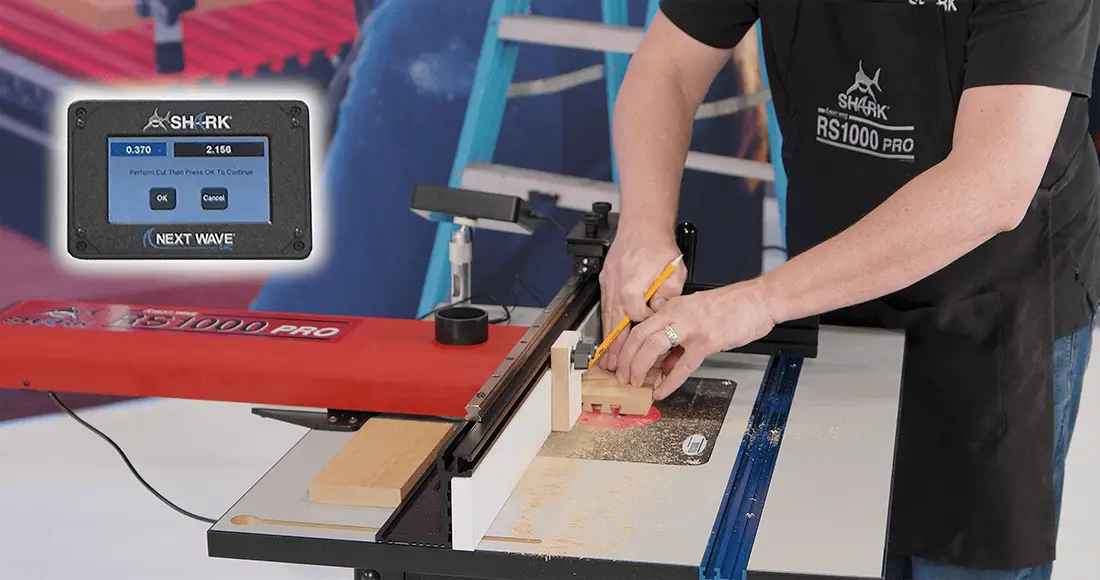

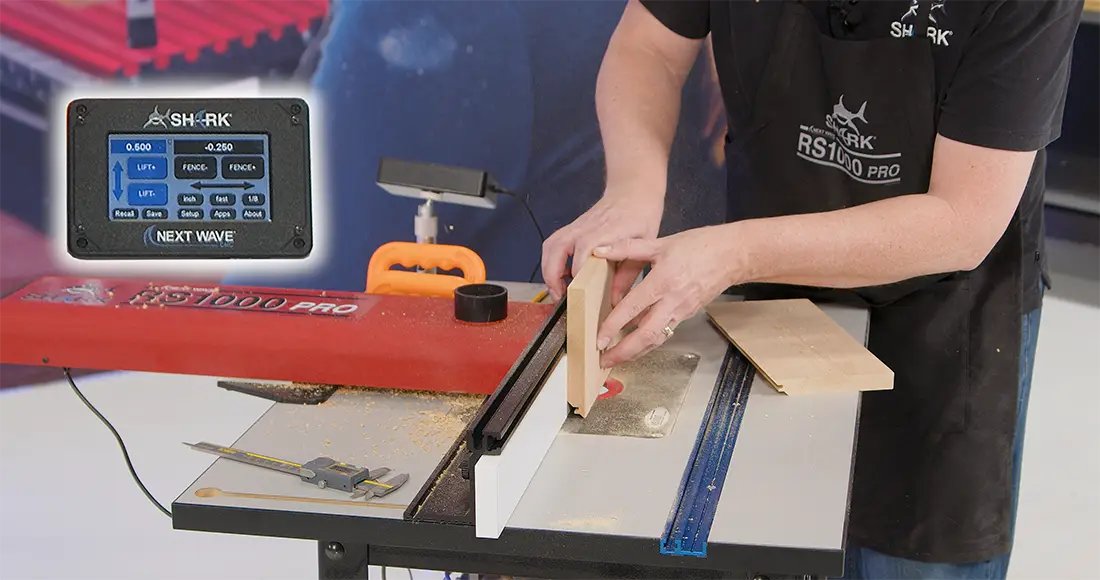

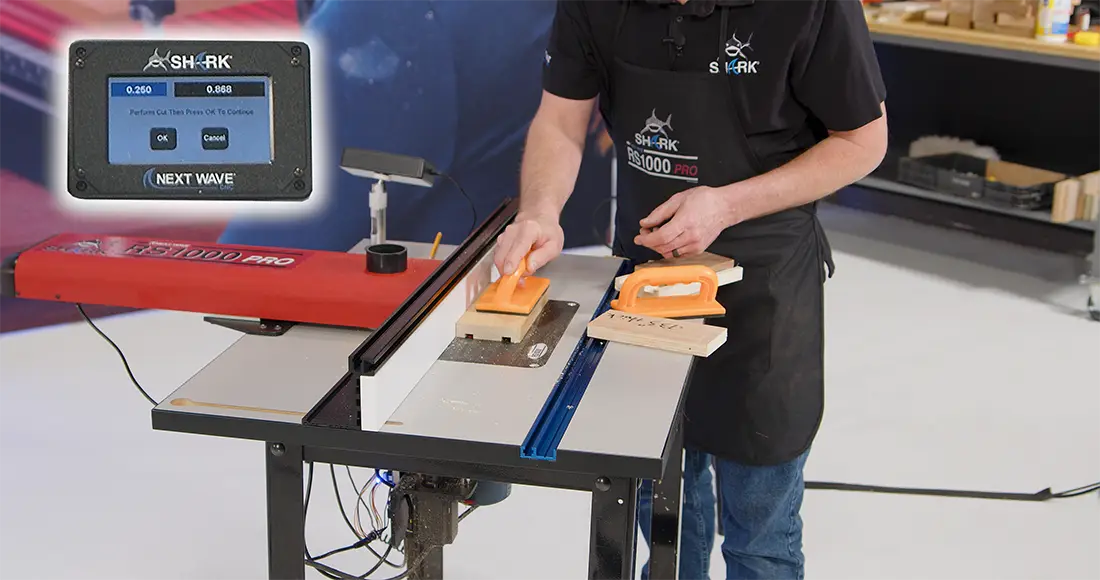

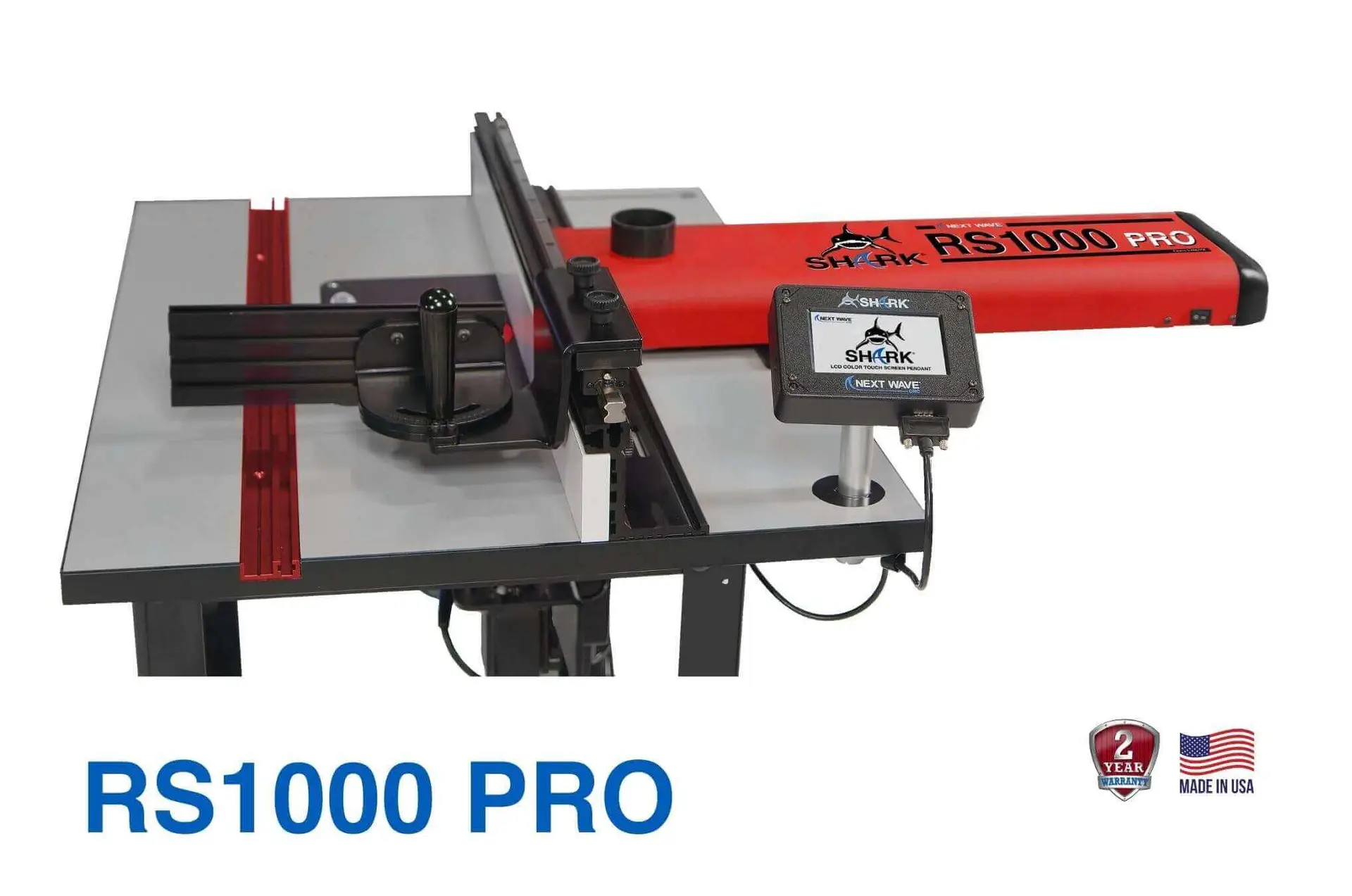

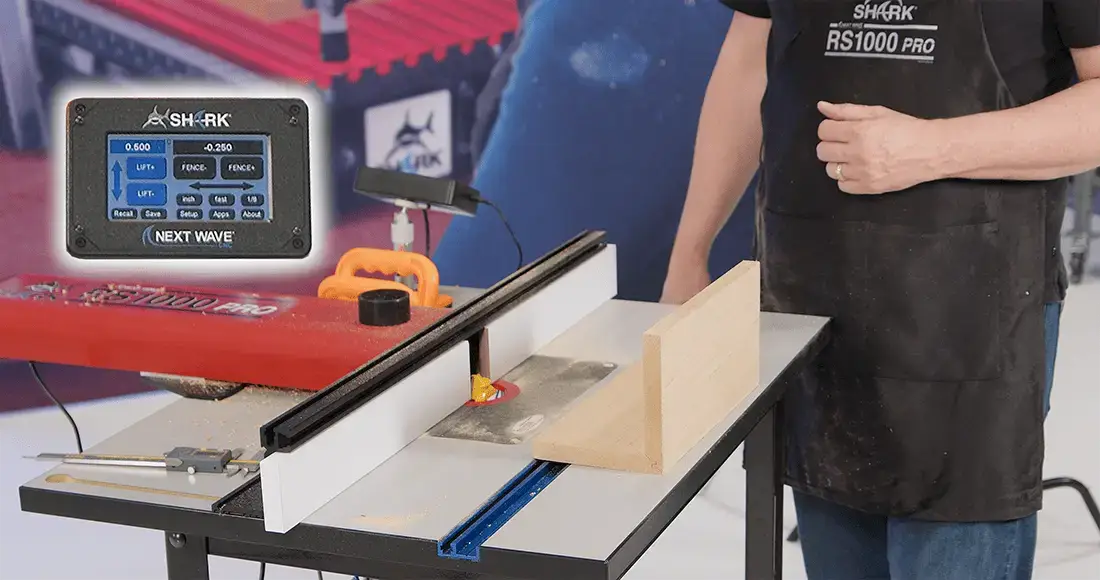

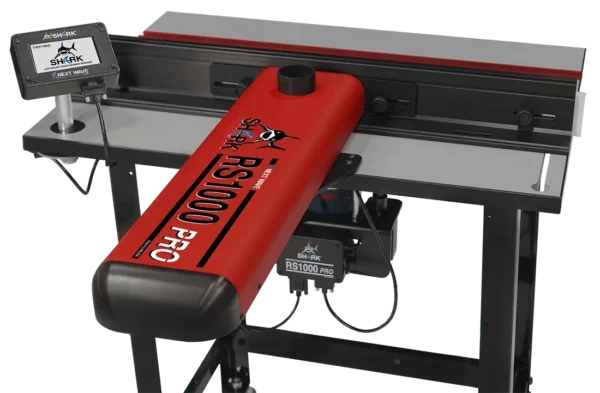

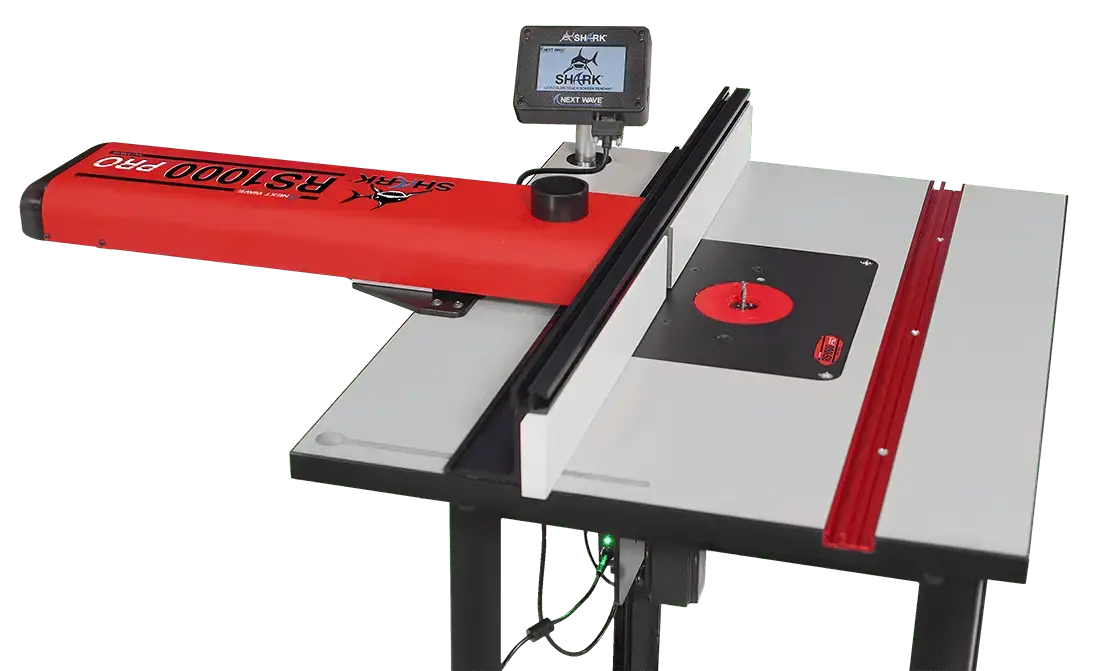

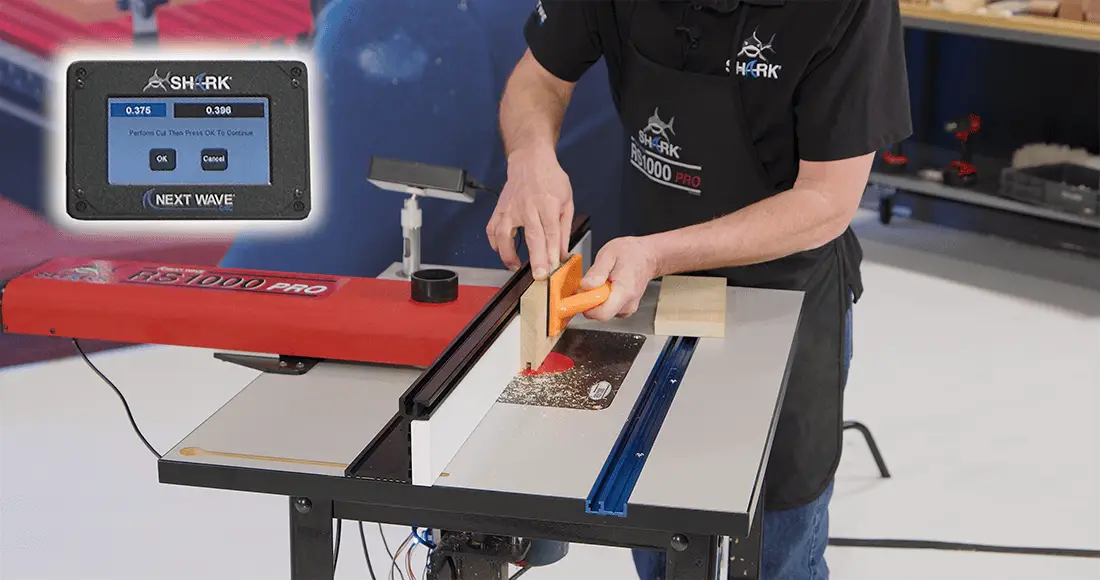

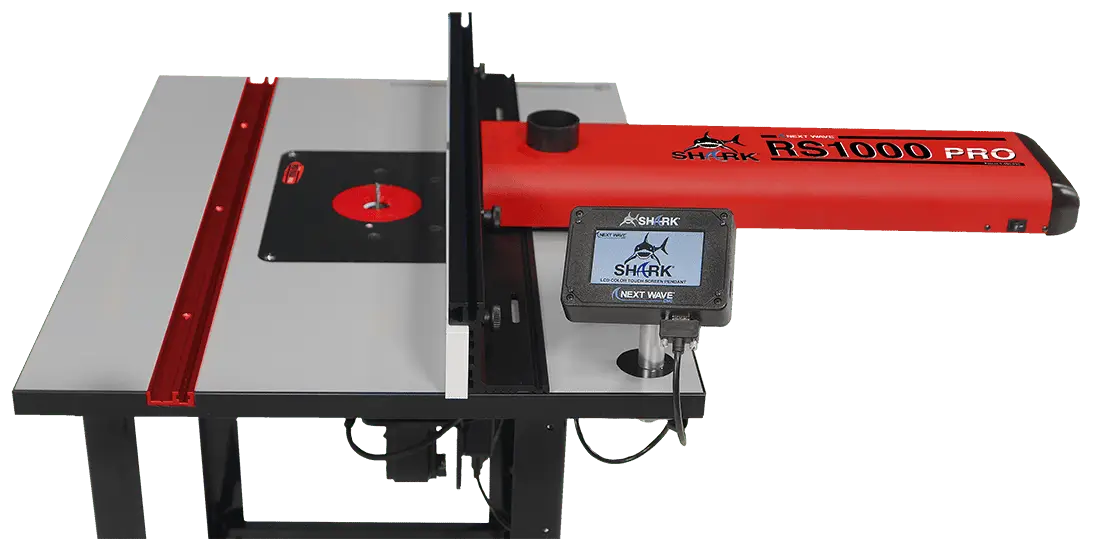

Now you can add CNC functionality to your router table. The Shark RS1000 transforms nearly any router table into a full-fledged 2 Axis CNC allowing you to adjust your router fence or bit height by as little as .001”. The RS1000 comes with preloaded apps to do over a dozen common router and specialty joinery functions, such as Box Joints, Dovetail, Dado, Lock Miter and many more.

  • True two Axis CNC capability for your Router Table
  • Onboard processor with Color LCD pendant control
  • Router fence and lift move accurately in direct relationship to the bit with movement as little as .001”
  • Full 12” router fence travel for larger projects and 3½” of router lift travel to accommodate spindles.

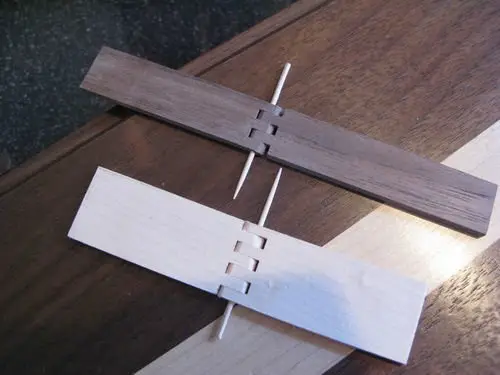

  • Built-in Joinery Apps – Dovetail, Box Joint, Rabbet, Dado, Lock Miter, and more
  • Reduces setup time up to 90%
  • Toggles between standard, metric and decimal measurements so you don’t have to convert dimensions.
  • Programmable memory locations for commonly used settings.
  • Works with any standard 3.5” Router motor.
  • Standard plate size – 9-1/4″ X 11-3/4″
  • Removeable table inserts for larger bits
  • Integrated 2 ¼” dust port
  • Simple to use, type in desired measurement and press ok
  • Works with almost any Router Table (table not included)
  • Touch-off plate included


NOTE: While many tables in the market place are a standard opening size, some modification may be required to secure it to various table brands. Additional levelers are included with the RS1000 for that purpose.

RS1000 Pro Owners Manual – CLICK HERE

RS1000 Pro Apps Manual – CLICK HERE

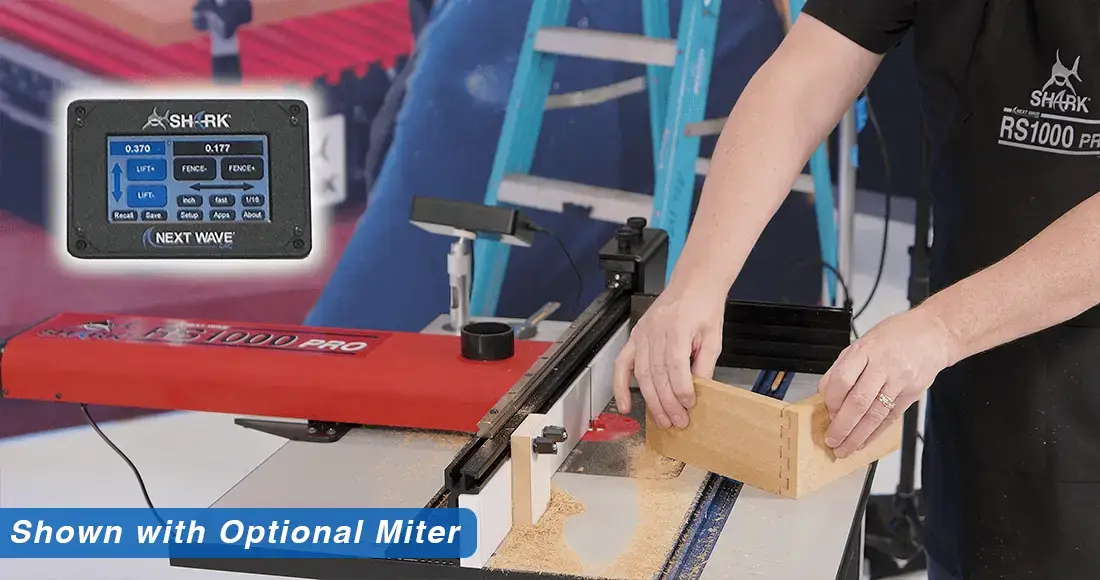

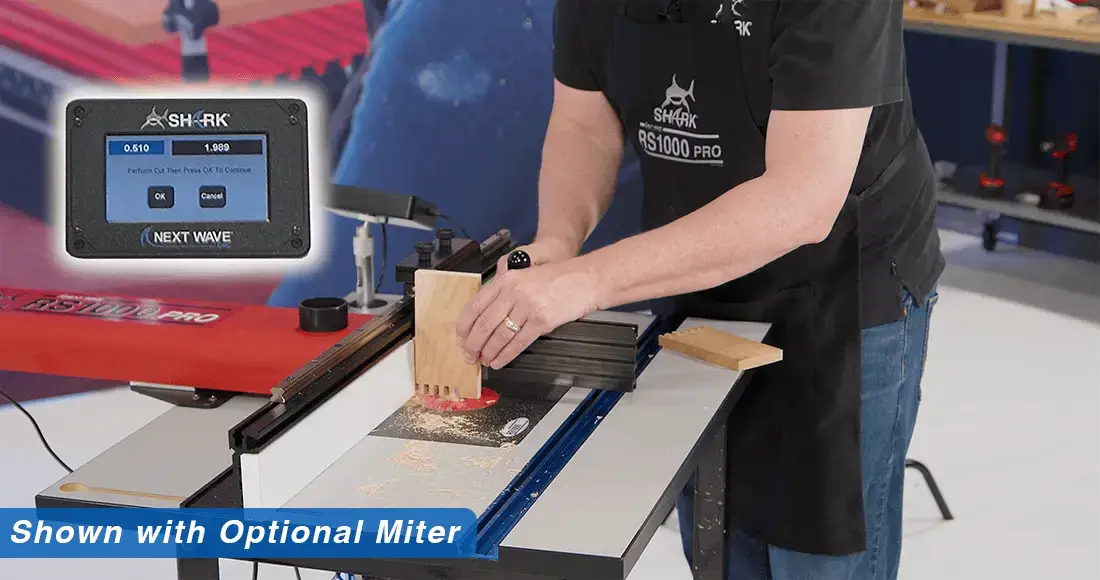

Add ease and versatility to your RS1000 with the RS Sliding Miter CLICK HERE

Unboxing Video

App Videos – How too

Biscuit App

Box Joint App

Dado App

Repeating Dado

Fluting App
