10 WATT SOLID STATE LASER KIT for SHARK CNCs

COMING IN FEBRUARY 25

Next Wave CNC’s 10W solid-state laser kit is the perfect add-on for Shark CNC machines, offering versatility for both laser engraving and cutting.

With the included mounting bracket and updated firmware, the 10-Watt Laser System gives you the ability to engrave or cut by choosing the right toolpath for your project.

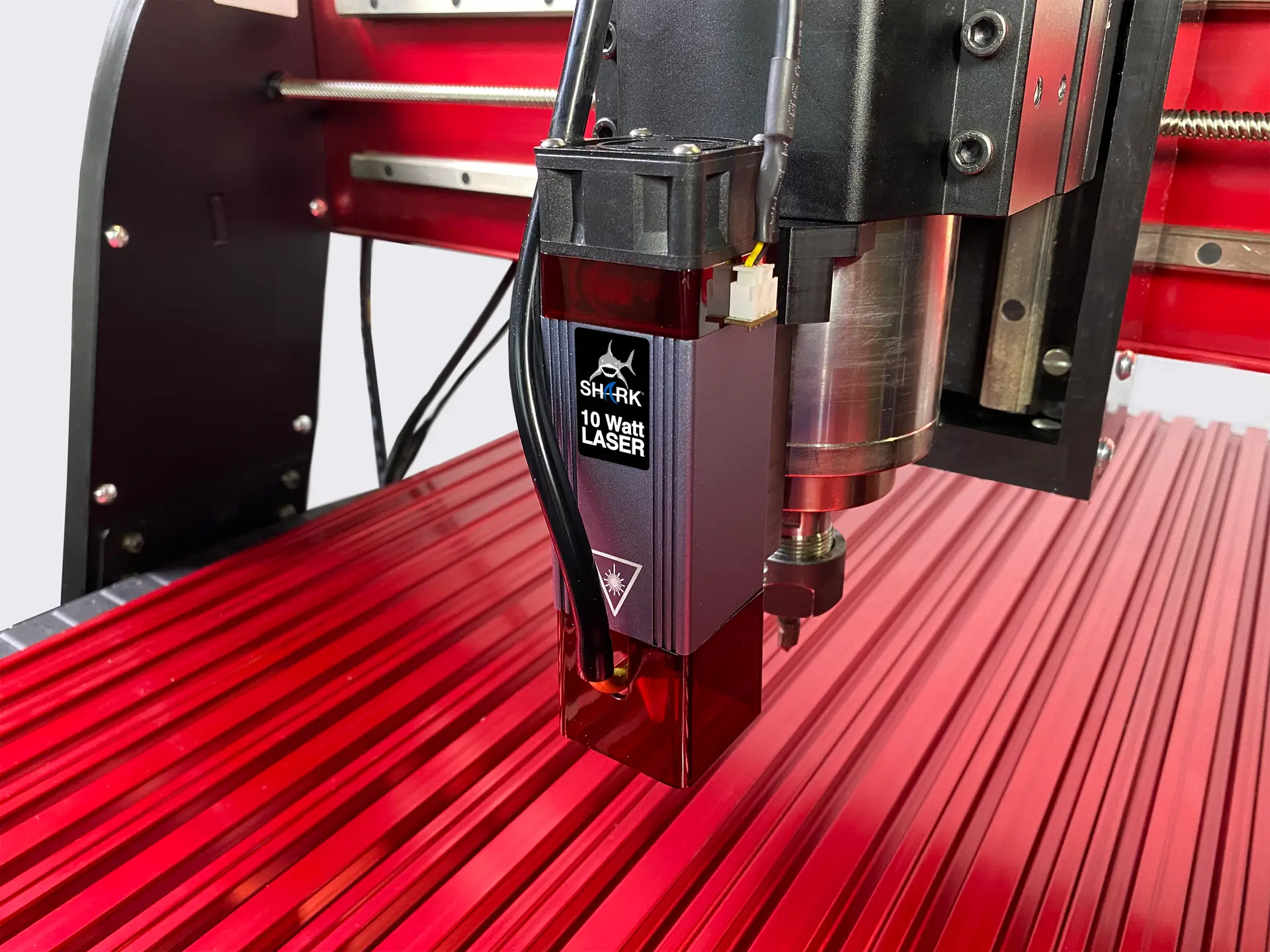

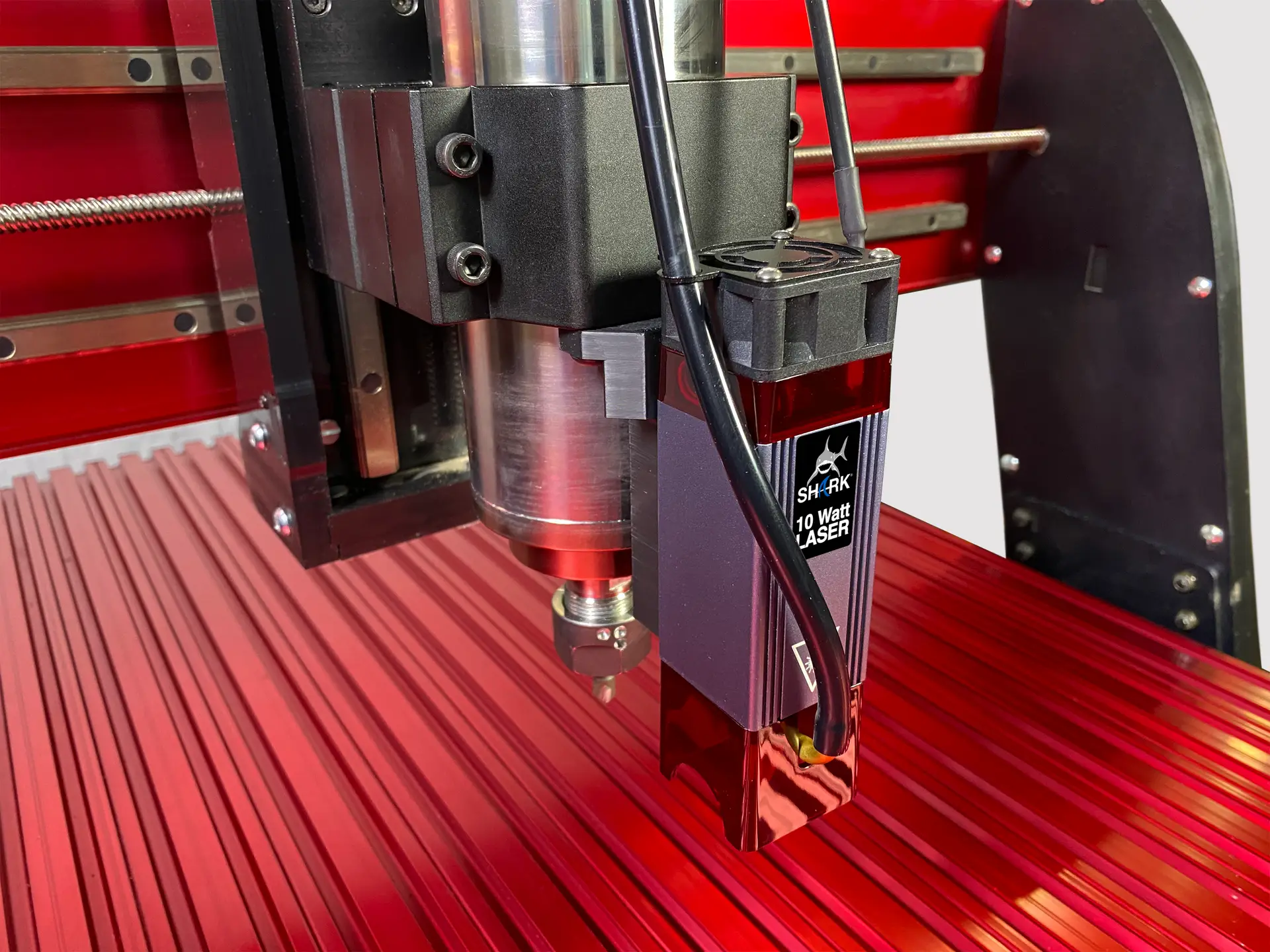

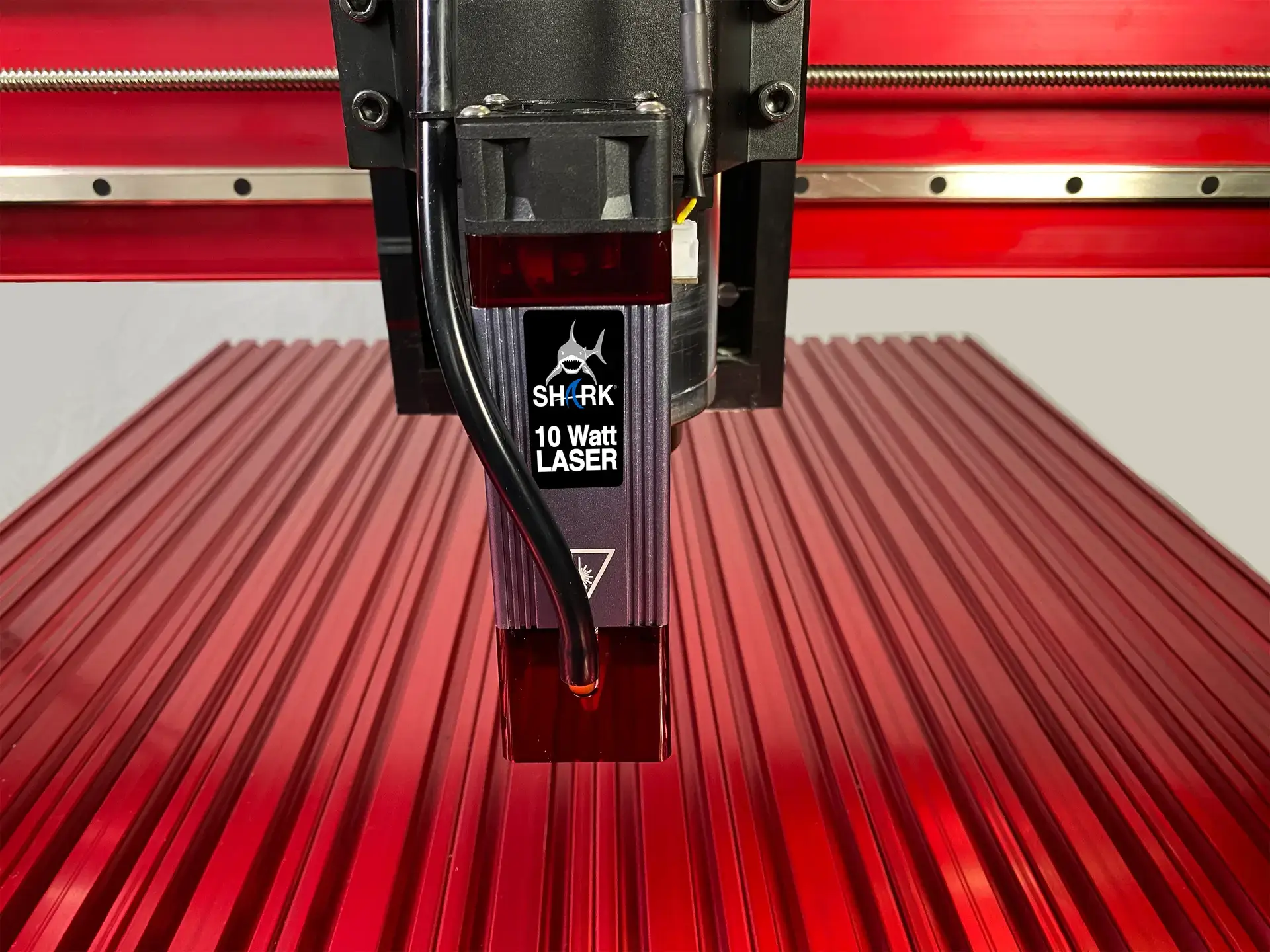

The 10W laser module is designed for Shark CNCs and allows you to produce detailed images, precise engravings, and clean lettering. It can burn a variety of materials such as wood, acrylic, leather, foam, and other surfaces suitable for woodburning. It’s also capable of cutting certain thin materials.

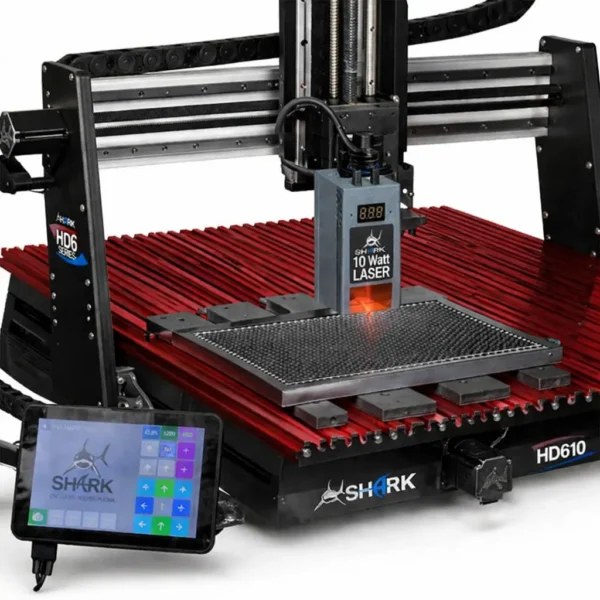

Compatible with all Next Wave CNC HD5® series machines, the 10W Laser System integrates seamlessly with V-Carve and Ready2Raster software when the correct toolpaths are selected.

Specifications:

• Dual-core Diode Laser
• .3″ Plywood Cutting in One-PASS @ 3.5ipm
• 5mm Tinted Acrylic Cutting in One-PASS – Clear Acrylic requires masking
• Automatic offset allowing CNC carving & laser combination projects
• Fully integrated controller
• 1024 points of grayscale
• 2-point adjustable mount for HD5xx Shark CNC’s
• The kit is designed to fully comply with high-powered Class 4 laser regulations.
• Keyed switch that enables the laser, with Multiple safety interlocks.

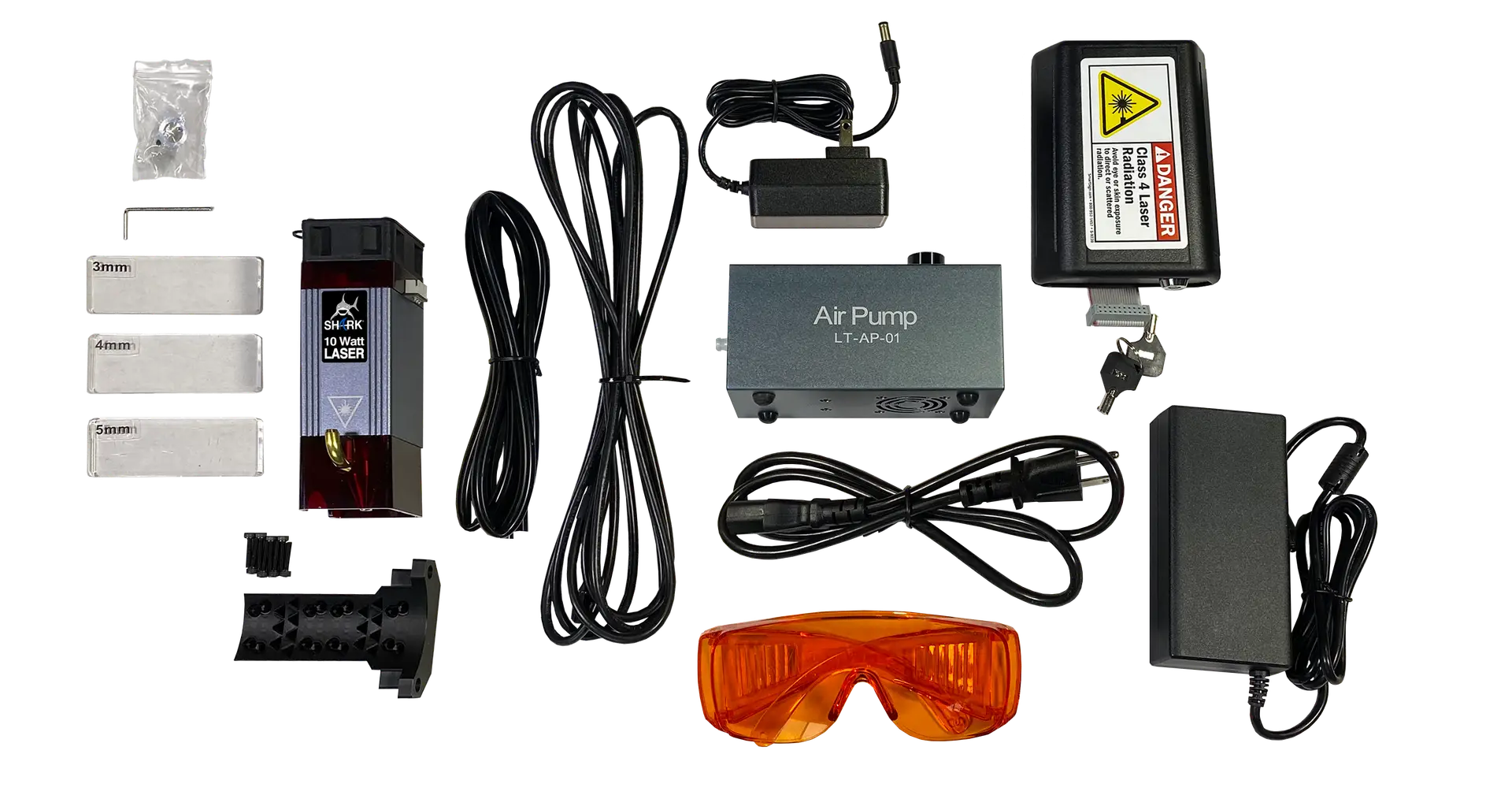

Included:

• Built-in Powerful air assist kit

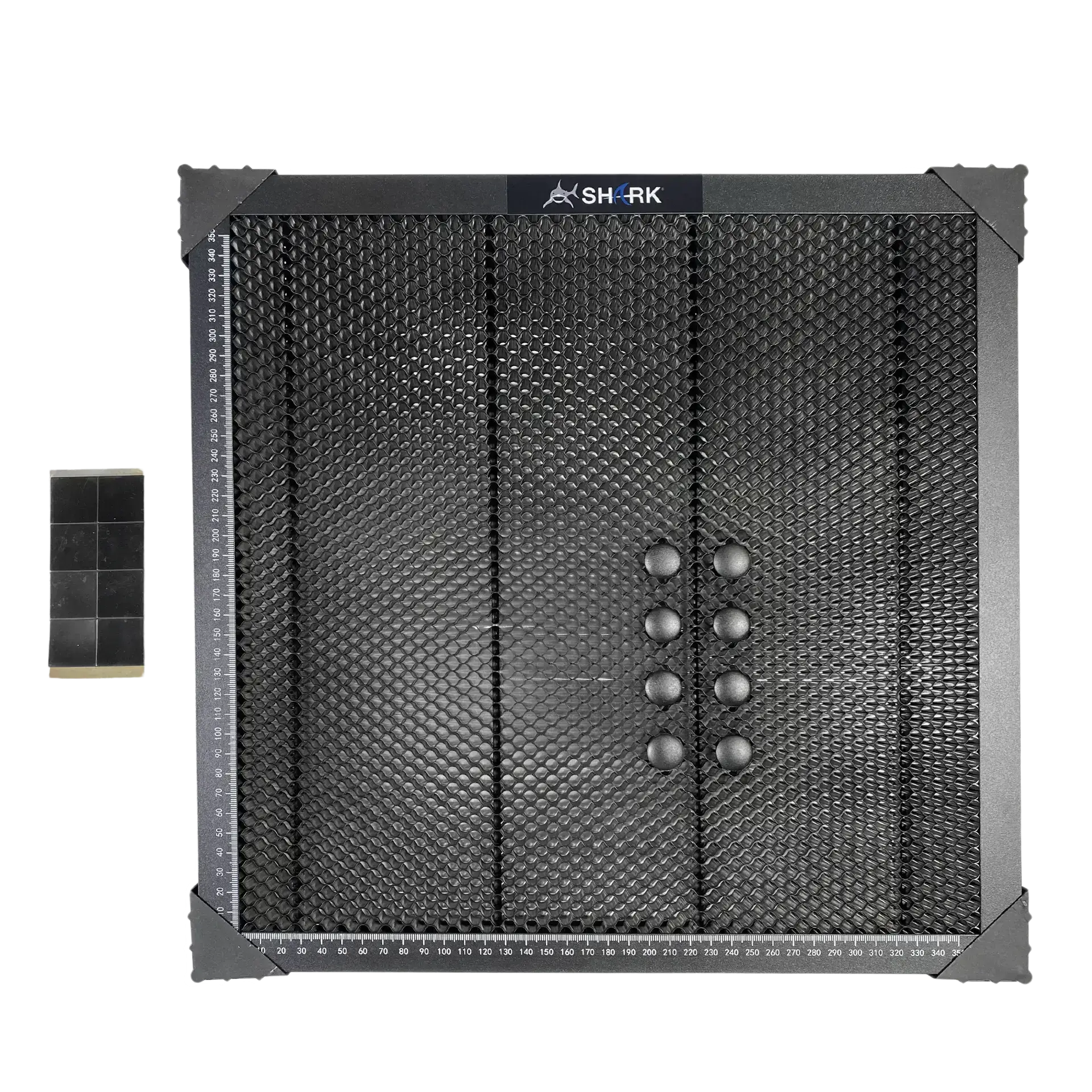

• Auxiliary Laser bed to protect the CNC machine bed
• Safety Goggles for 445nm Lasers
• Power fault protection prevents the beam from activating after a power failure.
• U.S. based technical support for the original owner.
• 1 Year Warranty

10w Laser Manual

CURRENTLY, THE 10-WATT LASER IS NOT COMPATIBLE WITH CANADIAN CONTROLLERS
