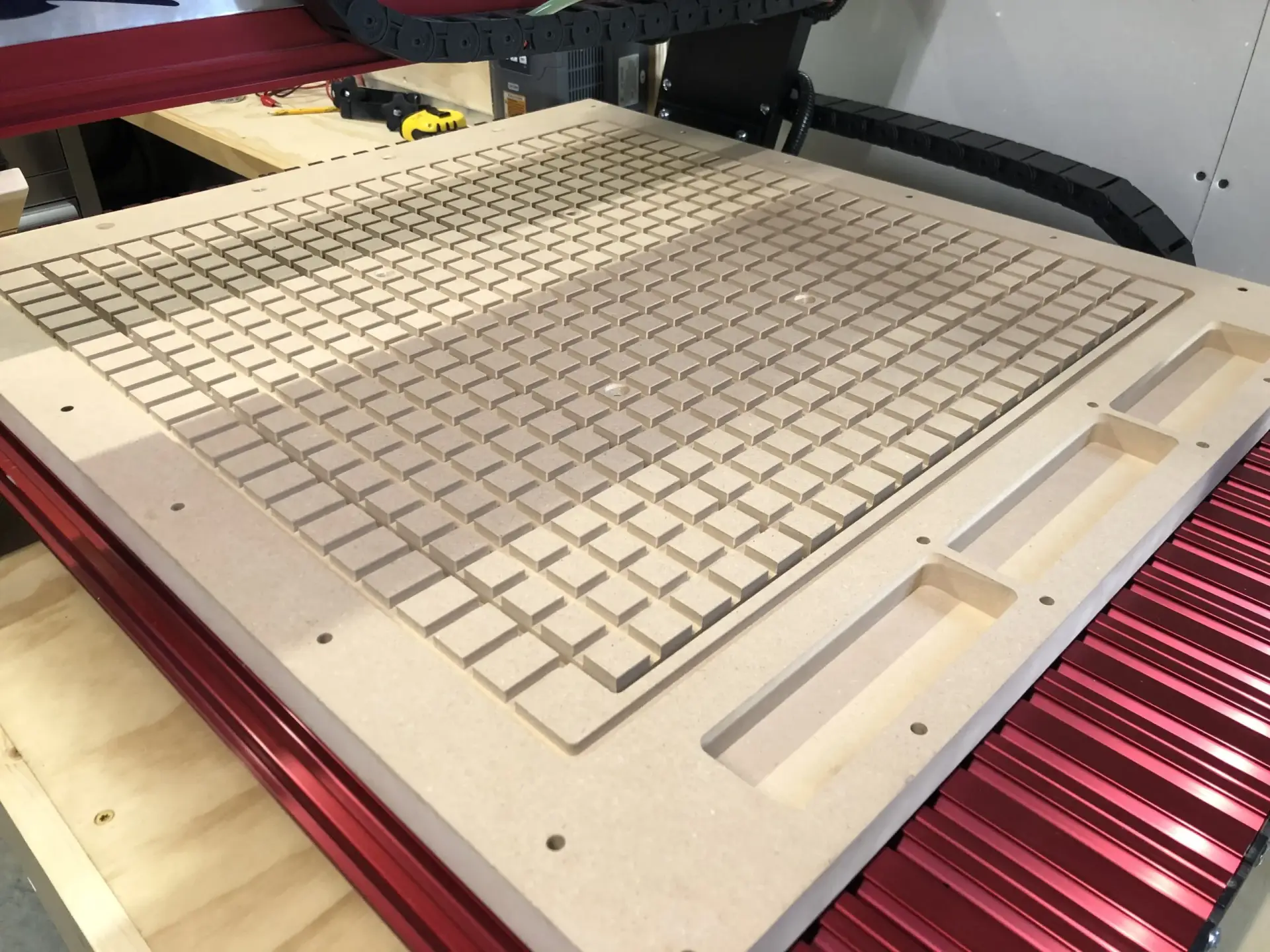

Small Vacuum Tables for CNC: Optimizing Your Setup for Precision and Efficiency
Small vacuum tables have become essential for CNC owners who need reliable and efficient methods for securely holding materials during machining. These tables ensure that materials don’t shift, delivering cleaner cuts and better overall product quality. When considering a vacuum table setup for your CNC, selecting the right vacuum pump is crucial, as it directly impacts both performance and maintenance. Let’s dive into key aspects such as pump requirements, the choice between oil-less and oil-based pumps, and best practices for setup and maintenance.
Why Use a Vacuum Table for CNC?
Vacuum tables simplify the work holding process, making it easier to load and unload materials while maintaining a strong, consistent hold during cutting or engraving operations. For smaller CNC machines, vacuum tables are ideal for processing flat materials like wood, plastics, and even metals. They help avoid the time-consuming adjustments that come with traditional clamps or adhesive setups, which can interfere with workflow efficiency and limit operational flexibility.
Selecting the Right Vacuum Pump
When it comes to small vacuum tables, the minimum air requirement for effective hold-down should be around 5 cubic feet per minute (CFM). This ensures sufficient suction for most small to medium materials and maintains material stability under the pressure of the CNC router or mill. Choosing a vacuum pump that meets or exceeds this CFM rating ensures optimal hold without risking material shifting or vibration that could affect precision.
Oil-Less vs. Oil-Based Vacuum Pumps
One key decision when selecting a vacuum pump is whether to use an oil-less or oil-based pump. Each has its unique benefits and considerations, which impact cost, maintenance, and the overall work environment.
Oil-Less Vacuum Pumps
Benefits:
- Low Maintenance: Oil-less pumps don’t require regular oil changes or monitoring, reducing maintenance needs.
- Cleaner Operation: Without oil, there’s no risk of leaks or oil contamination, making oil-less pumps more suitable for environments sensitive to pollutants.
- Health and Safety: These pumps eliminate the risk of oil mist or fumes, creating a cleaner, more breathable workspace.
Ideal Applications: Oil-less pumps are excellent for clean, dry environments or small workshops, where keeping the air free from contaminants is essential. They are well-suited for light to medium-duty CNC operations where simplicity and minimal upkeep are priorities.
Oil-Based Vacuum Pumps
Benefits:
- Increased Power: Oil-based pumps generally deliver higher suction power, making them ideal for heavier or denser materials that need a strong hold.
- Extended Durability: The oil lubricates moving parts, often resulting in a longer lifespan for the pump under heavy-duty conditions.
Drawbacks: Oil-based pumps require regular maintenance, including oil changes, and can produce an oil mist, which may affect air quality. Additionally, they are less suited to environments where dust or other particles could contaminate the oil, affecting performance over time.
Ideal Applications: These pumps work well in industrial settings where larger CNC machines require stronger suction to secure denser materials.
Safe Placement and Ventilation for Your Vacuum Pump
To ensure the longevity and optimal function of your vacuum pump—whether oil-less or oil-based—placement and environmental control are critical:
- Well-Ventilated Area: Locate the pump in a well-ventilated, dry space. Adequate ventilation helps to dissipate any heat generated by the pump, preventing overheating and ensuring stable operation.
- Dust-Free Zone: Position the pump away from the CNC machine itself to reduce exposure to dust and debris, which can clog intake valves and reduce efficiency. If possible, use a barrier or enclosure with proper ventilation to shield the pump.
- Humidity Control: Avoid damp or overly humid areas that could lead to rust or internal component degradation. Proper humidity control will extend the life of your pump and maintain a steady, reliable vacuum.
Final Thoughts
When outfitting a CNC setup with a small vacuum table, investing time in selecting the right vacuum pump and ensuring proper placement is essential for optimal performance. By choosing an oil-less or oil-based pump based on your specific needs, and taking precautions to keep the pump in a clean, dry, and ventilated space, you can achieve excellent material hold and extend the life of your equipment.
