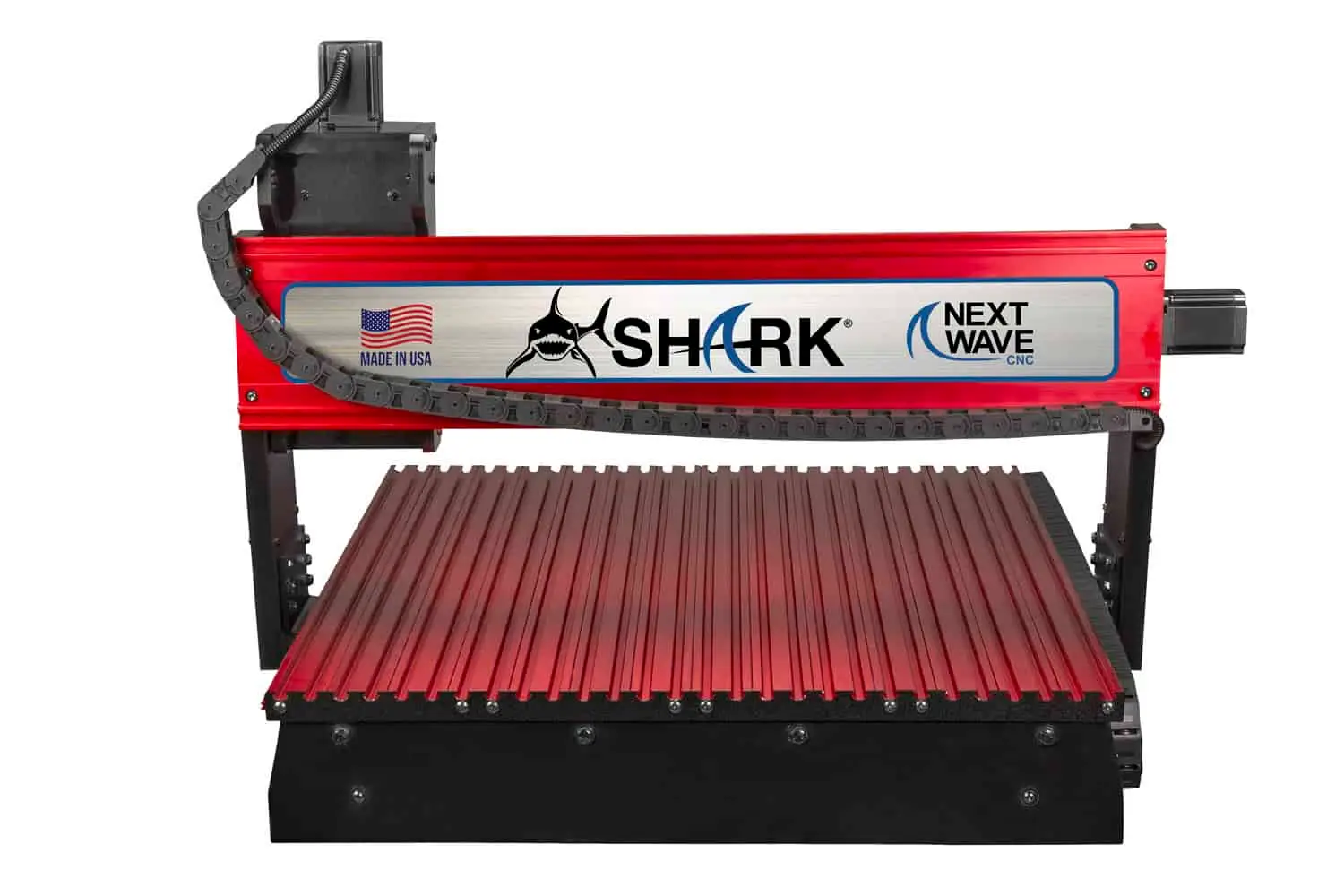

Shark HD510® CUSTOM PACKAGE

🚚 Please Note: Current shipping times are up to 21 business days due to high demand. We appreciate your patience and are working hard to ship orders as quickly as possible.

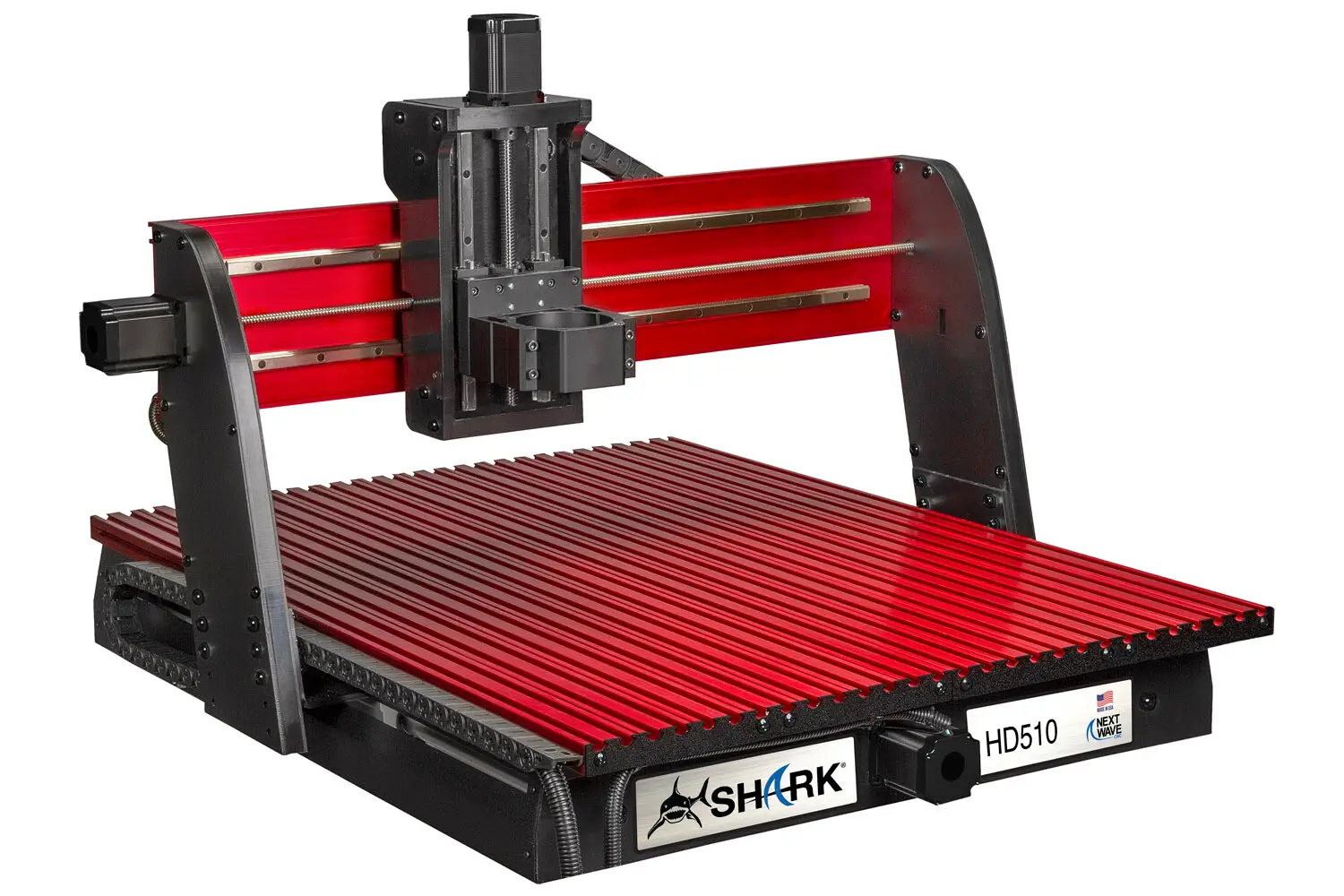

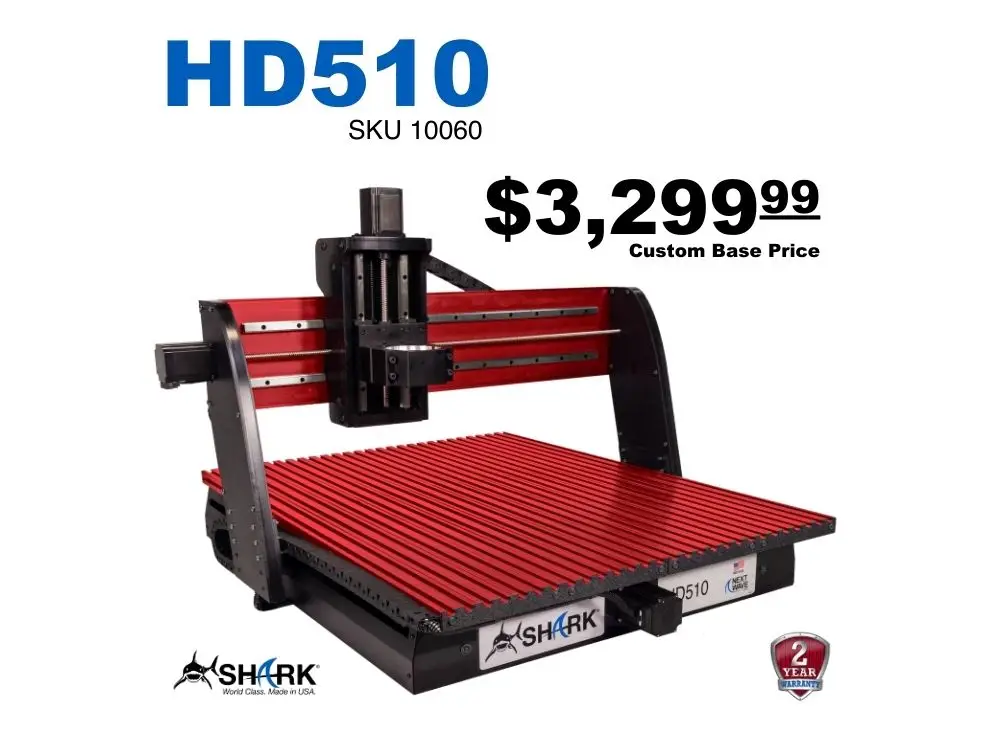

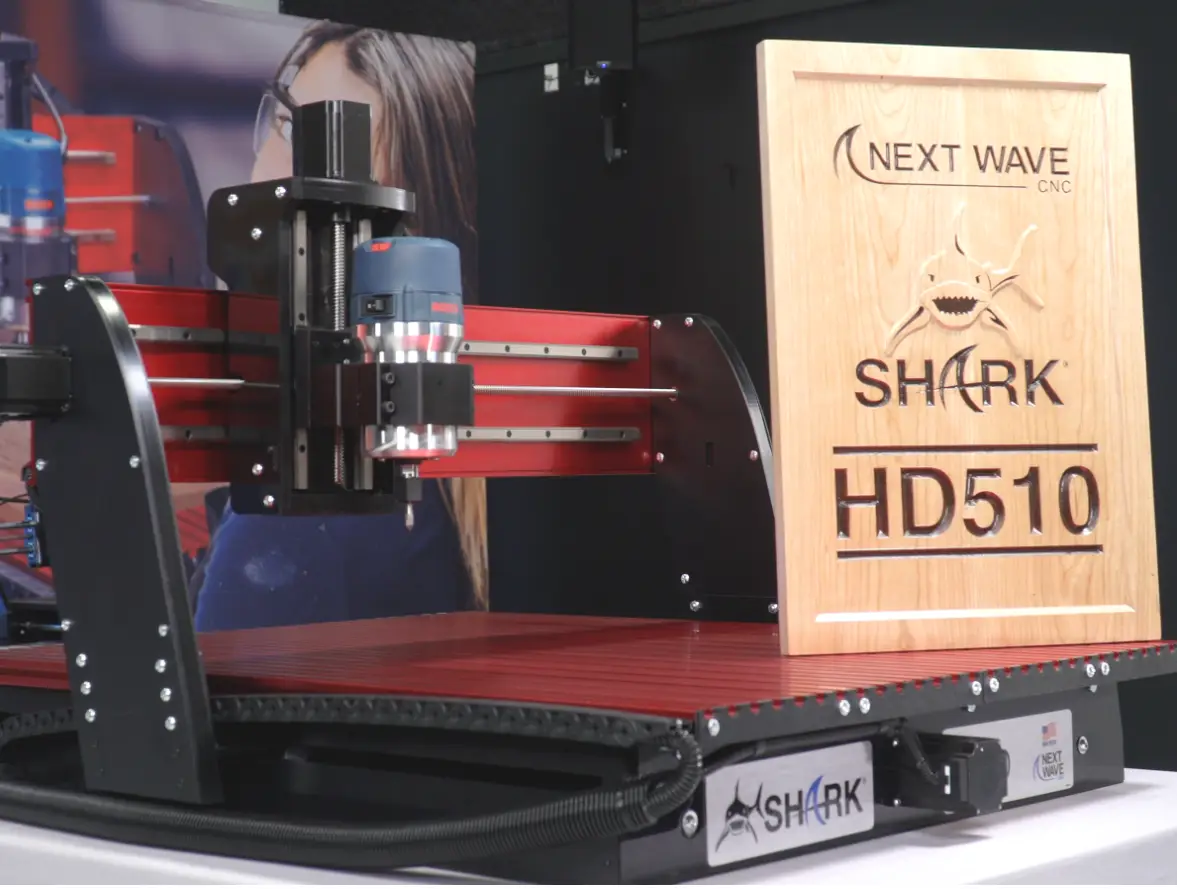

Shark HD510® Custom Package – Build the Perfect CNC for Your Needs!

The Shark HD510® Custom Package lets you design a CNC machine that perfectly fits your needs. Choose only the features you want, so you get the best possible value without paying for extras you don’t need.

Precision, Power, and Versatility

• Built for both home workshops and production floors, the Shark HD510® Custom package is engineered to handle all your machining needs. It features:
  Spacious Cutting Area – 25” x 25” x 7” for tackling a wide range of projects.
  Robust Construction –  28” x 36” table with linear gantry rails for superior stability.

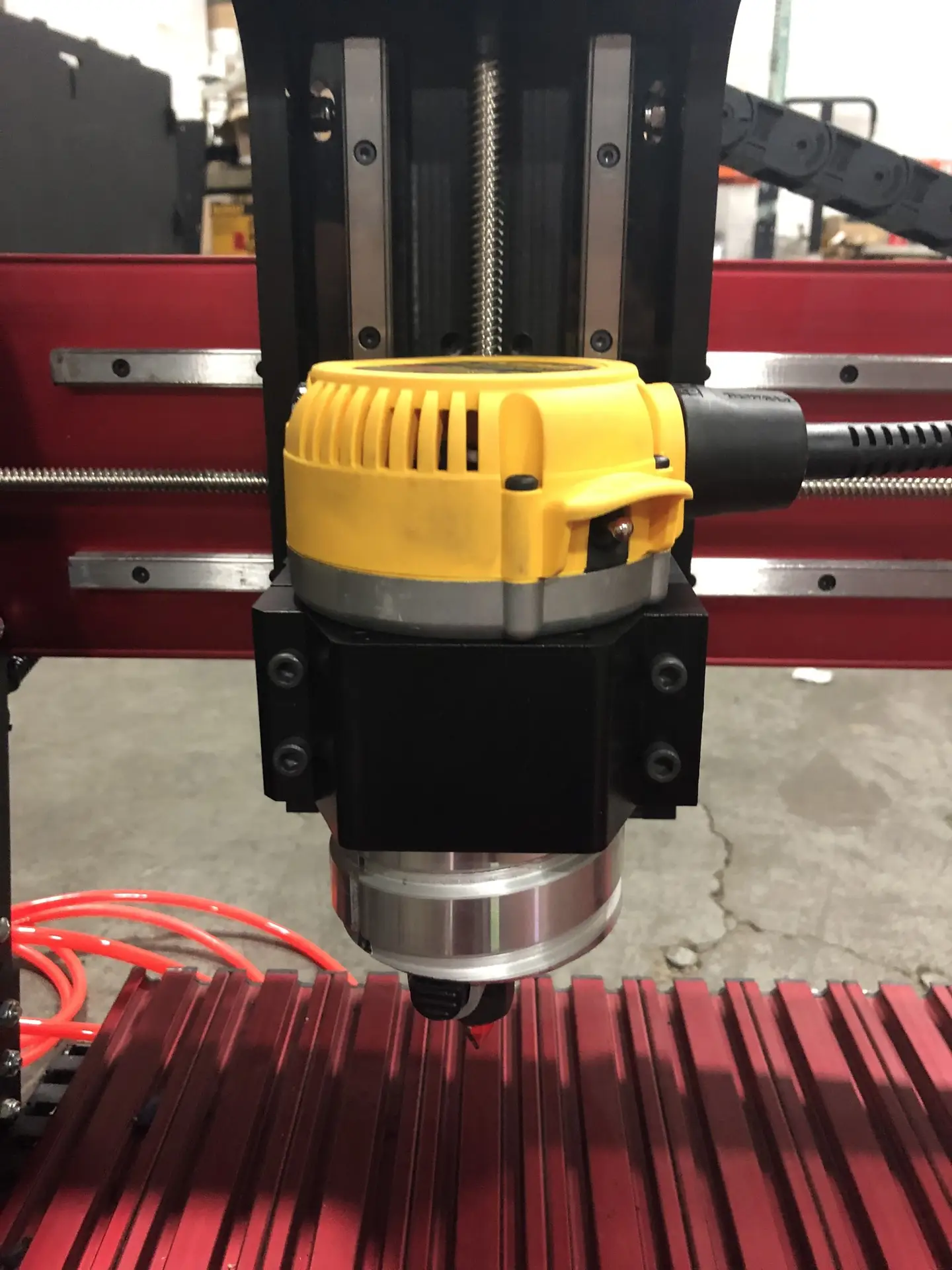

  Router & Spindle Compatibility – Includes extruded aluminum router mount (for 3.5” barrel routers) or also compatible with all Next Wave’s spindle systems.

Advanced Features for Limitless Creativity

🔹 Computer-Controlled Ready2Control Software – Ideal for carving plaques, signs, ornamental boxes, and precision parts from wood, soft metals, and plastics.
🔹 Upgrade to a Convenient Pendant – Use the standard 5” color LCD pendant or upgrade to the new 10.1” Android tablet pendant for enhanced control.
🔹 Patented Virtual Zero Unlimited® Technology – Exclusive to Next Wave, this feature automatically adjusts your design to fit curved and uneven surfaces—something other machines simply can’t do!

Compatible with Industry-Leading Software

A design software is required to unleash the full potential of your CNC and Next Waves Shark Wizard Basic is included with your machine purchase. For more robust and advanced designing we recommend Vectric’s VCarve Pro, but you can also use Cut2D, Desktop, Aspire, Fusion 360, and more.

Expand Your Capabilities with Accessories

Take your projects to the next level with optional add-ons:

• 4th Axis for rotary carving – –  CLICK HERE
• Laser module for engraving – – CLICK HERE
• Digital probe for duplicating 3D items – – CLICK HERE
• Drawing tool for unique artistic designs – – CLICK HERE

Made in the USA with Expert Support

The Shark HD510® Custom package is proudly made in the USA and backed by USA-based technical support for the original owner.

🔹 Whether you’re a beginner or a pro, this CNC machine is your gateway to high-quality, precision woodworking. Start creating today!

Specifications:

• Table dimensions: 28” x 36”
• XYZ travel: 25” x 25” x 7”
• Overall dimensions: 36-1/4” W x 36” L x 24-1/2” H
• Built with industrial-grade components, the SHARK HD510® also features a heavy-duty aluminum and steel reinforced gantry, a new extruded aluminum router mount system, interlocking aluminum table, linear rails, and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axis.
• Built to handle larger 2.25 HP routers with 3.5” barrel diameter like DeWalt 610, 616, 618, PC 890 Series, Bosch 1617 or 1618 (router sold separately)

Included:

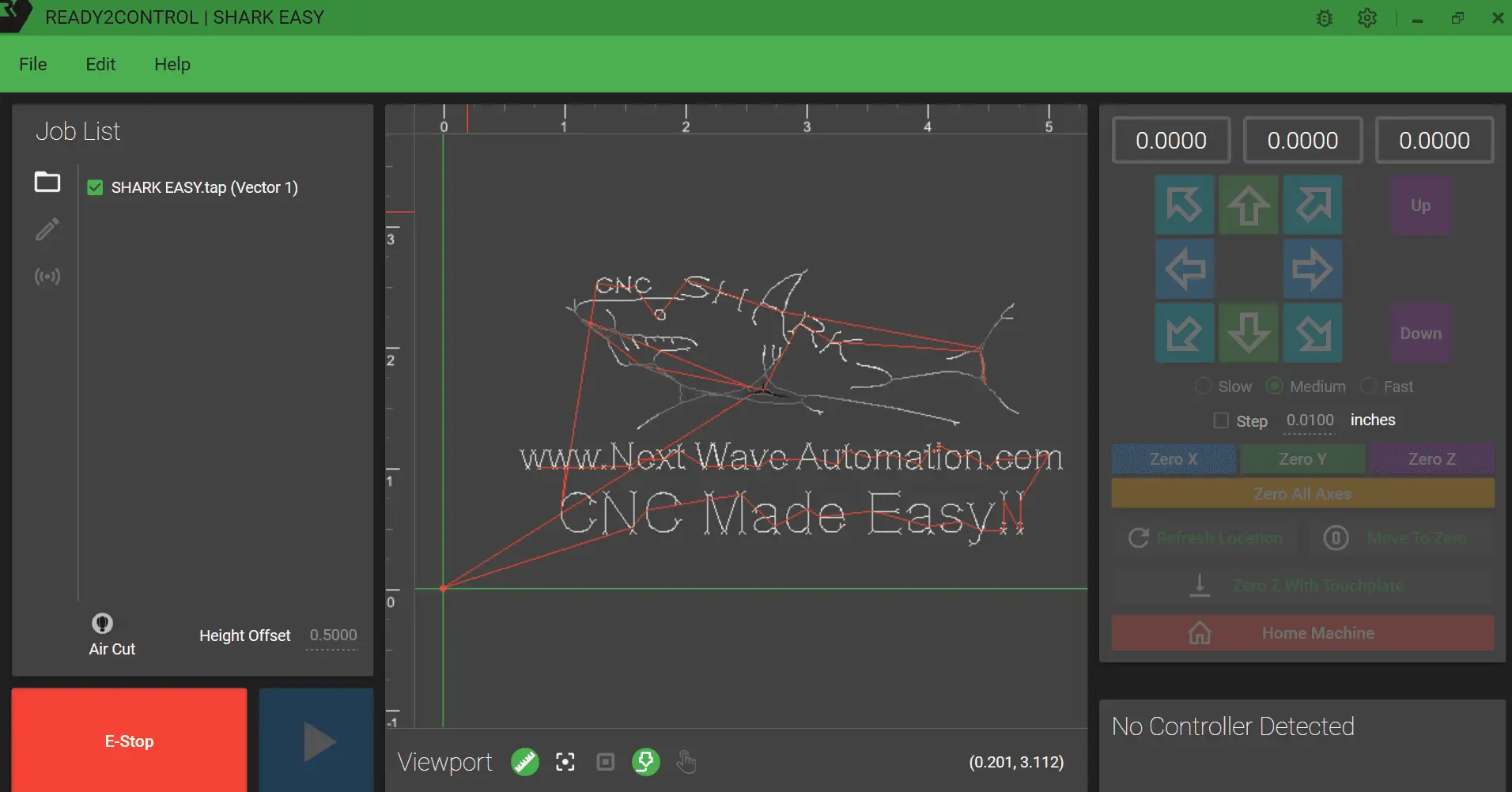

• Ready2Control Software– Fully control your machine with a PC.

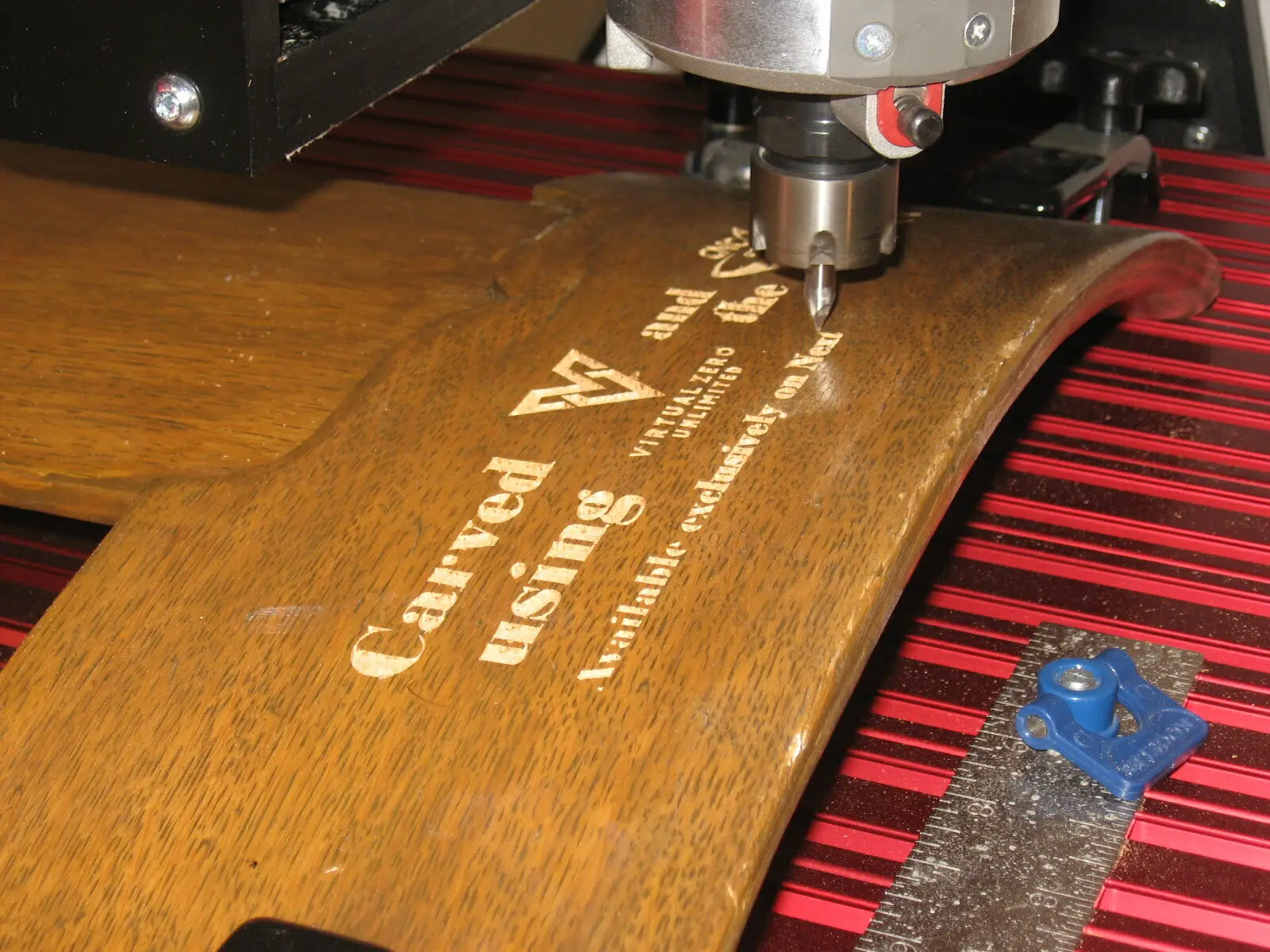

• Virtual Zero Unlimited, $149 value, this patented Next Wave exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle. (Requires a PC computer with USB 2.0 port (not included))
• Interlocking slotted rigid aluminum table allows virtually unlimited clamp positioning
• Made in USA
• 2 Year Warranty
• U.S. Based Technical Support

Options available:

• The latest edition of Vectric Vcarve Desktop or Pro design software incorporating Cut 3D functionality and Vector Art 3D Sampler Pack.

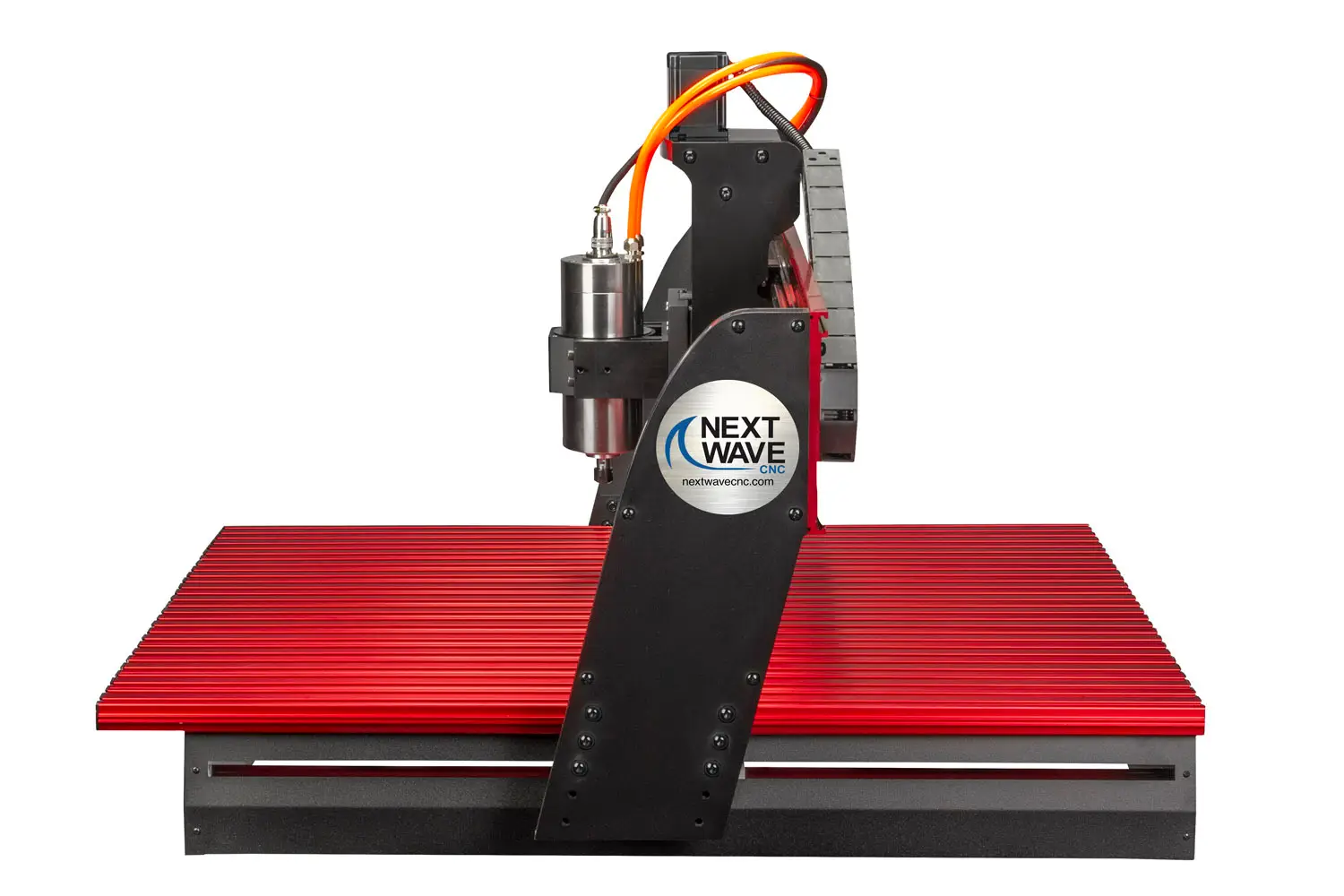

• 2HP and 3HP spindle kits
• Standard LCD Color Pendant or New 10.1 Android tablet with enhanced functionality.

Contact Next Wave CNC to learn more about the Shark HD510 and our other options. To reach our team, please call (419) 318-4822 or email support@nextwavecnc.com.

Click here to view HD510 Manual

Contact Next Wave CNC to learn more about the Shark HD510 and our other options. To reach our team, please call (419) 318-4822 or email support@nextwavecnc.com.
