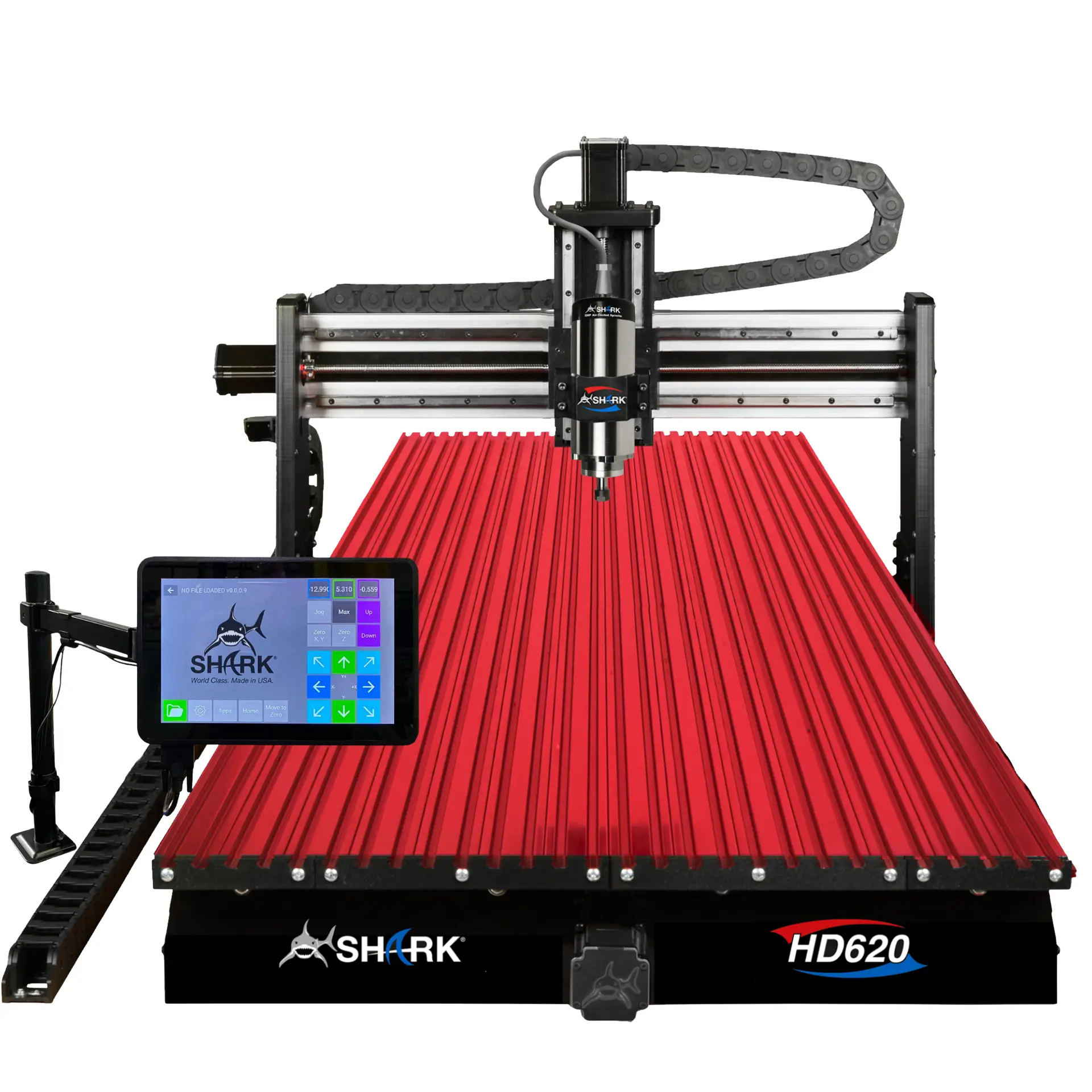

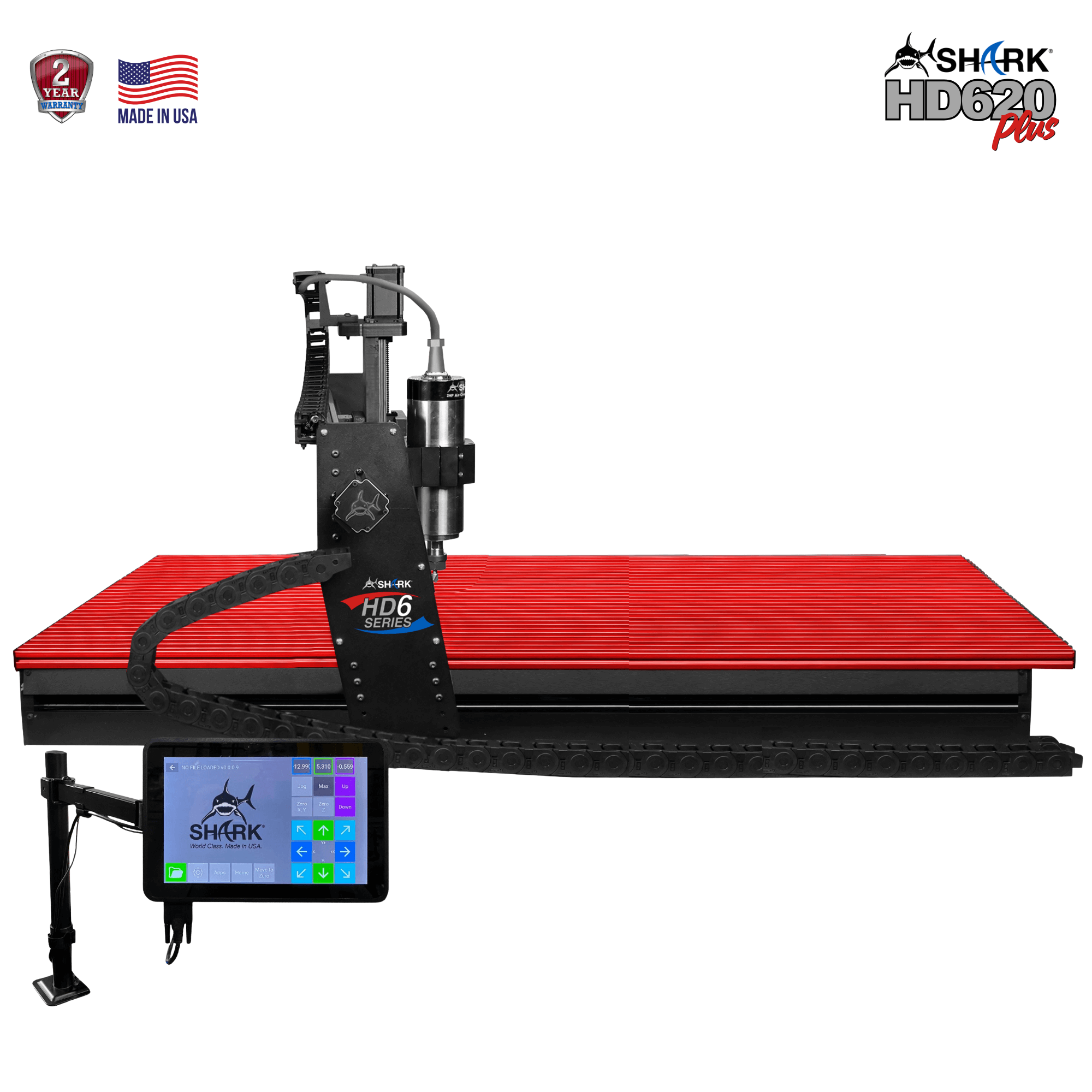

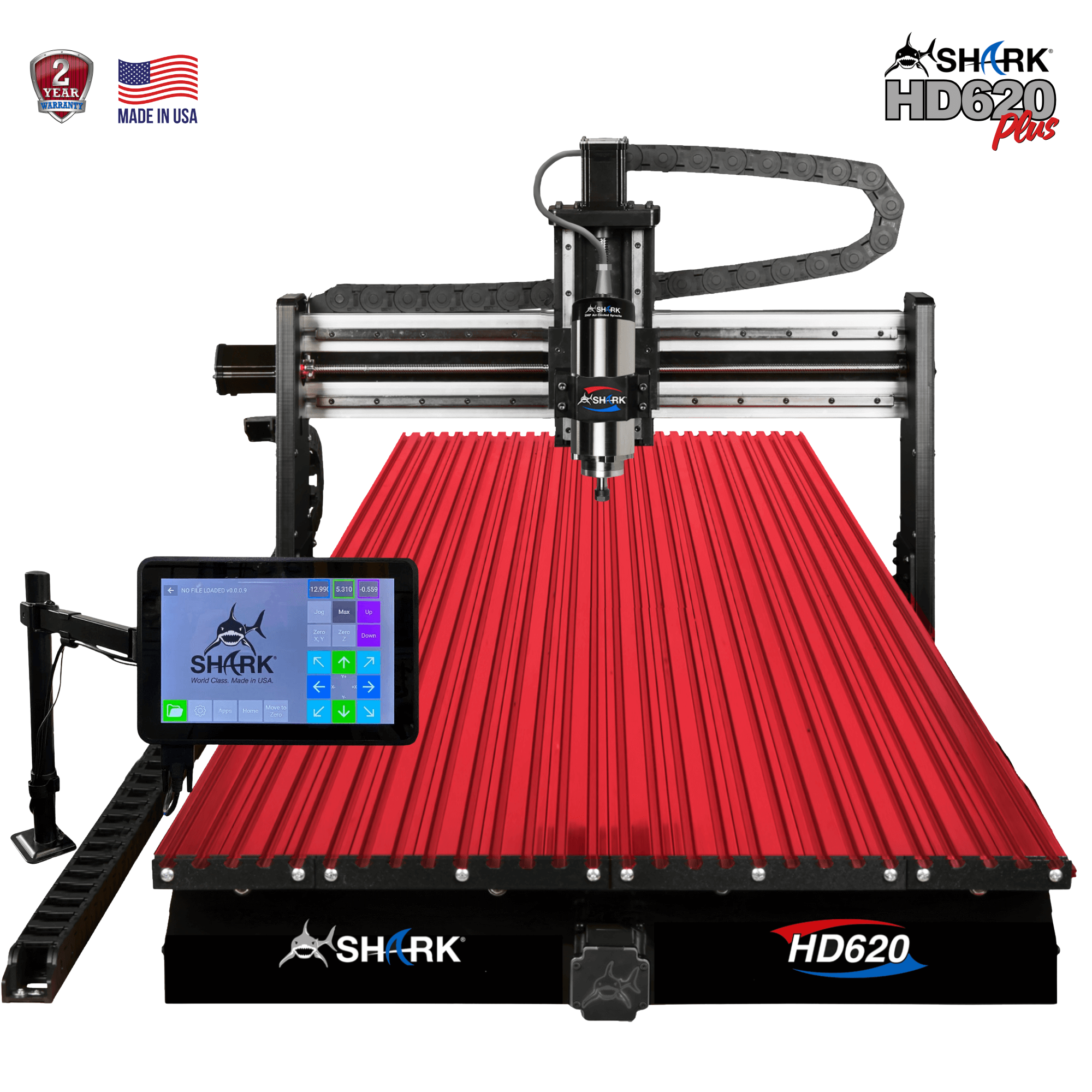

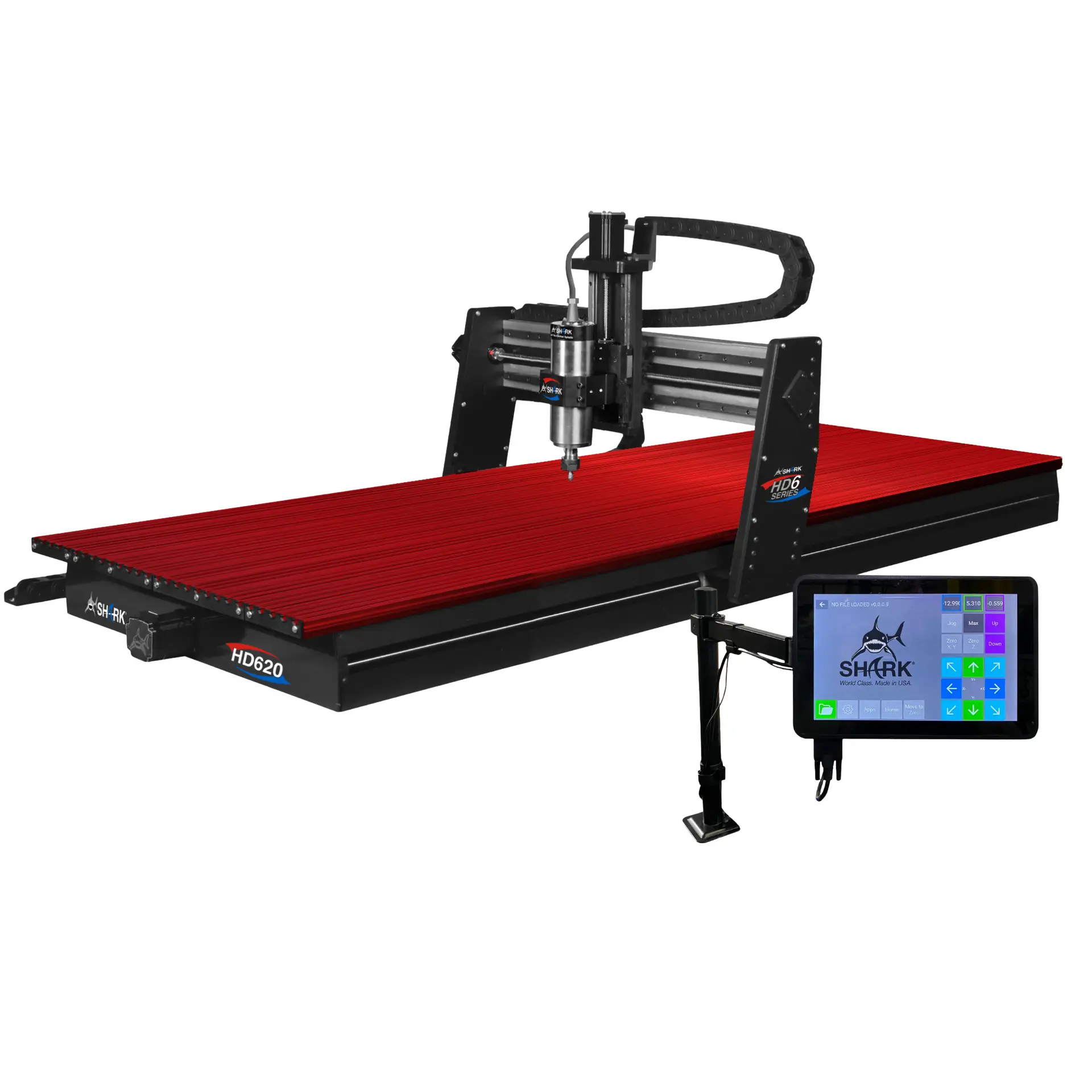

Shark HD620® PLUS

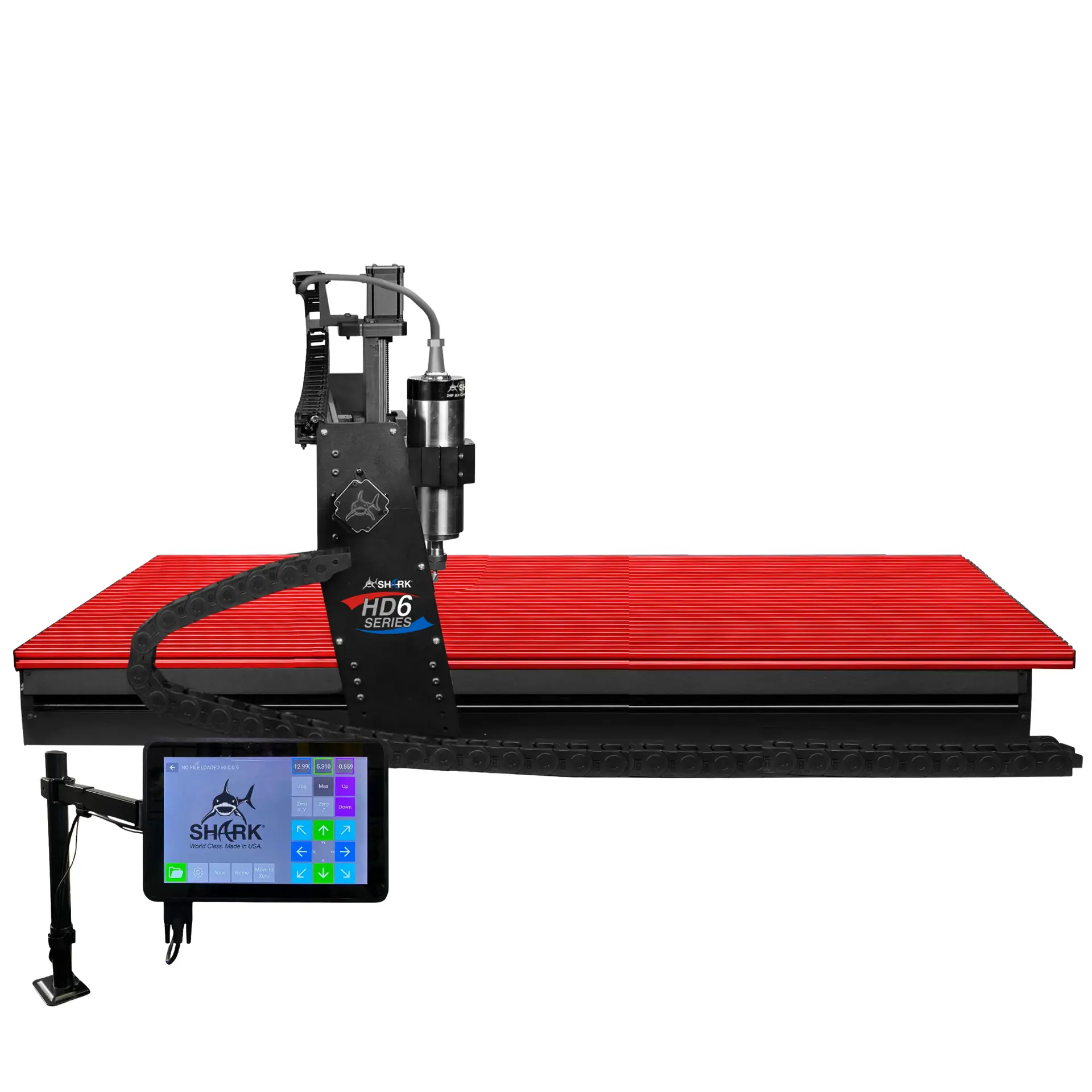

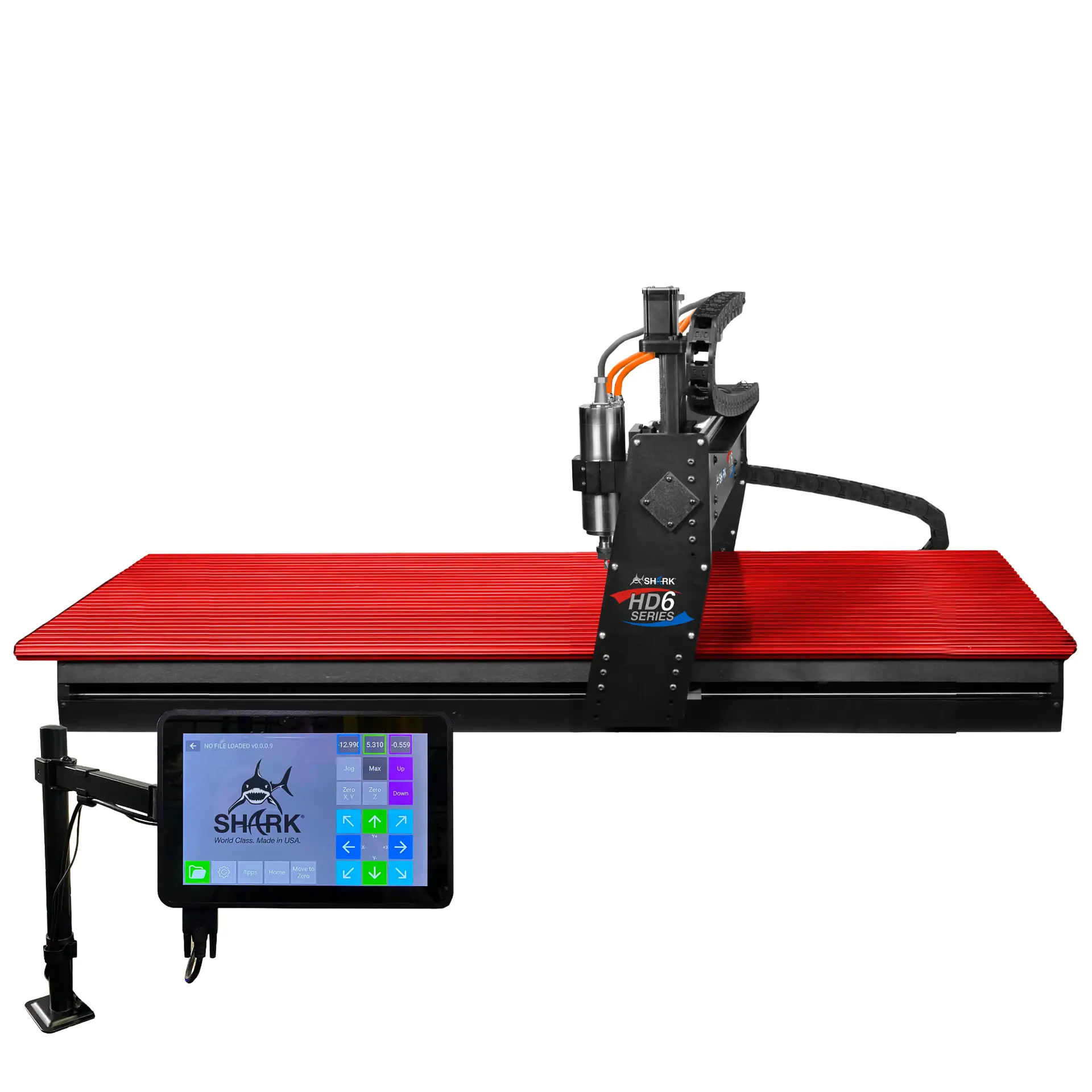

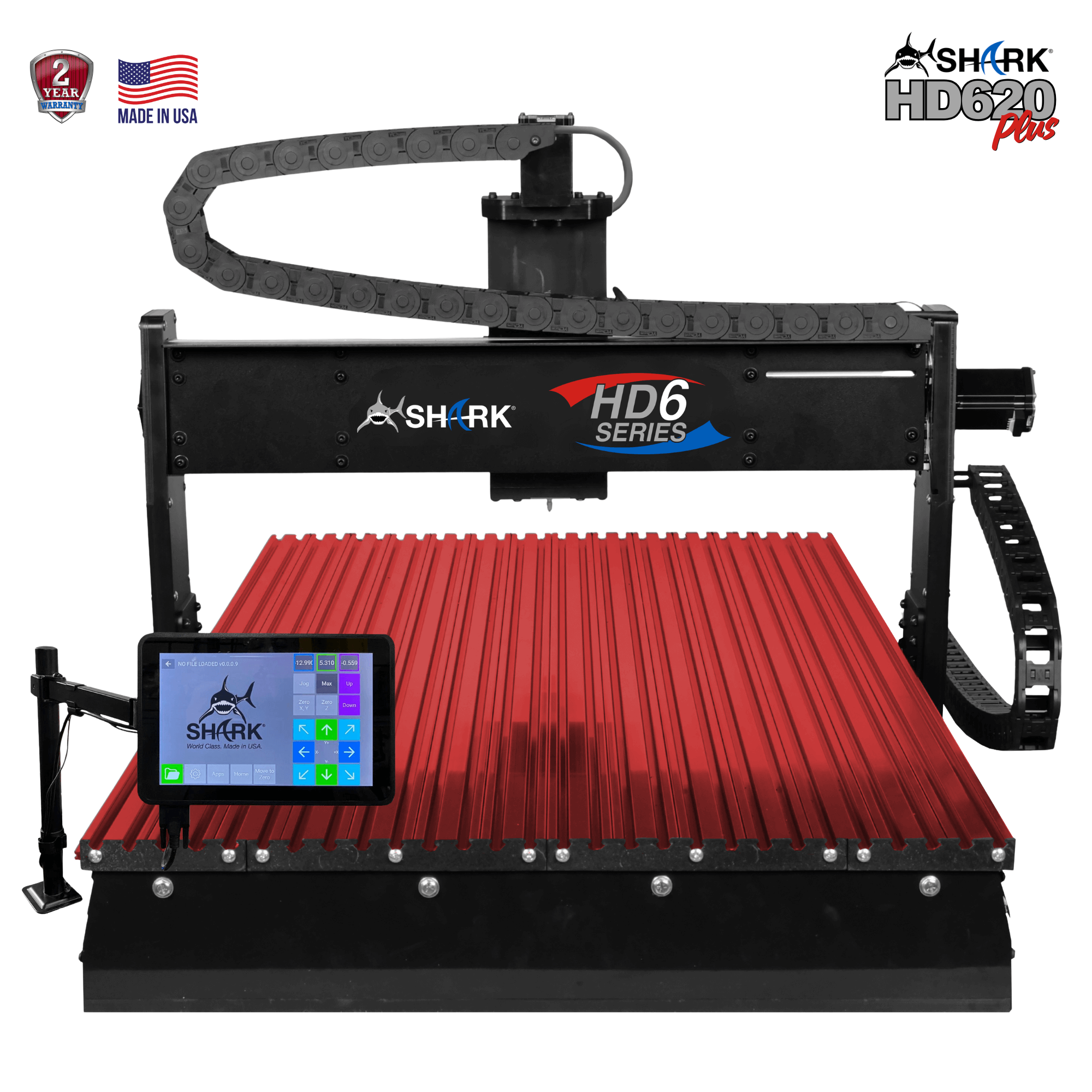

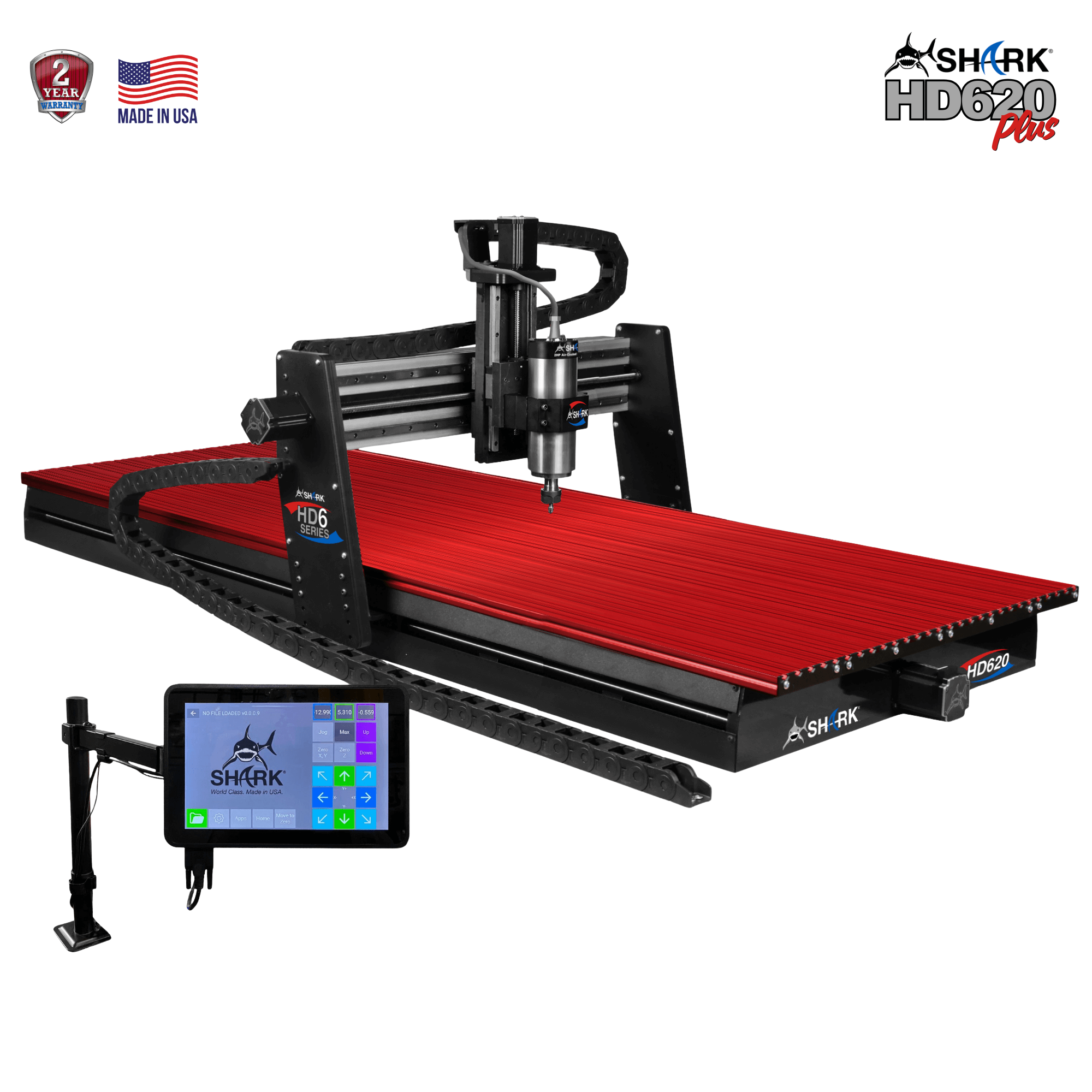

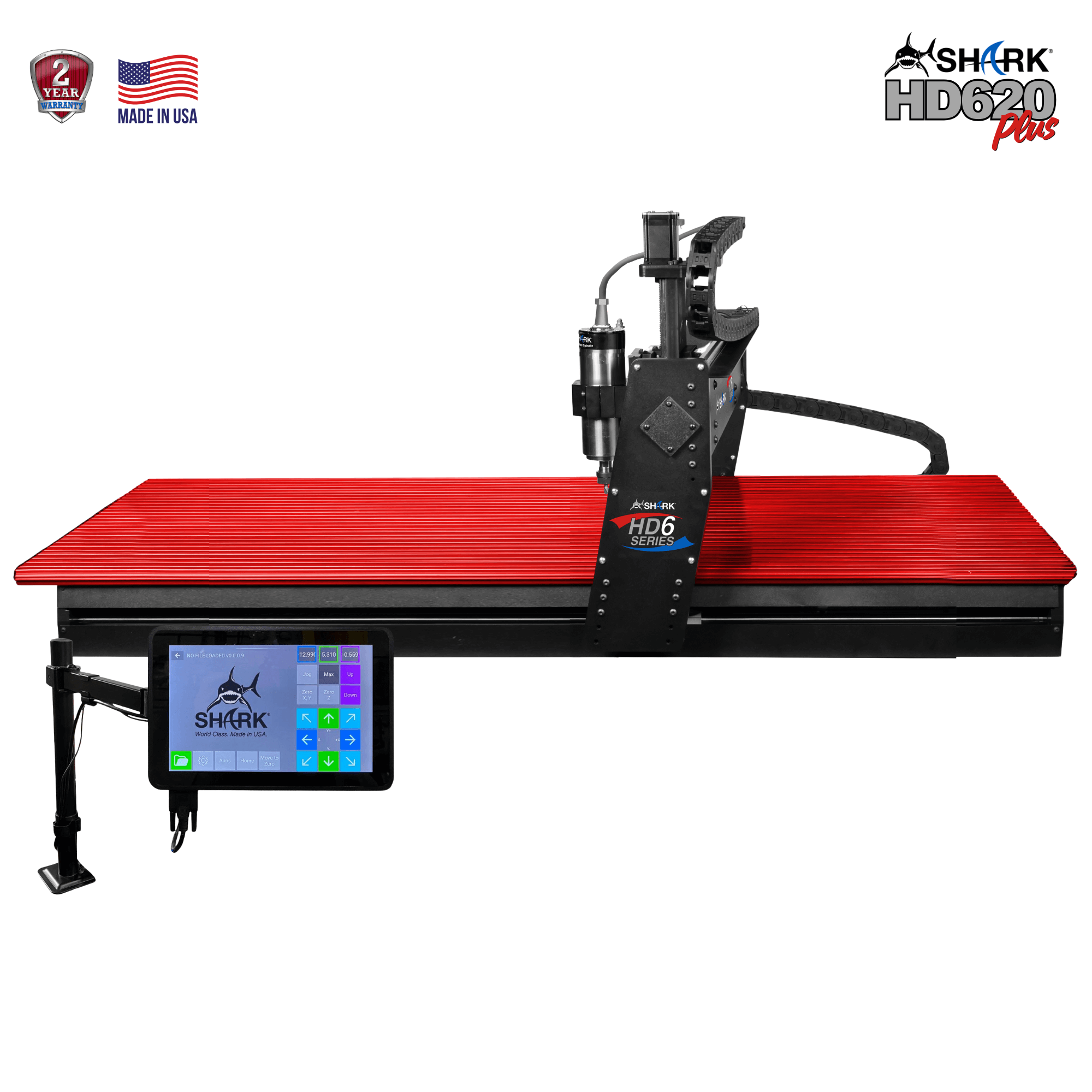

Shark HD620® Plus – The Next Evolution in CNC Precision!

More Power. More Precision. More Possibilities.

With nearly 20 years of experience in CNC manufacturing, Next Wave CNC understands what matters most to users. Building on the proven success of our HD5 models, the new Shark HD620® Plus is designed to excel in both home workshops and demanding production environments—delivering powerful, next-level performance.

Key Features

• Expanded Cutting Area – 50” x 25.75” x 7” for tackling larger, more complex projects with ease.
• Heavy-Duty Build – 28” x 63” table with linear gantry rails for uncompromising stability.
• Aluminum Spindle Cradle – Designed for any spindle motor with 80mm barrel diameter.
• Powerful 2hp Air Cooled Spindle  – Includes digital control and 1/4″ & 1/8″ collets.
• 10.1 Android Pendant upgrade  – Large screen, onboard memory, full CNC control at your fingertips.
• All-New Gantry Design – Engineered for superior accuracy and long-term reliability.
• Upgraded Lead Screws – Precision components that allow for higher cutting speeds.
• Precision-Ground, Vibration-Dampening Couplers – Ensures smoother operation and improved cut quality.
• Larger Drag Chain – Accommodates both cables and spindle hoses for a cleaner, more organized workspace.
• Redesigned Aluminum X-Box – Improved access for tramming and maintenance.
• Removable Side Skirts with Magnetic Interlocks – Simplifies cleaning and access while maintaining safety.
• Upgraded 36V Controller Electronics – Delivers increased power to the motors, enabling speeds up to 600 IPM

Designed to Work with todays Best Software

Your HD620 Plus comes with Vectric’s VCarve Pro, but it’s also compatible with Aspire, Fusion 360, Cam Master, and more.

Expand Your Craft

Unlock even more potential with optional accessories:

• 4th Axis for rotary carving – CLICK HERE
• Laser modules for engraving – CLICK HERE
• Digital probe for 3D duplication – CLICK HERE
• Drawing tool for custom artistic designs – CLICK HERE

Proudly Made in the USA

Built with industrial-grade components including a reinforced aluminum/steel gantry, interlocking aluminum table, linear rails, and anti-backlash lead screws, the Shark HD620® is designed to last. Supports routers like DeWalt 610, 616, 618, PC 890 Series, Bosch 1617/1618, or upgrade to one of Next Wave’s Precision Spindle kits (sold separately).

Included:

• Vectric VCarve Pro (sku 20030 $699 value)

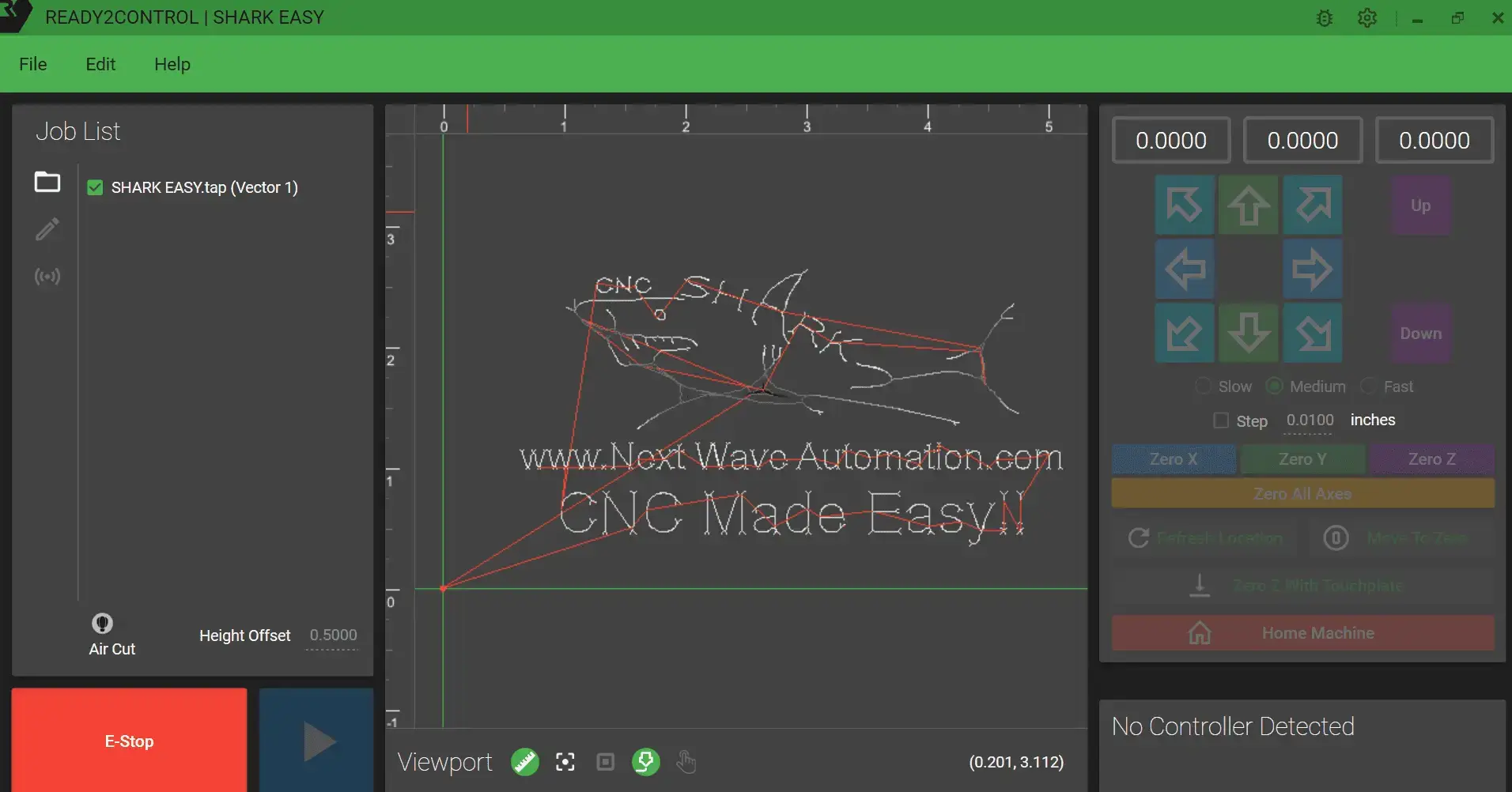

• Ready2Control Software

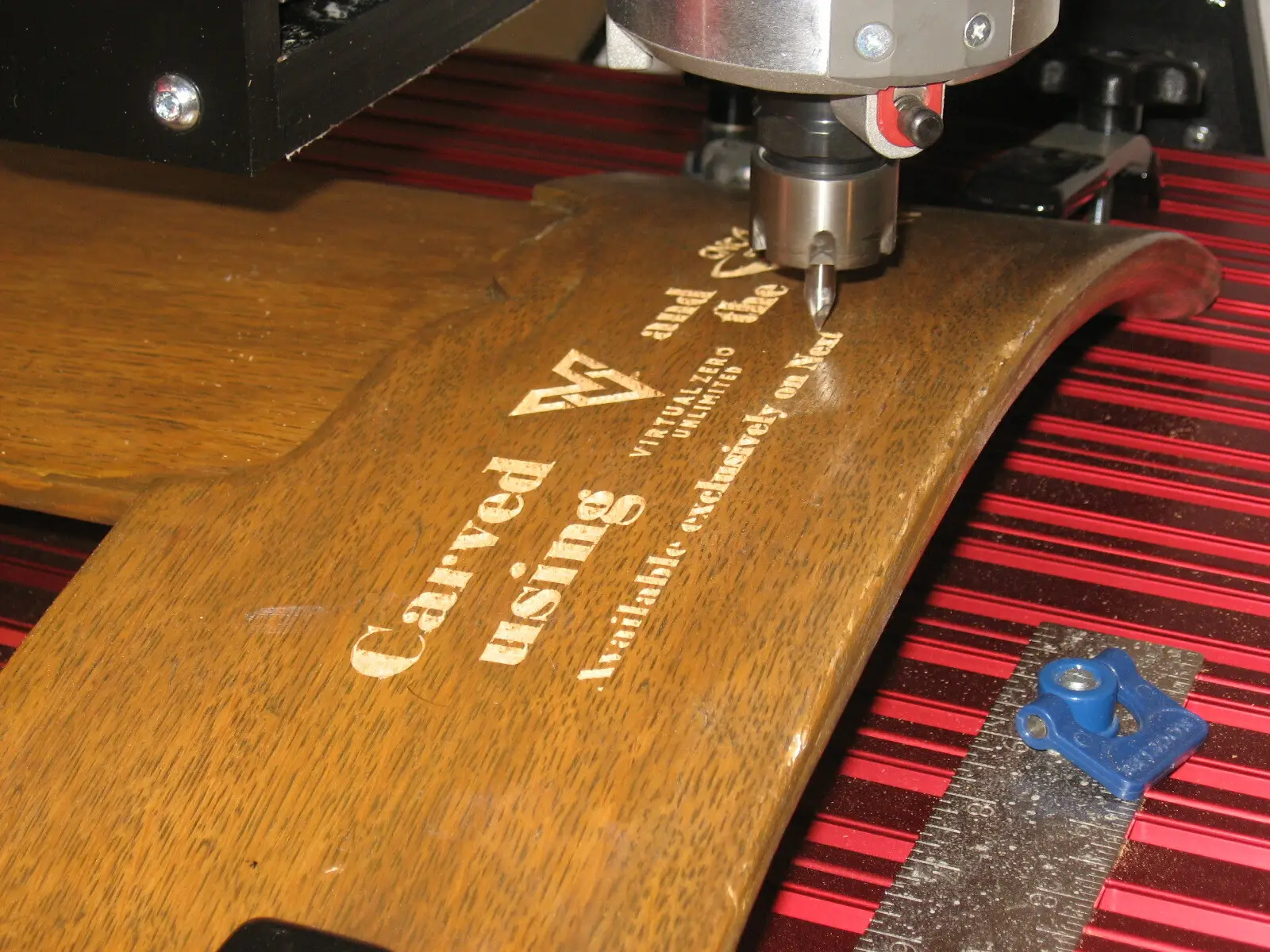

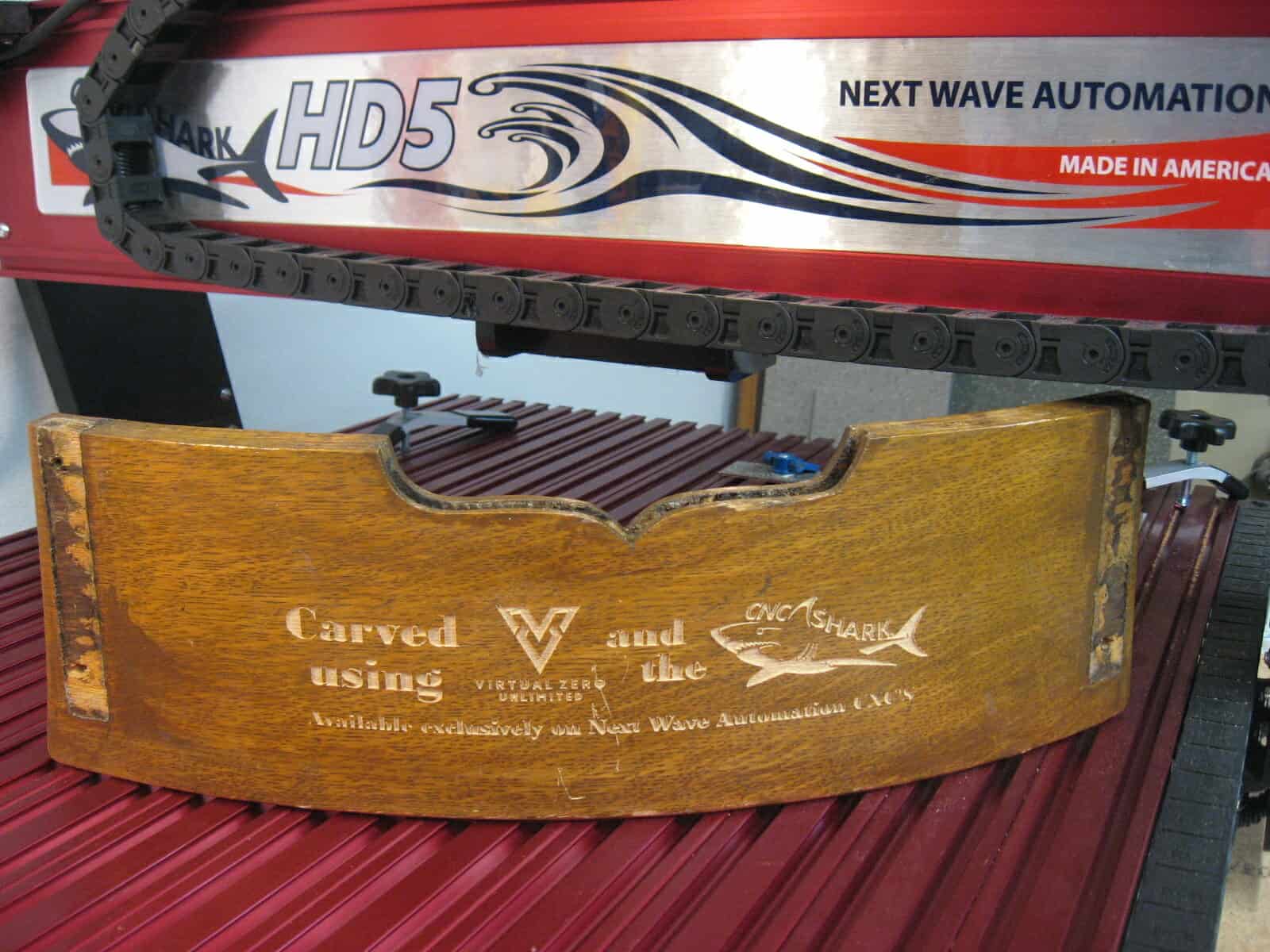

• Virtual Zero Unlimited® (sku 21205 $149 value) this patented Next Wave CNC exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed workpiece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle.
• 2hp digitally controlled air cooled spindle (sku 20199 $699 value)
• 10.1″ Android Pendant upgrade (sku 21260 $499 value)
• Interlocking rigid aluminum table
• 90 degree Carbide V-bit for sign carving
• 2- premium Hold down clamps
• 2-Year Warranty & U.S.-Based Technical Support

Whether you’re starting your CNC journey or upgrading to a more powerful platform, the Shark HD620® Plus puts precision, durability, and flexibility right at your fingertips.

Review the HD6 Manual HERE

Contact Next Wave CNC to learn more about the Shark HD620 and our other options. To reach our team, please call (419) 318-4822 or email support@nextwavecnc.com.
