SHARK SD110®
Includes FREE VCarve Desktop Software Save $349
Share this product:
Product Details

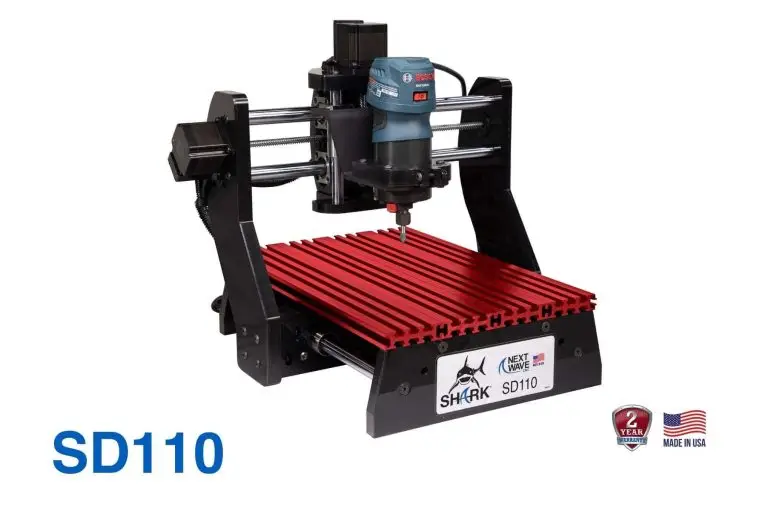

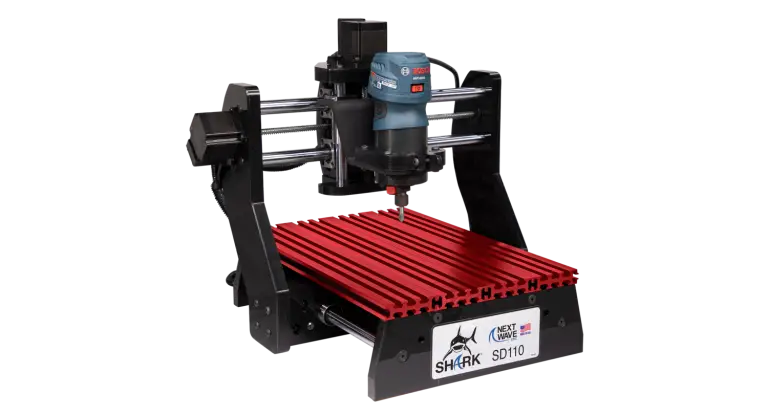

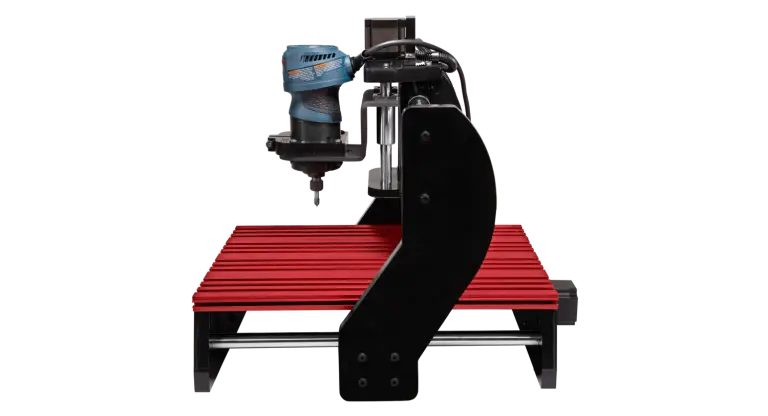

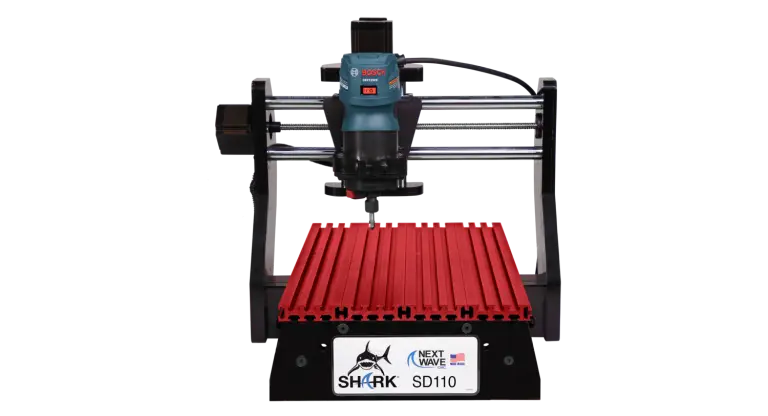

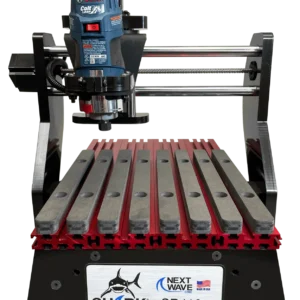

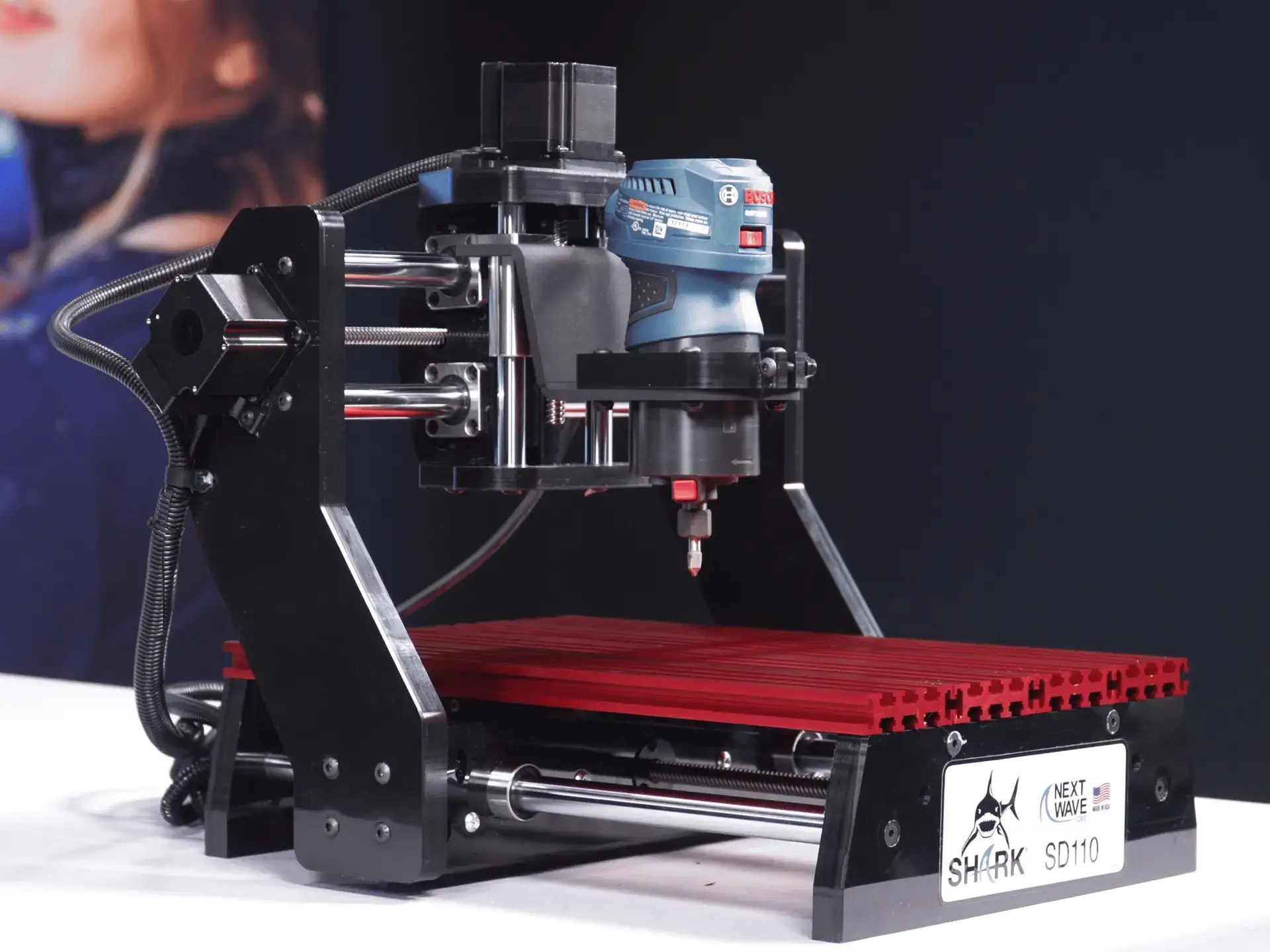

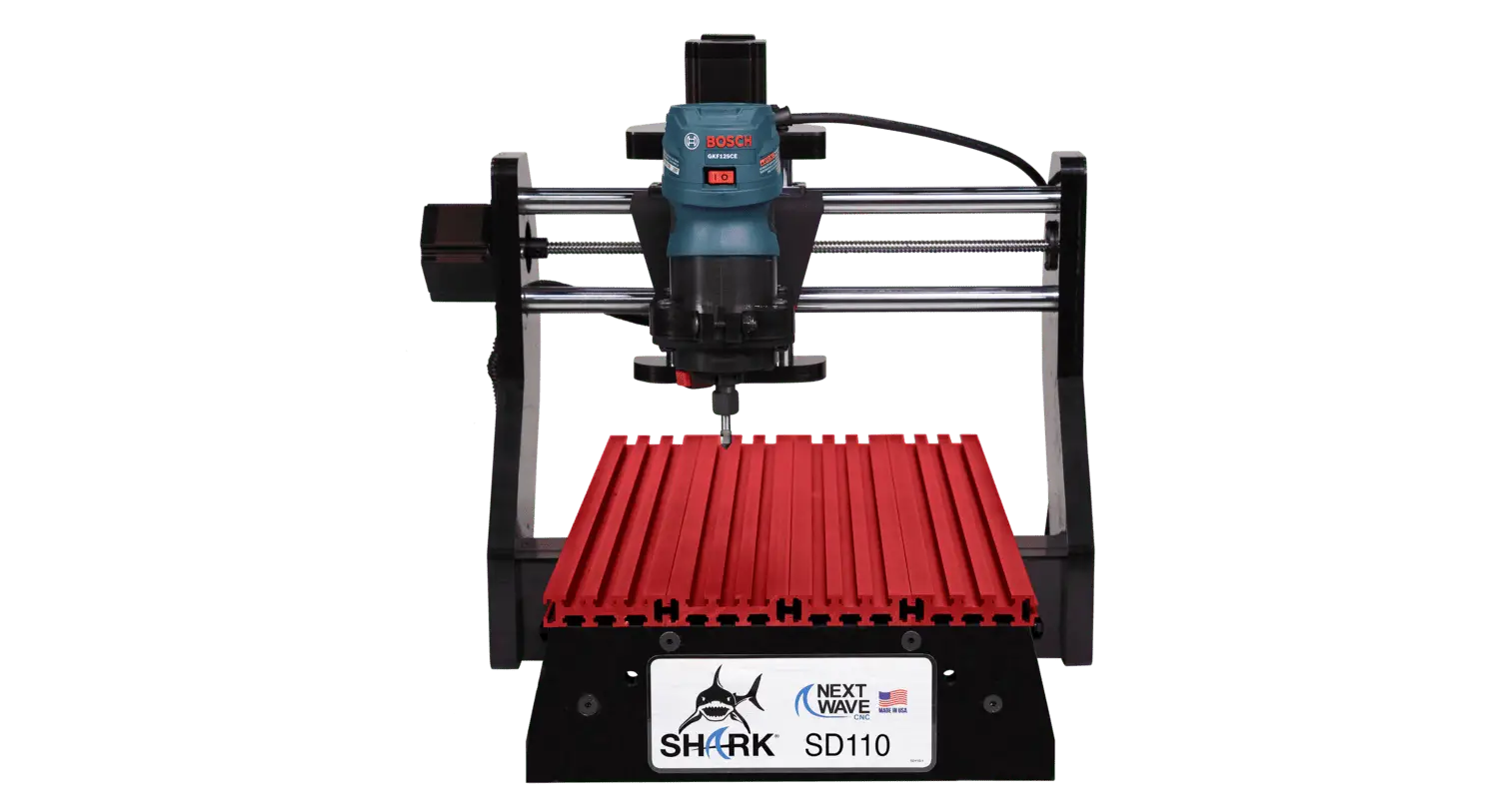

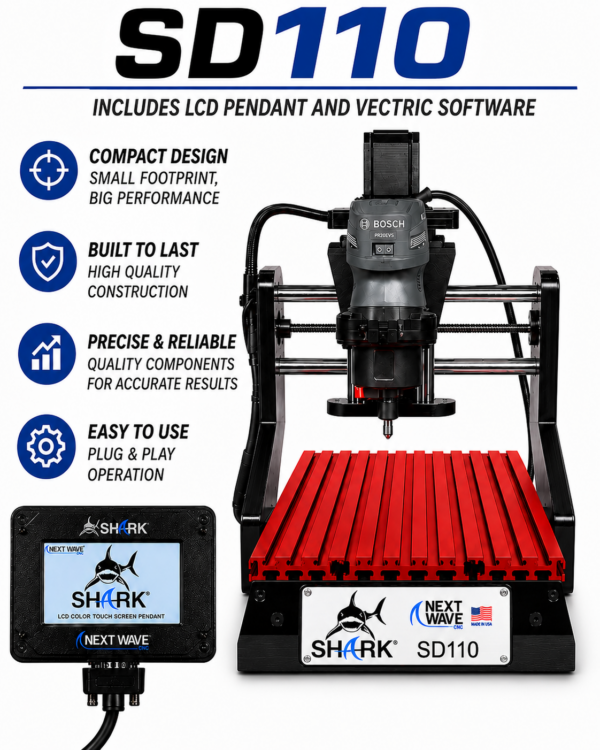

The Next Wave Shark SD110® compact CNC machine is a perfect addition to any workshop with limited space. This tool gives you the ability to produce complex designs with accuracy and precision.

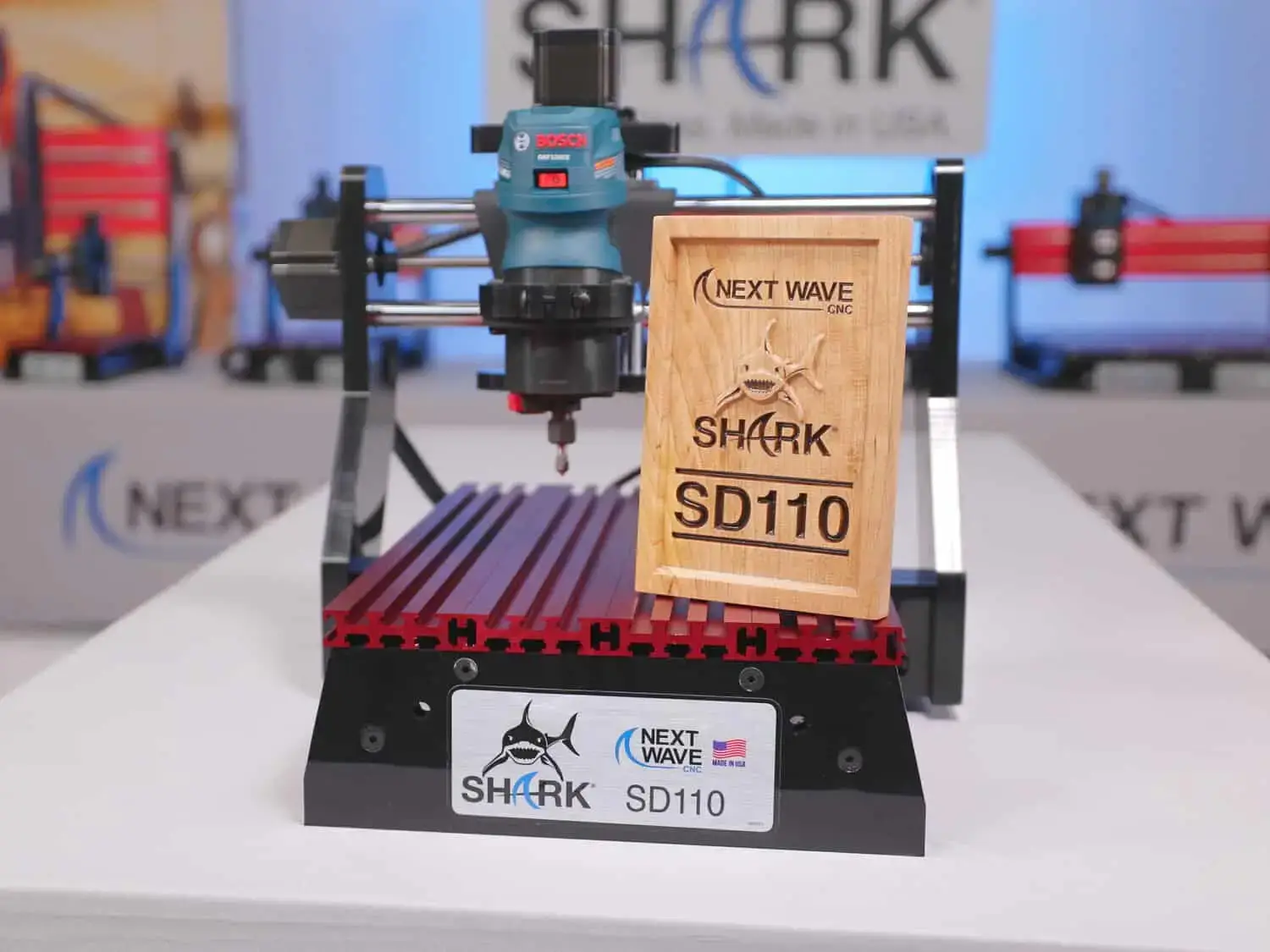

The bonus of a compact machine is that it requires less space than the standard CNC. The Shark SD110® CNC features a compact 12” x 18” table designed for projects such as carving plaques or signs, ornamental boxes, and precision parts machined from wood, soft metals, or plastics.

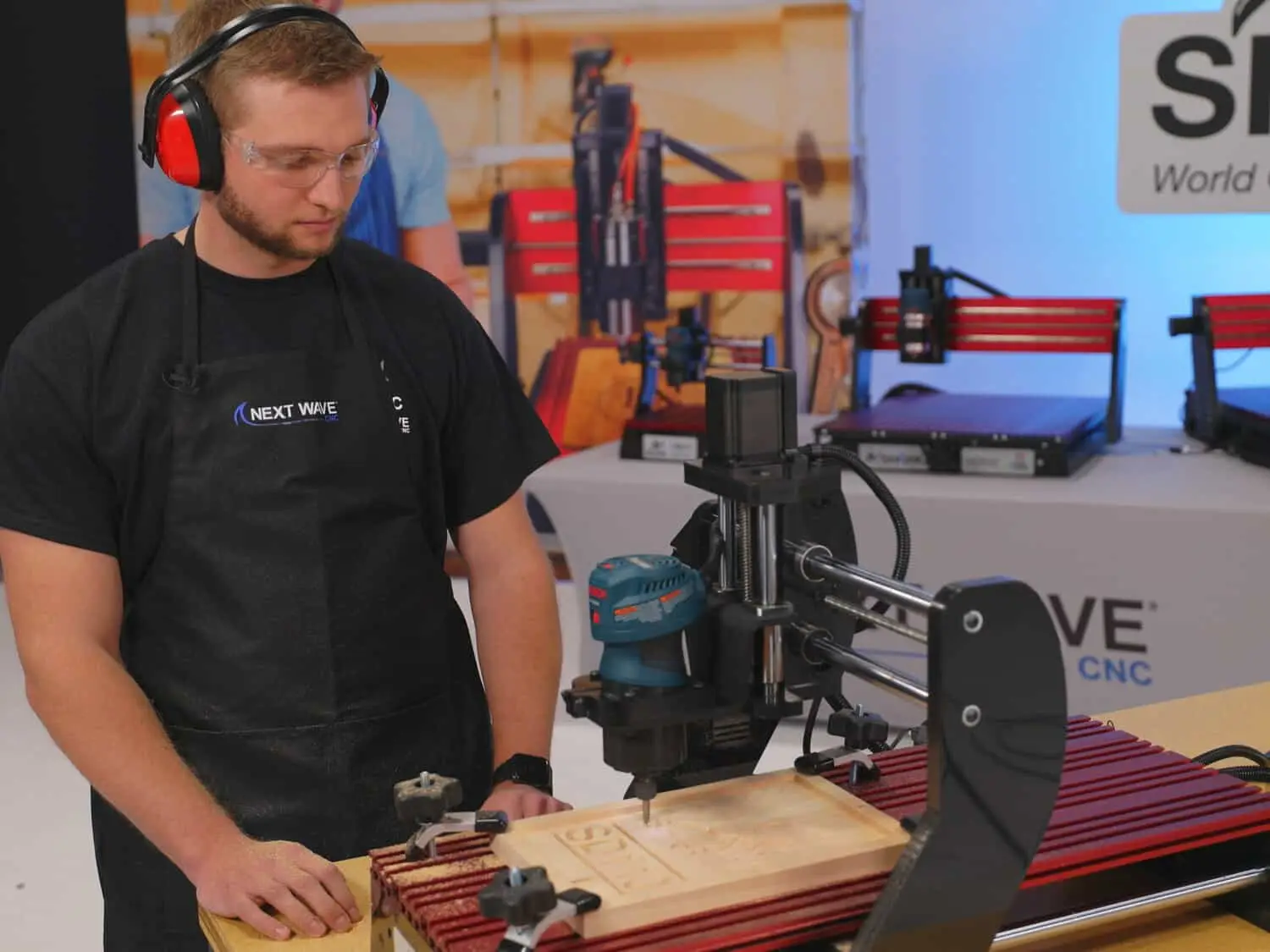

Using our included 3D carving capability and a 3D model library, you can cut beautiful relief carvings, intricate inlays, and create exquisitely detailed engravings with ease. The incredible accuracy of the Shark SD110® even allows customers to engrave custom circuit boards. A tight footprint means the entire machine easily fits under or on one end of your workbench.
The Shark SD110® offers two control options.

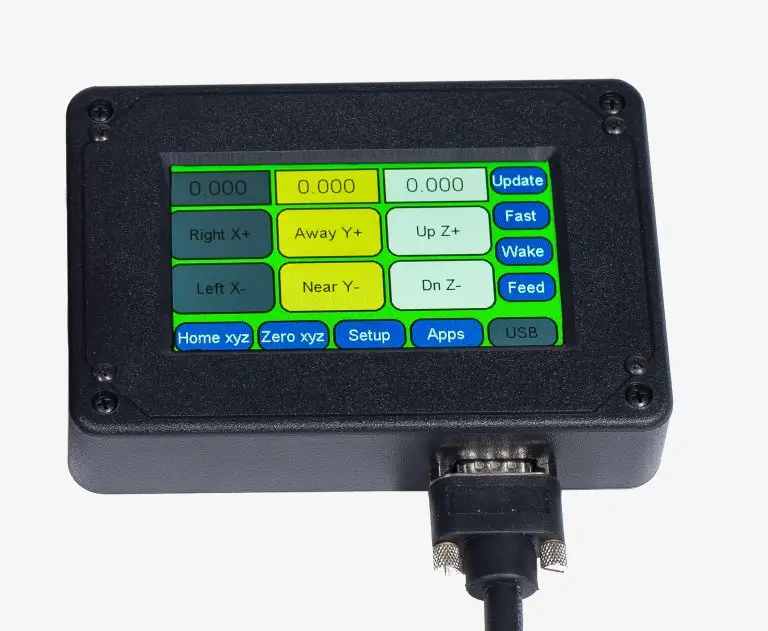

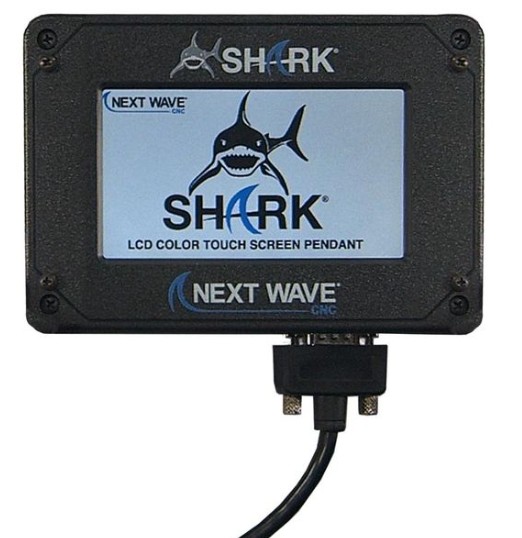

1. Using the included Vectric VCarve Desktop Design Software, you create your project and transfer it to a USB drive which plugs directly into the LCD pendant. The convenient touch screen Pendant interface eliminates the need for a computer controlling the CNC in your shop.
2. For more control interactivity you can run the Shark SD110® from your computer with the Ready2Control program. This lets you use the exclusive patented Virtual Zero Unlimited® program. Our program will adjust your design to fit curves and angles that would be impossible on other brands of machines. (Computer and flash drive not included). The Next Wave CNC SD110® is made in the USA and includes U.S. based technical support.
The SHARK SD110® has an added feature, the Y axis extends 1” beyond the fixed bed. This will allow clamping and machining on ends of long boards such as box joints or tenons. See the manual for more information.
Specifications:
- Table dimensions: 12” x 18″
- XYZ travel: 12” x 13” x 3”
- Overall dimensions: 19-1/2”W x 20-1/2”L x 18”H
- Interlocking slotted rigid aluminum table allows virtually unlimited clamp positioning.
- Color Touch Screen pendant controller system
- Router on/off is controlled manually.
- Requires a Bosch 1 HP Model PR20, Bosch 1.25 HP, DeWalt 611, Porter Cable 450, or similar style palm router. (router sold separately)
- Ships fully assembled.
- Made in USA
Included:
- The latest edition of Vectric Vcarve Desktop design software $349 Value now incorporating Cut 3D functionality and Vector Art 3D Sampler Pack

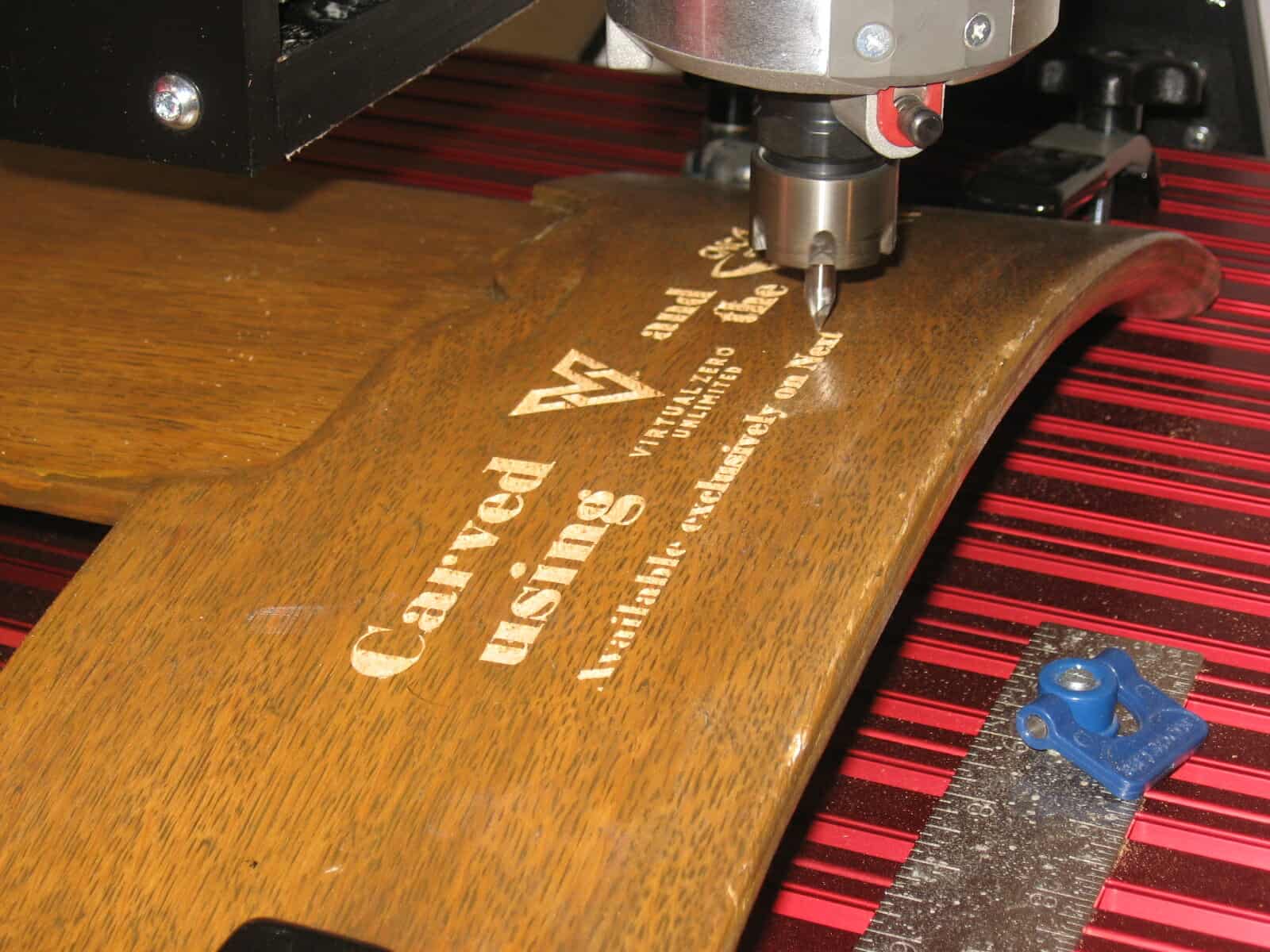

- Ready2Control Software– to control your machine with a PC if desired. Also, Virtual Zero Unlimited, $149 value, this patented Next Wave exclusive software allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle. (Requires a PC computer with USB 2.0 port (not included))
- Includes 2 hold down clamps and a Carbide V Bit.
- 2 Year Warranty
- USA Based Technical Support
15% restocking fee on all CNC Returns
Do you have specific questions about what the Shark SD110 can do? Our knowledgeable team is happy to assist you; call (419) 318-4822 or email support@nextwavecnc.com.
