Which SHARK is right for you?

HD620pro

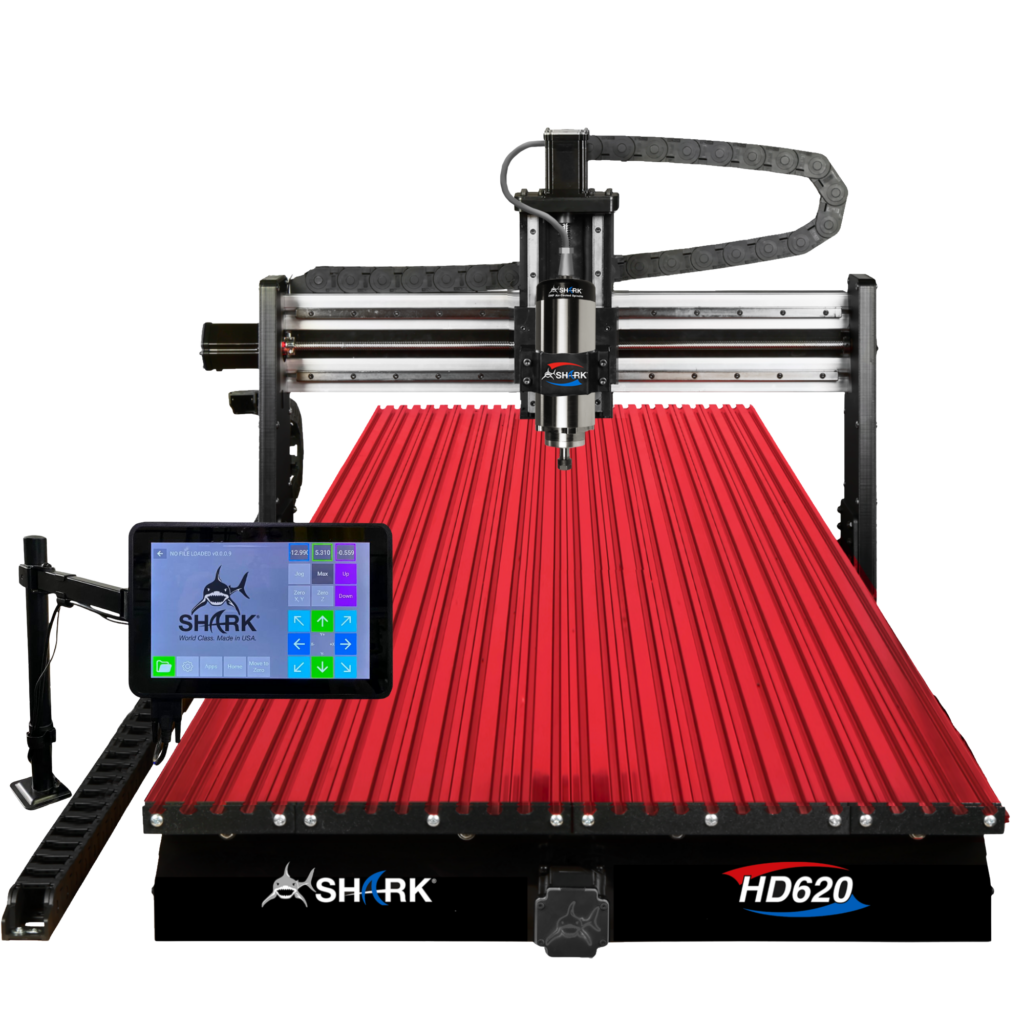

HD620plus

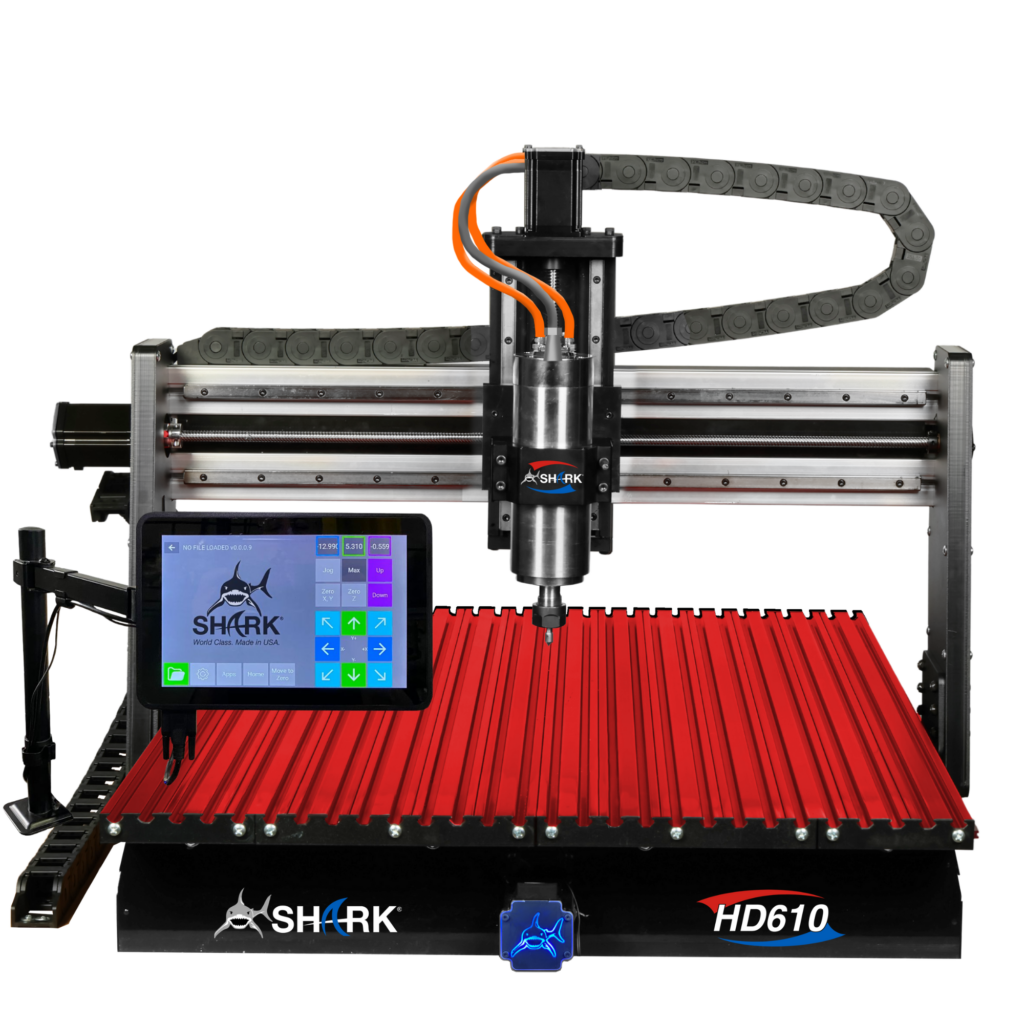

HD610pro

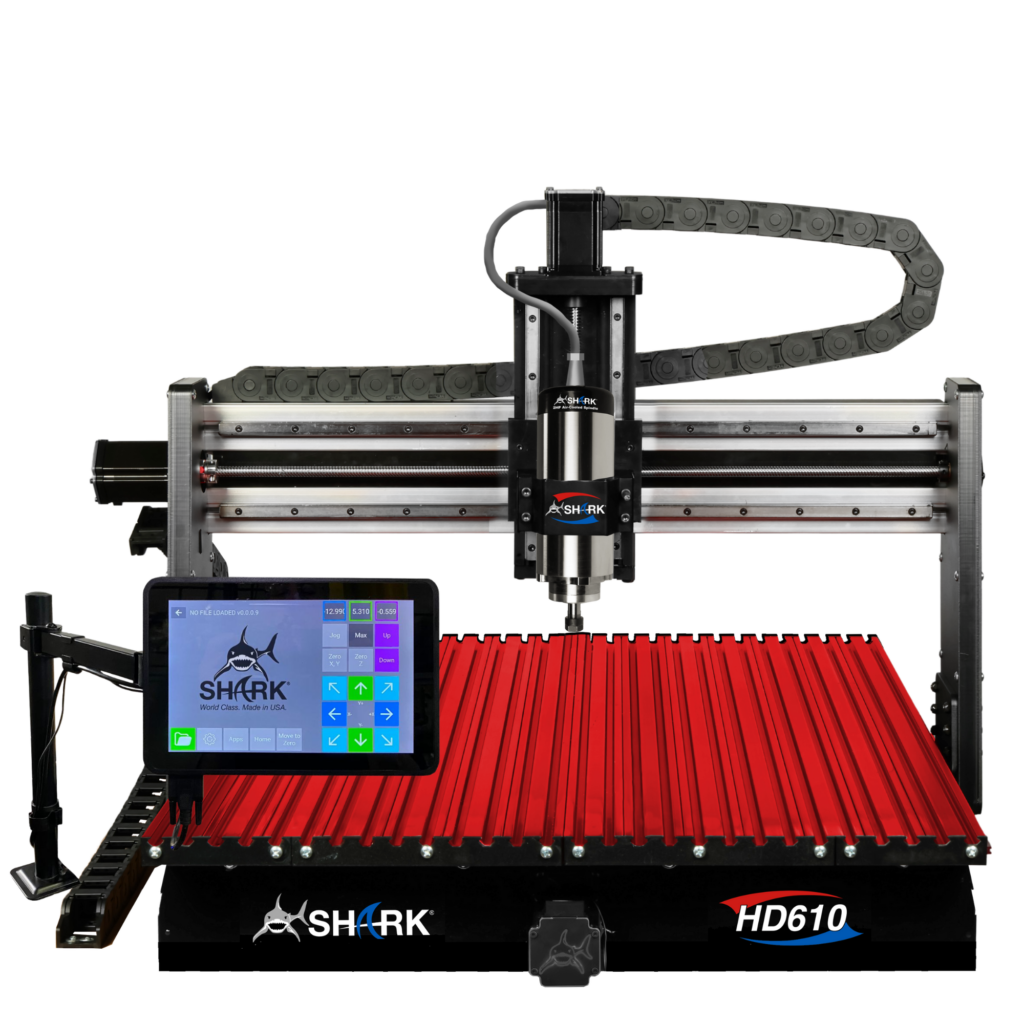

HD610plus

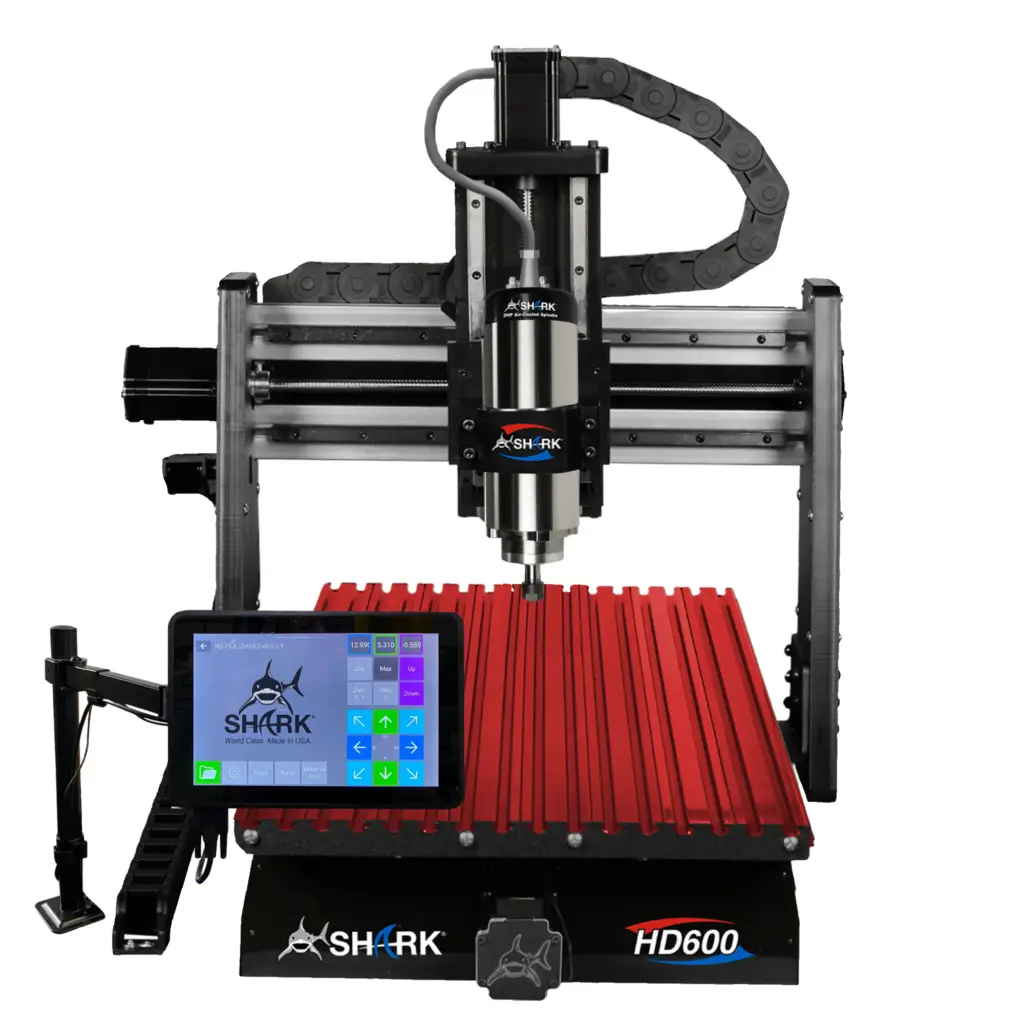

HD600pro

HD600plus

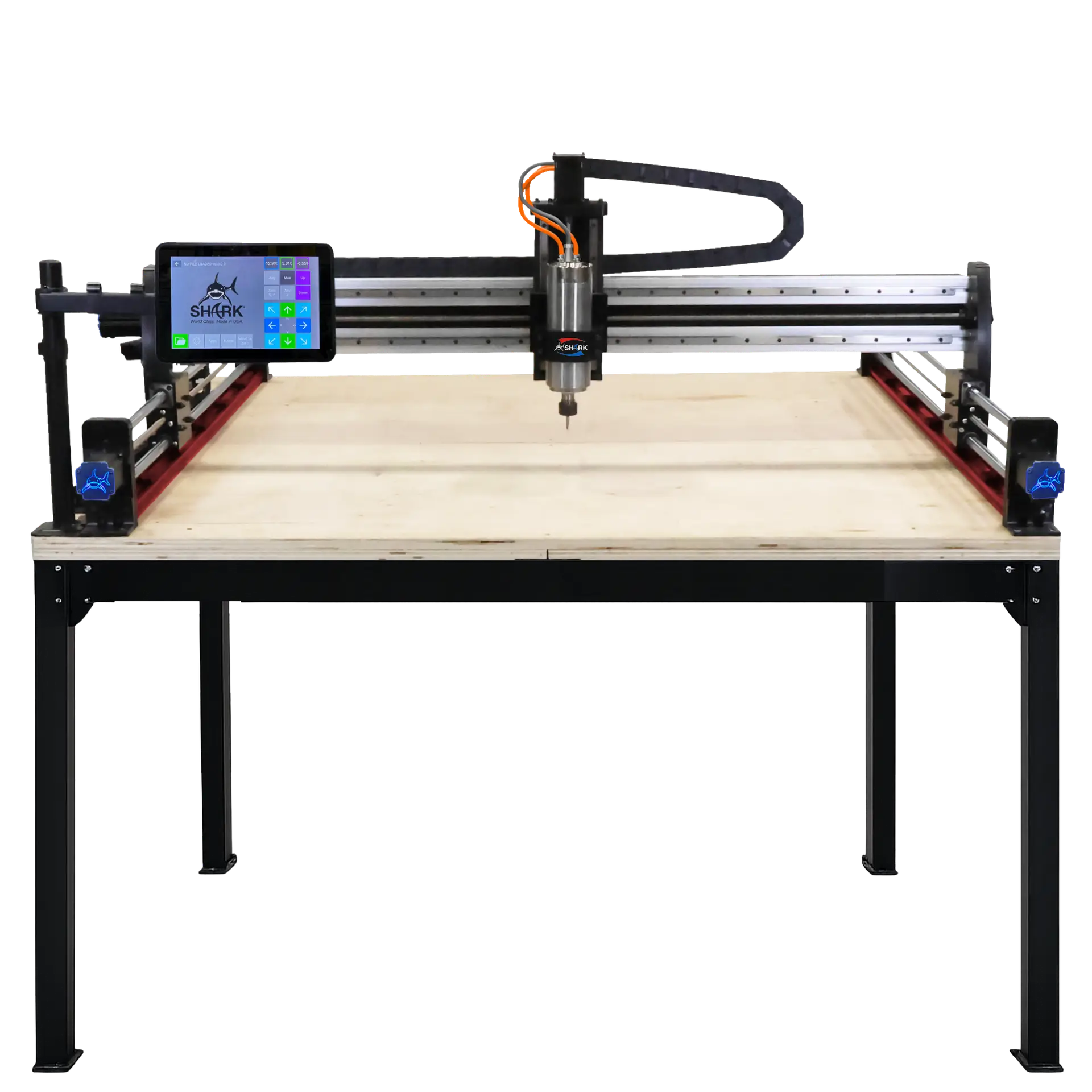

HD644pro

RS1000pro

SD101

SD110

SD120

SHARK HD SERIES

SHARK SD SERIES

Three Configurations to Fit Every Shop

BUY NOW
BUY NOW
BUY NOW

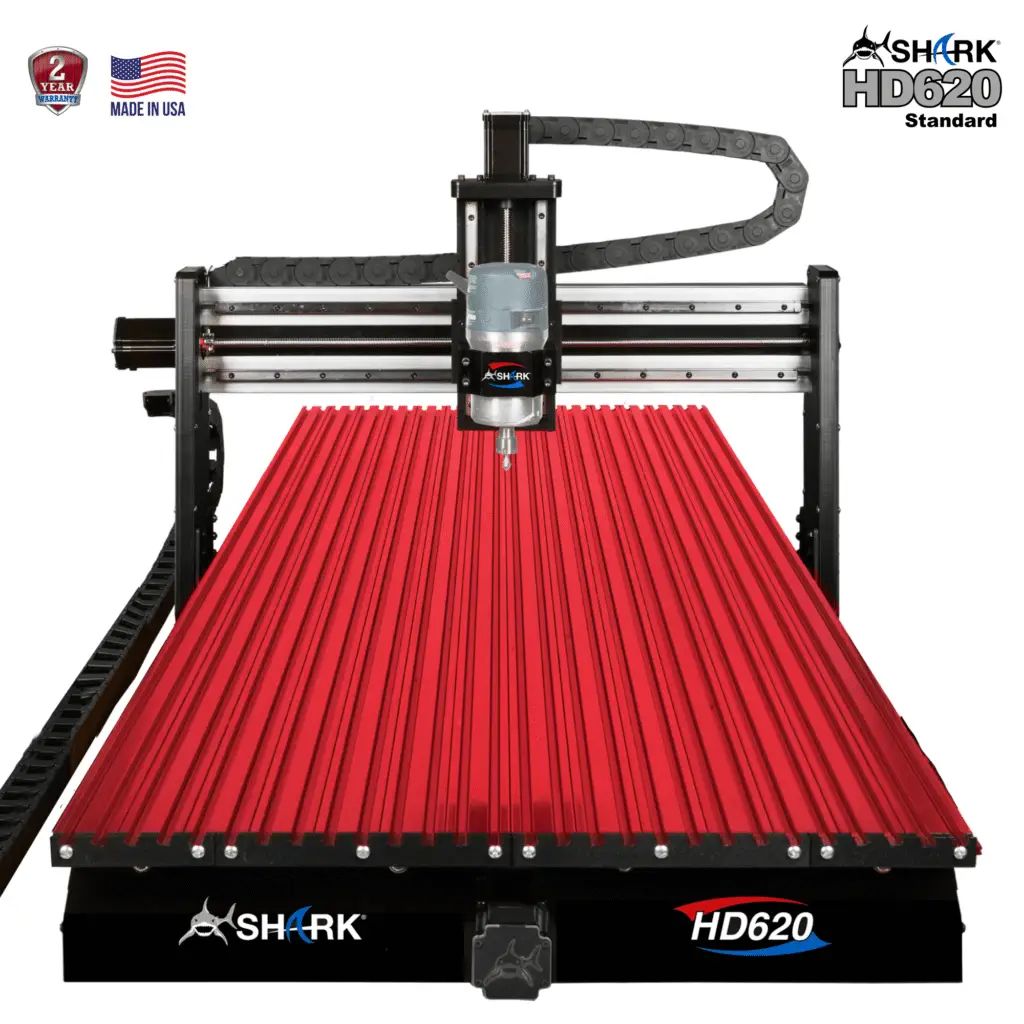

Built on the proven HD5 foundation with significant mechanical and electrical enhancements:


  • All-new gantry design for superior accuracy and reliability
  • Upgraded lead screws for higher speeds
  • Precision-ground, vibration-dampening couplers
  • Larger drag chain to manage cables and spindle hoses
  • Redesigned aluminum Xbox with improved access for tramming and maintenance
  • Removable side skirts with magnetic interlocks for ease of maintenance.
  • Expanded X-axis travel — now 25″ for greater reach and versatility
  • Upgraded 36V controller electronics, with increased cooling, adding additional power to motors, resulting in rapid movements speeds up to 1000 IPM when upgraded with the optional closed loop system. Non closed loop systems are capped at 600 IPM rapid movement.
BUY NOW
BUY NOW
BUY NOW

Built on the proven HD5 foundation with significant mechanical and electrical enhancements:

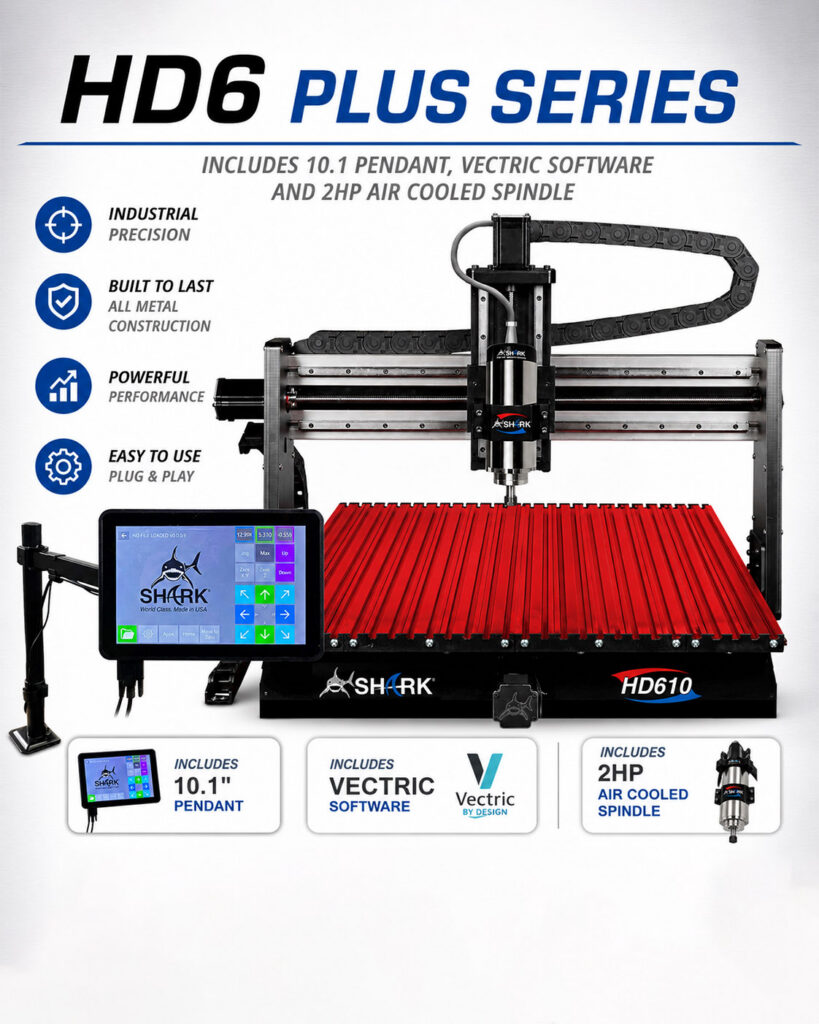

Includes all Standard features, plus:
  • Powerful 2HP air-cooled spindle with digital interface
  • Oversized 10.1” touchscreen pendant for enhanced control
BUY NOW
BUY NOW
BUY NOW

Built on the proven HD5 foundation with significant mechanical and electrical enhancements:

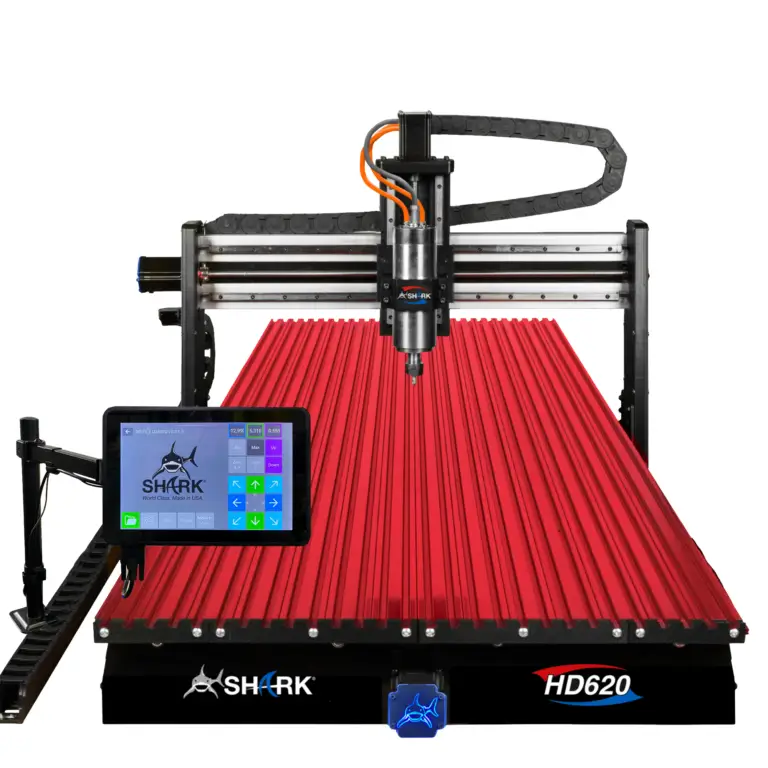

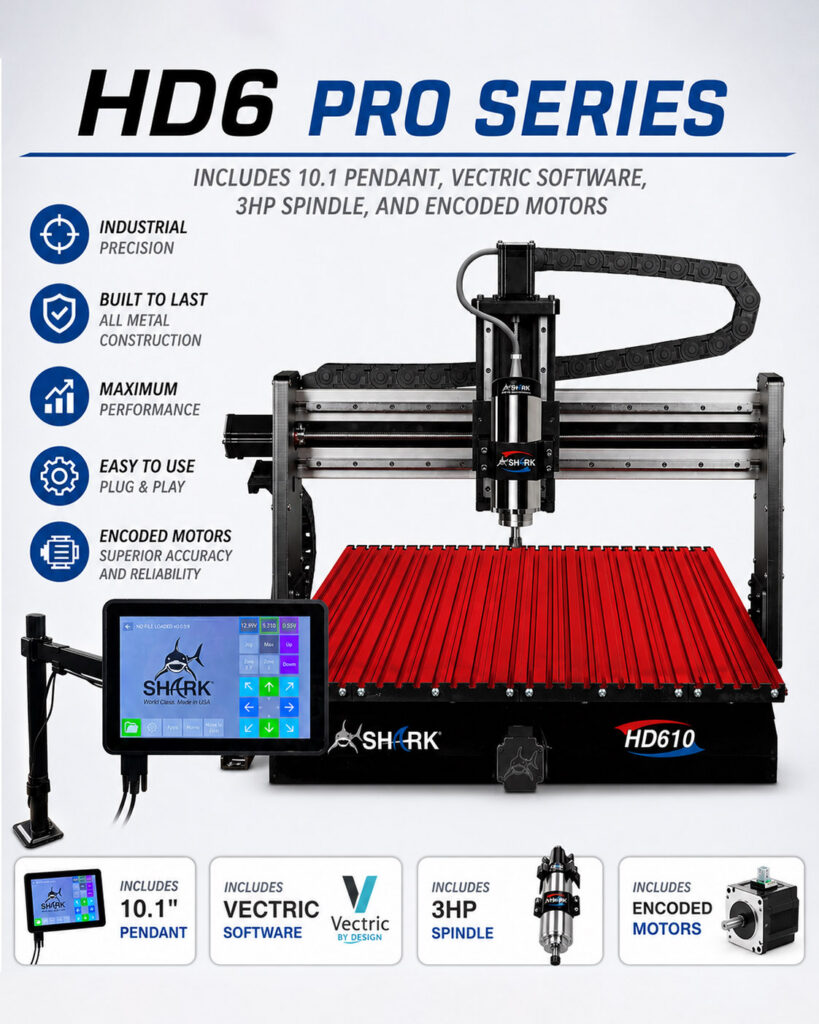

Includes everything in Standard and Plus, plus:
  • Upgraded to a 3HP water-cooled spindle which includes both ¼” & ½” collets and digital spindle interface
  • True closed-loop, encoded motor system for superior torque, speed, and precision, accurate to +-0.001 inches. Speeds up to 1,000 inches per minute.
BUY NOW
  • Large 4×4 Work Area
  • Featuring a 3HP water-cooled spindle which includes both ¼” & ½” collets and digital spindle interface
  • True closed-loop, encoded motor system for superior torque, speed, and precision, accurate to +-0.001 inches. Speeds up to 1,000 inches per minute.

HD Series Features

Compatible Accessories

Shark HD520

• Includes VCarve Pro Software ($699.99 Savings) • Aluminum InterLoc T-Slot Bed 28'' x 63” • XYZ travel: 25'' x 50'' x 7' • Overall dimensions: 36-1/4'' W x 63'' L x 24-1/2'' H SHARK® HD520 is fully compatible with the following routers (sold separately): Bosch 1617 and 1618 | Porter-Cable 890 Series | DeWalt 610, 616, 618 SKU 10024 $4999.99

Purchase
Unique Features

SHARK HD510

• Includes Vectric VCarve Desktop • Aluminum InterLoc T-Slot Bed 28'' x 36” • XYZ travel: 25'' x 25'' x 7'' • Overall dimensions: 36-1/4'' W x 38'' L x 24-1/2'' H SHARK® HD510 is fully compatible with the following routers (sold separately): Bosch 1617 and 1618 | Porter-Cable 890 Series | DeWalt 610, 616, 618 SKU 10022 $3999.99

Purchase
Unique Features

SHARK HD500

• Includes Vectric VCarve Desktop • Aluminum InterLoc T-Slot Bed 16'' x 36” • XYZ travel: 13'' x 25'' x 7'' • Overall dimensions: 24-1/4''W x 36''L x 24-1/2''H Shark HD500® is fully compatible with the following routers (sold separately): Bosch 1617 and 1618 | Porter-Cable 890 Series |DeWalt 610, 616, 618 SKU 10032 $2999.99

Purchase
Unique Features

SHARK SD120

SHARK SD110

SHARK SD101

SD101_FT_CUT_111023

SD Series Features

Compatible Accessories

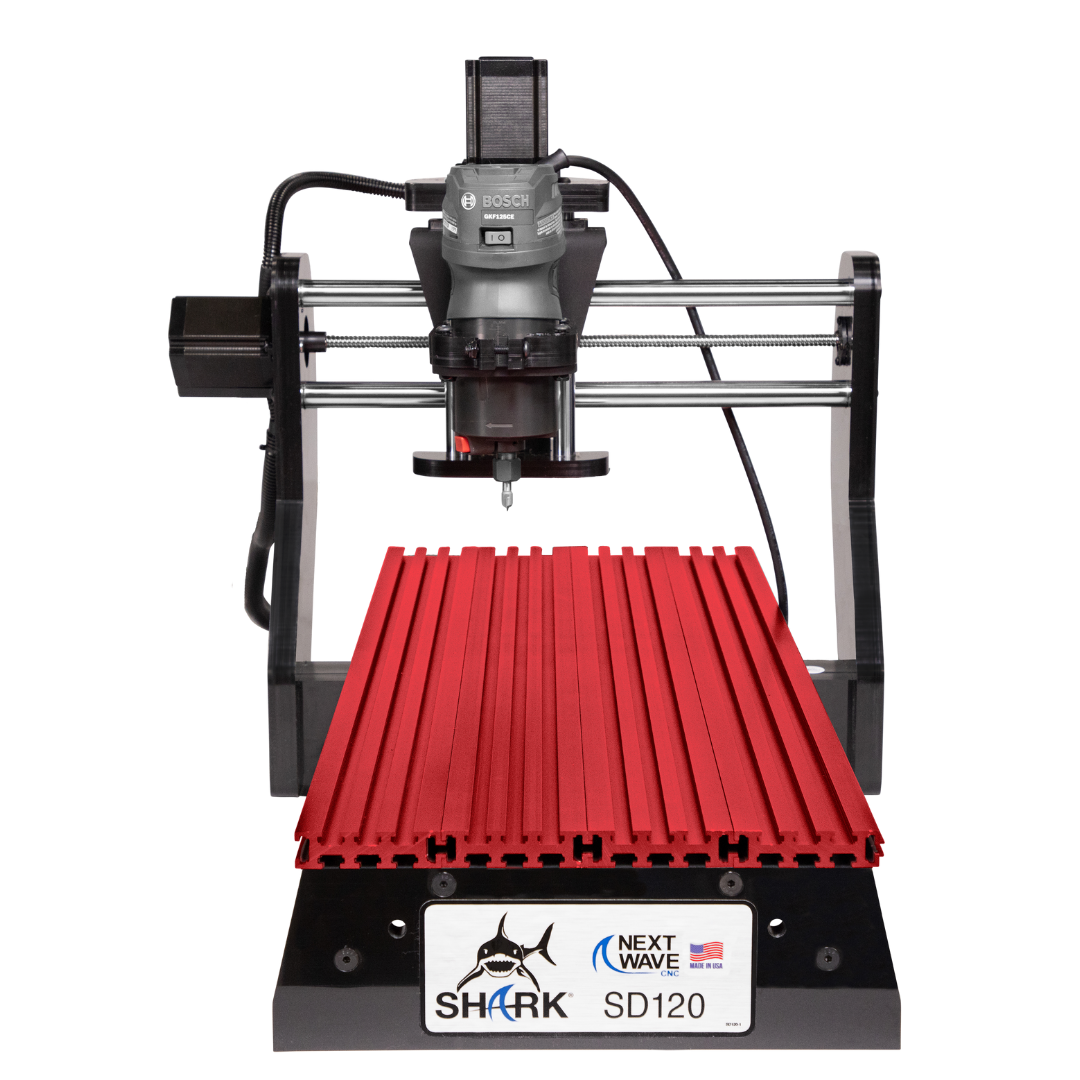

SHARK SD120

• Includes Vcarve Desktop Software • Aluminum InterLoc T-Slot Bed 12'' x 30" • XYZ travel: 12'' x 25'' x 4'' • Overall dimensions: 19-1/2''W x 30-1/2''L x 21''H • Compatible with SHARK 7-Watt Laser Shark SD120® is fully compatible with the following routers (sold separately): Bosch 1 HP Model PR20 | Dewalt 611 Porter Cable 450 or similar style palm router SKU 10014 $1,999.99

Purchase
Unique Features

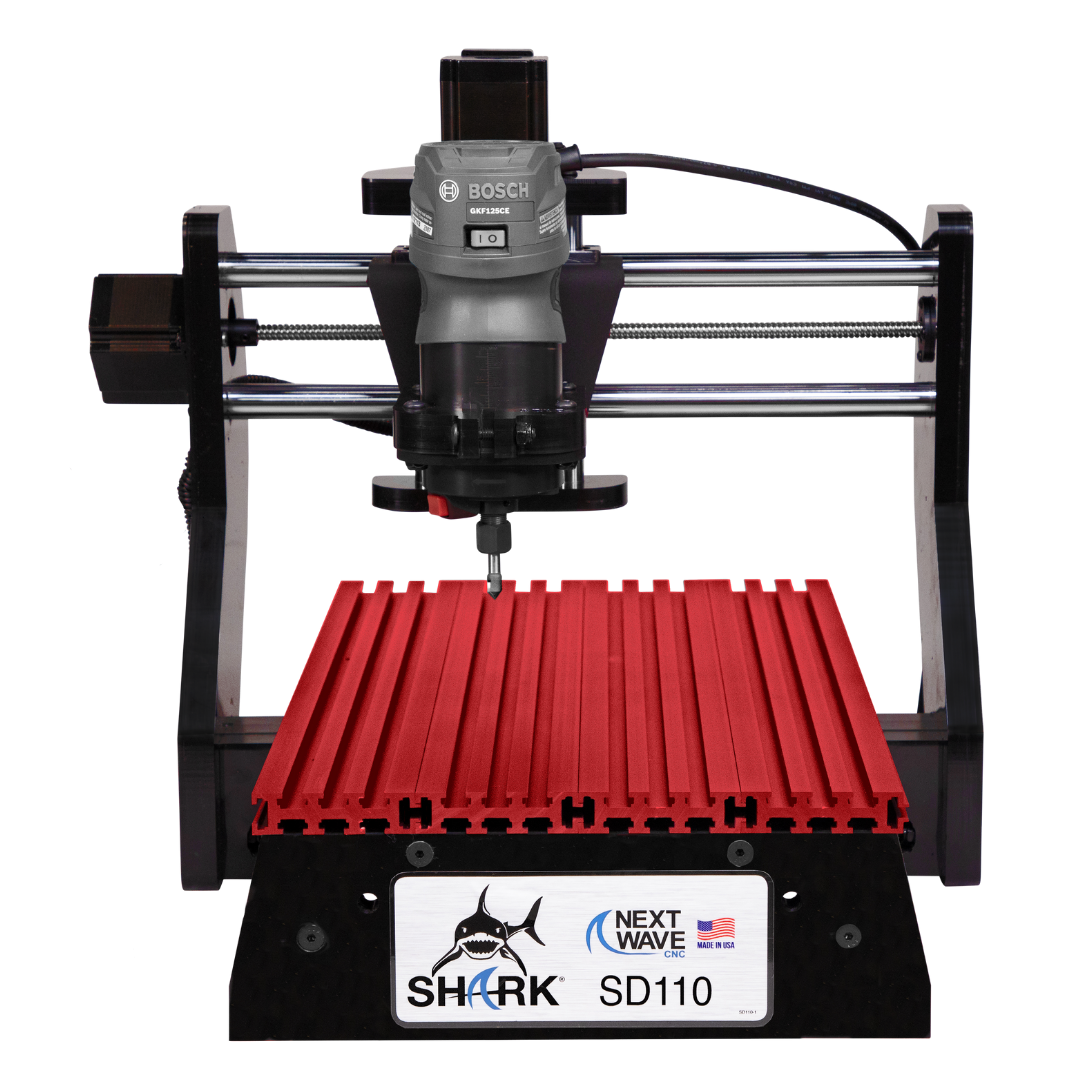

SHARK SD110

• Includes Vcarve Desktop Software • Aluminum InterLoc T-Slot Bed 12'' x 18" • XYZ travel: 12'' x 13'' x 3'' • Overall dimensions: 19-1/2''W x 20-1/2''L x 18''H Shark SD110® is fully compatible with the following routers (sold separately): Bosch 1 HP Model PR20 | Dewalt 611 | Porter Cable 450 or similar style palm router SKU 10001 $1,499.99

Purchase
Unique Features

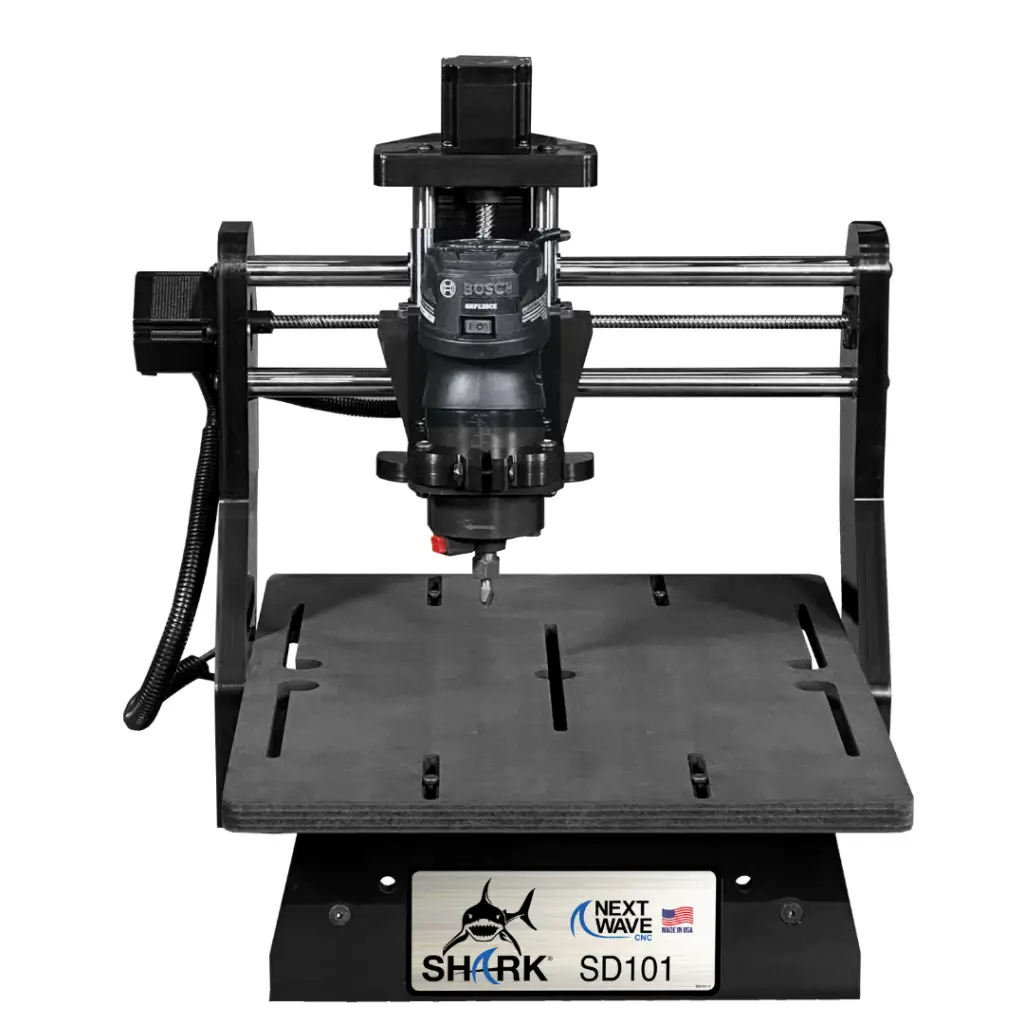

SHARK SD101 - NEW

• Includes Wizard CNC Made Easy App • Ready2Control Basic Software • All black 15'' x 21" MDF bed with t-slots • XYZ travel: 12'' x 13'' x 4'' • Overall dimensions: 19-1/2''W x 20-1/2''L x 18''H • 1 Year Warranty • Eligible for our Shark Swap program *LCD Color Touch Screen Pendant not included *Virtual Zero not included Shark SD101® is fully compatible with the following routers (sold separately): Bosch 1 HP Model PR20 | Dewalt 611 | Porter Cable 450 or similar style palm router SKU 10027 $799.99

Purchase
Unique Features

CNC Bed Comparisions
